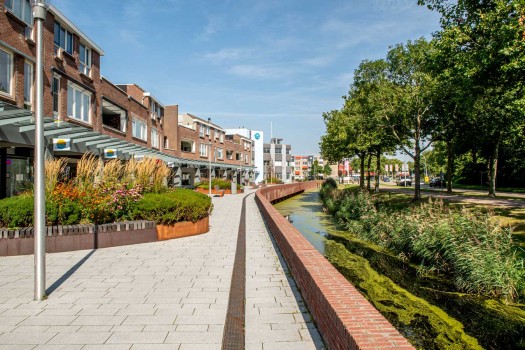

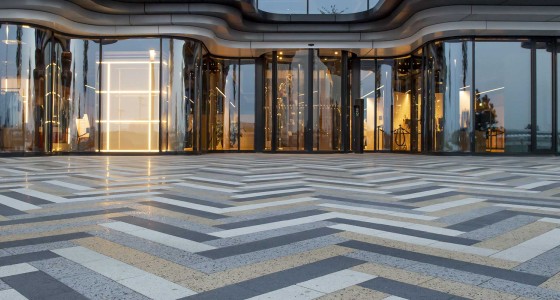

Danzigerkade, Amsterdam (NL), Boulevard Sonderfarben.
Amsterdam (NL), Danzigerkade, Boulevard special colours.

The paving system with ground surface.

Boulevard is a classic for the sophisticated design of public outdoor areas. Since its market launch, more than 1,000,000 sqare metres of this concrete paver, which is characterized by a finely ground matt silk finished surface, have been laid. The grinding brings out the carefully matched natural stone aggregates of European origin embedded in the material, such as basalt, granite, greywacke, porphyry or Rhine gravel. This selection of aggregates and thus of individual colouring of the stone is almost unlimited. A wide range of material thicknesses and sizes allows maximum design freedom in planning. Boulevard is slip-resistant (SRT tested), resistant to frost and de-icing salt, and can withstand high traffic loads, for example on market squares, bus stations or shopping streets. With optional BlueAir® technology, Boulevard can make an elegant contribution to reducing nitrogen oxides in the air.

Boulevard
Surfaces and Colours
Properties
Standard sizes
Object sizes
Gallery
References
Laying pattern
Video
Downloads

Surfaces

Boulevard is available with a ground, velvet or fine velvet surface. These different surface treatments result in a slightly different appearance, which we show using two colors as an example:

Grassano ground
Grassano ground
Grassano velved
Grassano velved
Grassano finely velved with CF 90
Grassano finely velved with CF 90
Nardo ground
Nardo ground
Nardo velvet
Nardo velvet
Nardo finely velved with CF 90
Nardo finely velved with CF 90

Boulevard offers an almost infinite number of design options - from homogeneous to small contrasting grains to coarse contrasting grains.

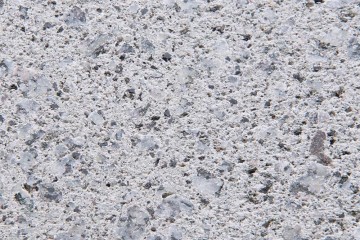

Colour overview

Finely granulated

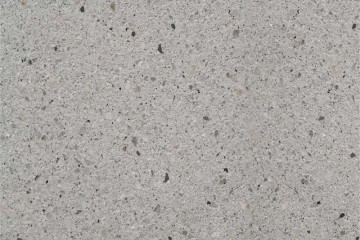

Mineral white
Mineral white

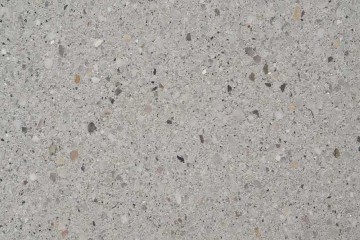

Colour 11.03
Colour 11.03

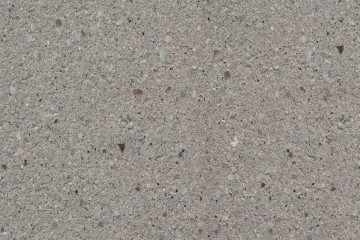

Objectcolour 2383
Objectcolour 2383

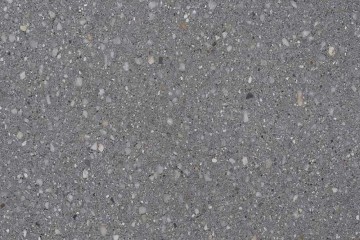

Colour 13.01
Colour 13.01

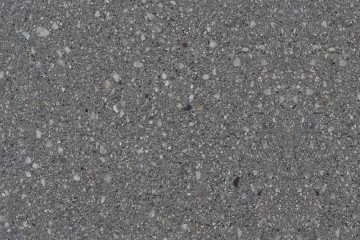

Colour 2385
Colour 2385
Ferrano
Ferrano

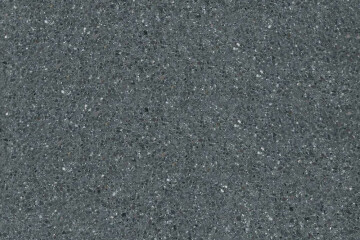

Finoverde
Finoverde
Nardo
Nardo

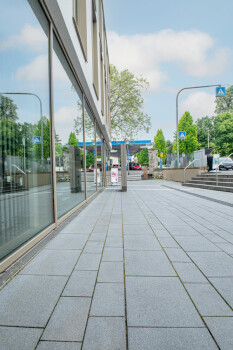

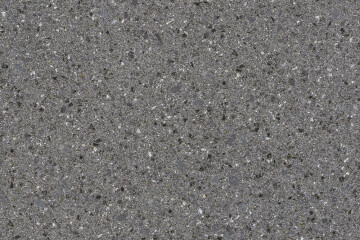

Basalt anthracite
Basalt anthracite
Silk beige
Silk beige

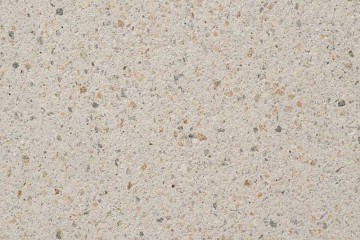

Objectcolour 4032
Objectcolour 4032

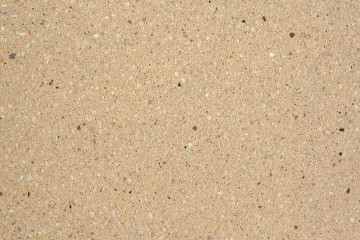

Ivory
Ivory

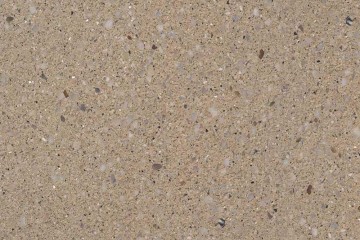

Objectcolour 2406
Objectcolour 2406

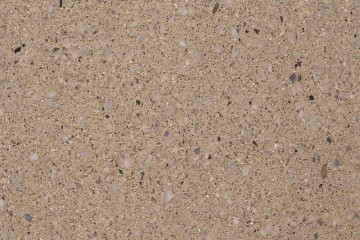

Objectcolour 2404
Objectcolour 2404

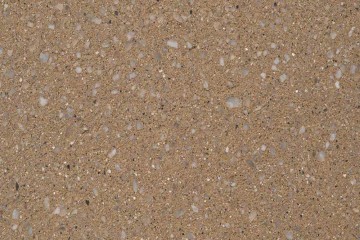

Colour 15.05
Colour 15.05

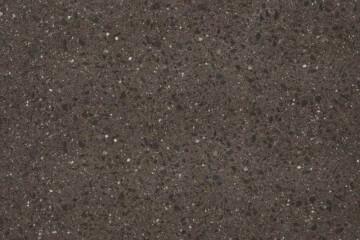

Objectcolour 3651
Objectcolour 3651

Contrast Grain

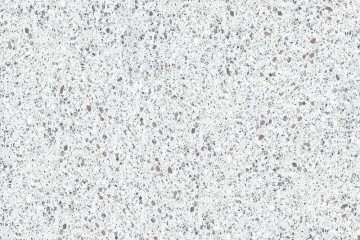

Bianco
Bianco
Mereno
Mereno

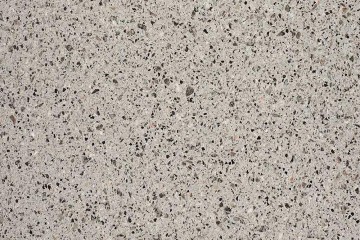

Silver grey
Silver grey
Light grey
Light grey

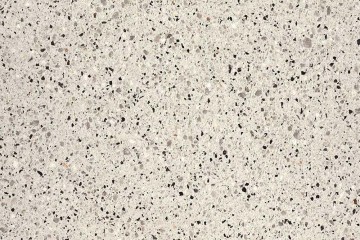

Quartz grey
Quartz grey

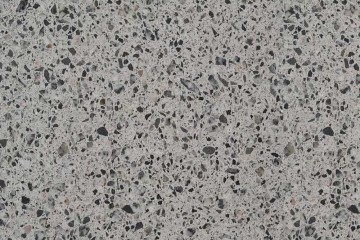

Objectcolour 3529
Objectcolour 3529

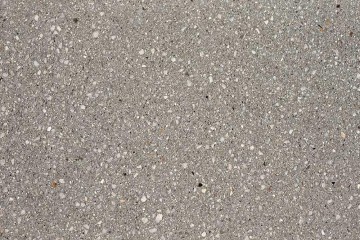

Palladium silver
Palladium silver

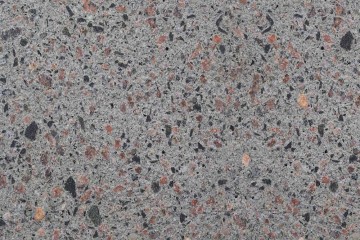

Lucca
Lucca

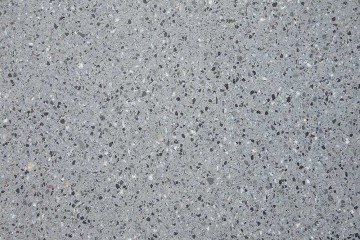

Pavona
Pavona
Diamond grey
Diamond grey
Marinello
Marinello

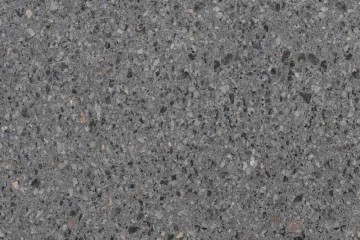

Objectcolour 3116
Objectcolour 3116
Titanium grey
Titanium grey

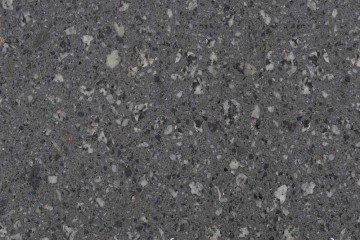

Trentino
Trentino

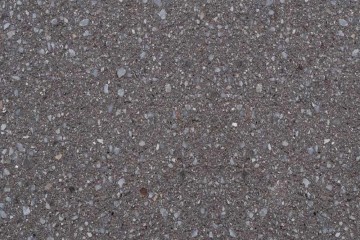

Objectcolour 2311
Objectcolour 2311

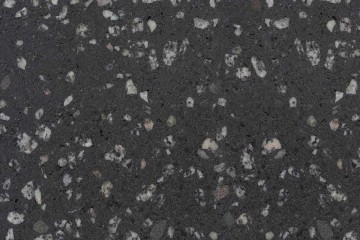

Bad Neuenahr
Bad Neuenahr

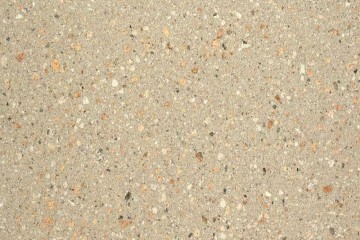

Grey yellow
Grey yellow

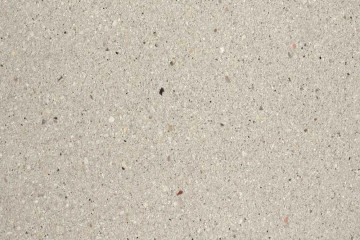

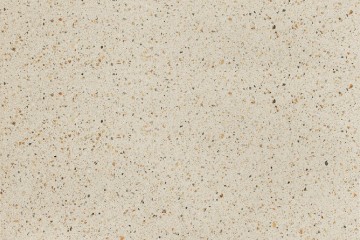

Sand beige
Sand beige

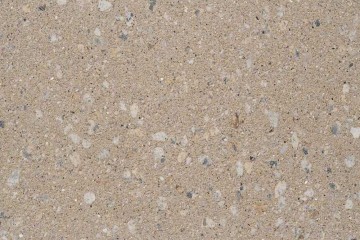

Objectcolour 4033
Objectcolour 4033

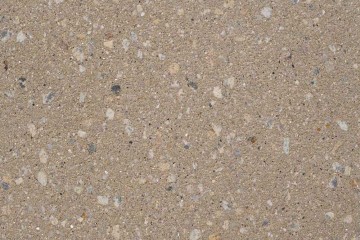

Objectcolour 4034
Objectcolour 4034

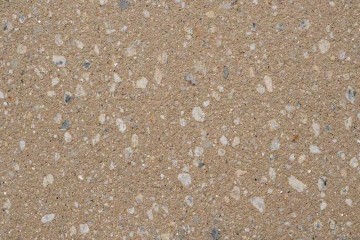

Objectcolour 4035
Objectcolour 4035

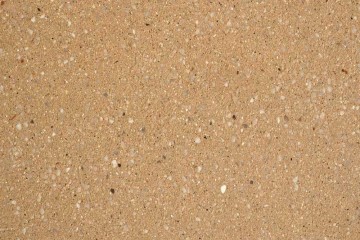

Sandstone
Sandstone
Amber
Amber

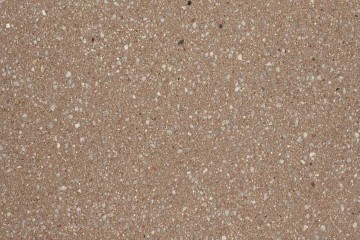

Ruby brown
Ruby brown

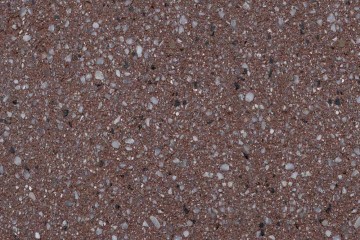

Objectcolour 2342
Objectcolour 2342

Large contrast grain

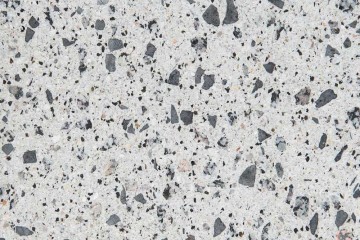

Objectcolour 4040
Objectcolour 4040

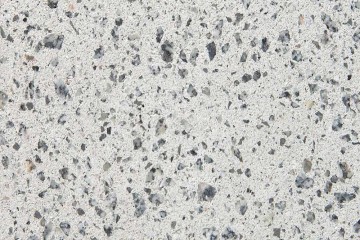

Vicenza
Vicenza

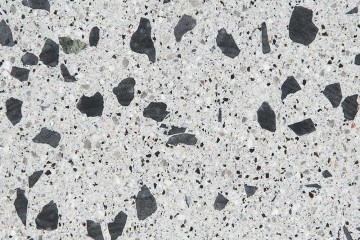

Objectcolour 4037
Objectcolour 4037
Colour 8582
Colour 8582

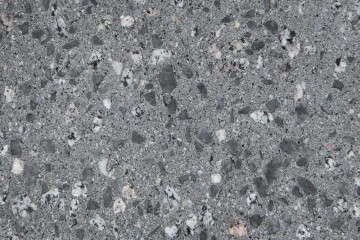

Objectcolour 4042
Objectcolour 4042
Colour 4041
Colour 4041

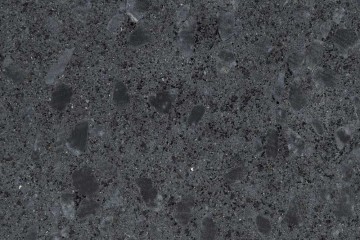

Objectcolour 4038
Objectcolour 4038

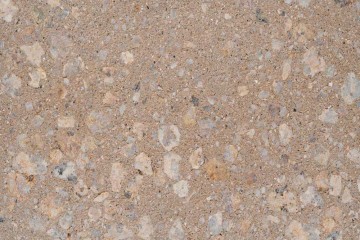

Objectcolour 4031
Objectcolour 4031

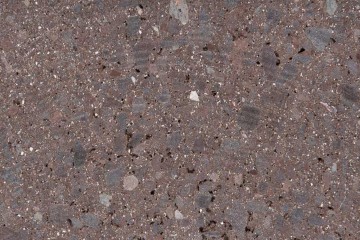

Objectcolour 4027
Objectcolour 4027

Coarse grain

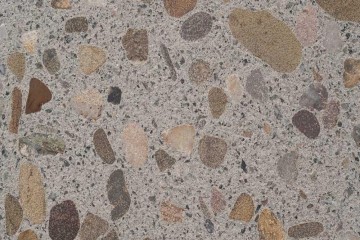

Objectcolour 8042
Objectcolour 8042
Rheinsandbeige
Rheinsandbeige

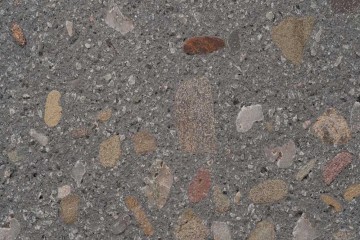

Objectcolour 2395
Objectcolour 2395
Objectcolour 8043
Objectcolour 8043

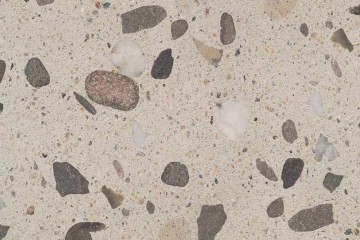

Objectcolour 8041
Objectcolour 8041

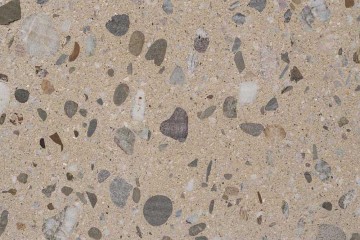

Objectcolour 4029
Objectcolour 4029

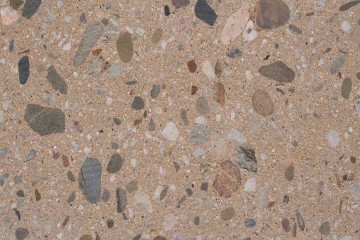

Objectcolour 4030
Objectcolour 4030

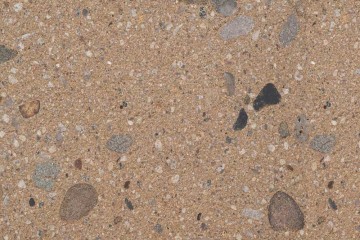

Objectcolour 2414
Objectcolour 2414

This is a selection of possible colours. Many additional colours are availabe on request.



Properties

  • Ground, velvety® or finely ground, velvety®, very dense surface.
  • High colour fastness due to selected, colour-matched natural stone chippings.
  • More than 500 different colour formulations available.
  • Frost and de-icing salt resistant. Fulfillment of the particularly strict Austrian standard.
  • Slip-resistant. At least 55 SRT units.
  • Climate-neutral production.
  • Unchamfered edges are part of Boulevard's special look.
  • Wide range of sizes. Stone thicknesses from 8 to 16 cm possible.
  • Special stone hardening process through climate controlled surface finishing.

CLEANTOP®-TECHNOLOGY (optional)

CleanTop® protection system with Clean Factor CF 90 (integral part of the production process):

  • Reduced dirt absorption.
  • Natural appearance combined with surface protection
  • Easier to clean compared to a product without CleanTop®.
  • Inhibits algae and moss.

CleanTop

BLUE AIR®-TECHNOLOGY (optional)

  • Photocatalytic process corresponding to the ideal of nature.
  • Reduction of harmful nitrogen oxides from the air and conversion into nitrates.
  • The process is active throughout the service life of the concrete stone.
  • The catalyst as such does not consume itself.

(BlueAir® is not available in combination with CleanTop®).

BlueAir

Standard sizes

PAVING SYSTEMLENGTH
in cm		Width in cmThickness
in cm		DINColoursAPPLICATIONS
Sand beige Light grey Anthracite basalt

 ICON Versickerungsleistung 30 15 8 DIN EN 1338 KDI   • • Eigenschaften

 60 30 8 DIN EN 1339 PKDUI • • •

 60 60 8 DIN EN 1339 PKDUI   • •

 50* 15 8 DIN EN 1338 KDI     • Eigenschaften

 100* 50 8 DIN EN 1338 KDI   • •

* For drive-on areas laid with Boulevard Grande 100 x 50 cm, we recommend laying in third bond. All dimensions given are grid dimensions including spacers and joint proportion.
All dimensions given are grid dimensions including spacers and joint proportion.

Object sizes

without bevel edge:

PlansizeNominal sizeDIN EN Classification
50 x 25 x 6 494,5 x 244,5 x 60 DIN EN 1339 PKDUI 4
50 x 50 x 6 494,5 x 494,5 x 60 DIN EN 1339 PKDUI 11

15 x 15 x 8 144 x 144 x 80 DIN EN 1338 KDI
20 x 15 x 8 197 x 147 x 80 DIN EN 1338 KDI
20 x 20 x 8 194,5 x 194,5 x 80 DIN EN 1338 KDI
30 x 15 x 8* 294,5 x 144,5 x 80 DIN EN 1338 KDI
30 x 20 x 8 294,5 x 194,5 x 80 DIN EN 1338 KDI
30 x 30 x 8* 294,5 x 294,5 x 80 DIN EN 1338 KDI
40 x 20 x 8 396 x 196 x 80 DIN EN 1339 PKDUI 14
40 x 40 x 8 394,5 x 394,5 x 80 DIN EN 1339 PKDUI 25
50 x 15 x 8* 494,5 x 144,5 x 80 DIN EN 1339 PKDUI 7
50 x 25 x 8 494,5 x 244,5 x 80 DIN EN 1339 PKDUI 11
50 x 50 x 8 494,5 x 494,5 x 80 DIN EN 1339 PKDUI 25
60 x 30 x 8* 594,5 x 294,5 x 80 DIN EN 1339 PKDUI 11
60 x 40 x 8 594,5 x 394,5 x 80 DIN EN 1339 PKDUI 14
60 x 60 x 8* 594,5 x 594,5 x 80 DIN EN 1339 PKDUI 25
100 x 50 x 8 994,5 x 494,5 x 80 DIN EN 1339 PKDUI 11
100 x 59 x 8 994,5 x 584,5 x 80 DIN EN 1339 PKDUI 14

15 x 15 x 10 144 x 144 x 100 DIN EN 1338 KDI
24 x 24 x 10 234,5 x 234,5 x 100 DIN EN 1338 KDI
30 x 15 x 10 294 x 144 x 100 DIN EN 1338 KDI
30 x 30 x 10 294 x 294 x 100 DIN EN 1338 KDI
60 x 30 x 10 594,5 x 294,5 x 100 DIN EN 1339 PKDUI 14
60 x 60 x 10 594,5 x 594,5 x 100 DIN EN 1339 PKDUI 30

20 x 10 x 12 194,5 x 94,5 x 120 DIN EN 1338 KDI
20 x 15 x 12 194,5 x 144,5 x 120 DIN EN 1338 KDI
20 x 20 x 12 194 x 194 x 120 DIN EN 1338 KDI
22,5 x 15 x 12 219,5 x 144,5 x 120 DIN EN 1338 KDI
22,5 x 22,5 x 12 219,5 x 219,5 x 120 DIN EN 1338 KDI
30 x 15 x 12 294,5 x 144,5 x 120 DIN EN 1338 KDI
30 x 20 x 12 294 x 194 x 120 DIN EN 1338 KDI
30 x 30 x 12 294 x 294 x 120 DIN EN 1338 KDI
40 x 15 x 12 394,5 x 144,5 x 120 DIN EN 1338 KDI
40 x 20 x 12 394,5 x 194,5 x 120 DIN EN 1338 KDI
40 x 40 x 12 394,5 x 394,5 x 120 DIN EN 1338 KDI
45 x 30 x 12 444,5 x 294,5 x 120 DIN EN 1338 KDI
60 x 30 x 12 594,5 x 294,5 x 120 DIN EN 1339 PKDUI 25
60 x 40 x 12 594,5 x 394,5 x 120 DIN EN 1339 PKDUI 30
90 x 45 x 12 894,5 x 444,5 x 120 DIN EN 1339 PKDUI 25
100 x 59 x 12 994,5 x 584,5 x 120 DIN EN 1339 PKDUI 30

20 x 15 x 14 194 x 144 x 140 DIN EN 1338 KDI
30 x 15 x 14 294,5 x 144,5 x 140 DIN EN 1338 KDI
30 x 30 x 14 294,5 x 294,5 x 140 DIN EN 1338 KDI
40 x 20 x 14 394,5 x 194,5 x 140 DIN EN 1338 KDI
40 x 40 x 14 394,5 x 394,5 x 140 DIN EN 1338 KDI
60 x 30 x 14 594,5 x 294,5 x 140 DIN EN 1339 PKDUI 30
60 x 40 x 14 594,5 x 394,5 x 140 DIN EN 1339 PKDUI 30
60 x 60 x 14 594,5 x 594,5 x 140 DIN EN 1339 PKDUI 30
100 x 50 x 14 994,5 x 494,5 x 140 DIN EN 1339 PKDUI 30

30 x 15 x 16 294 x 144 x 160 DIN EN 1338 KDI
40 x 20 x 16 394,5 x 194,5 x 160 DIN EN 1338 KDI
60 x 30 x 16 594,5 x 294,5 x 160 DIN EN 1338 KDI
60 x 40 x 16 594,5 x 394,5 x 160 DIN EN 1338 KDI
60 x 60 x 16 594 x 594 x 160 DIN EN 1338 KDI
80 x 40 x 16 794,5 x 394,5 x 160 DIN EN 1339 PKDUI 30



*stock-run products.
Regarding the minimum quantities for object formats (no extra cost) and the combination of sizes please contact us.
All dimensions given are grid dimensions including spacers and joint proportion.

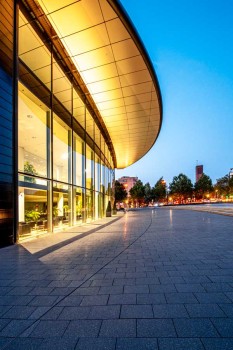

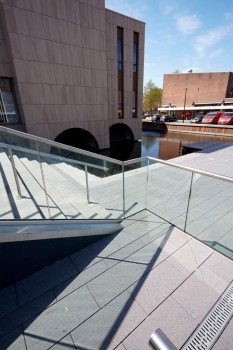

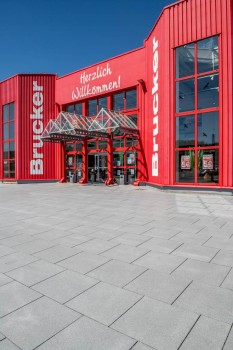

Gallery

References

Privatobjekt Braunschweig Header
Privatgarten in Braunschweig
 Me 2393 Strandpromenade Kiel Heikendorf 006
Strandpromenade, Kiel
 Me 2474 Danzigerkade Houthavens Amsterdam Boulevard LaLinia 131 ret
Danzigerkade Houthavens Amsterdam Netherlands
 Boulevard Header
ARAG Platz Düsseldorf
 Boulevard Sandbeige Header

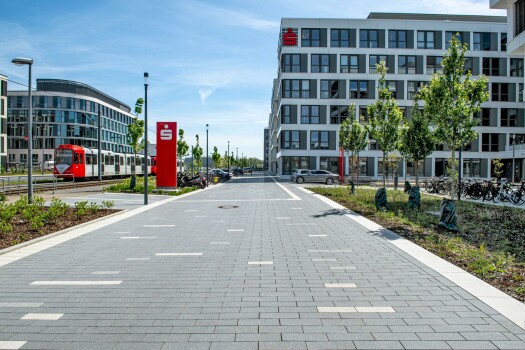

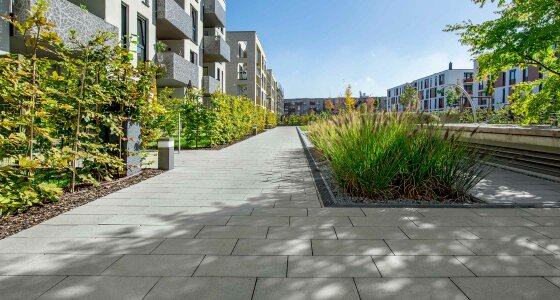

Wohnquartier Clouthgelände Köln
 ConceptDesign Platten 2097 0077

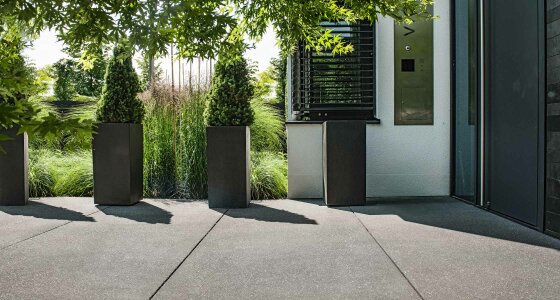

Privatobjekt, Münster
 Neutorplatz Dinslaken 2231 2275

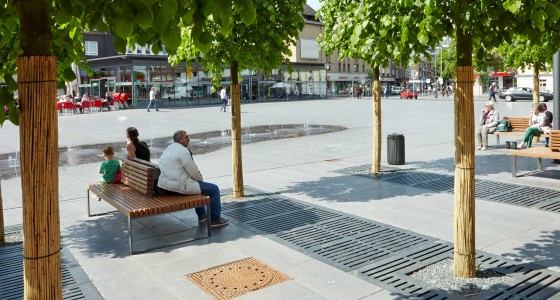

Neutorplatz, Dinslaken
 Me502ColoneumMMCKoeln020ret
MMC Magic Media Company, Köln

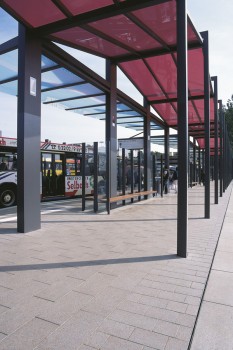

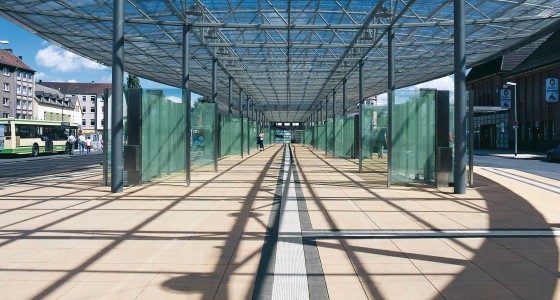

 MeOmnibus BahnhofHerne417
Zentraler Omnibus Bahnhof, Herne
 jb09242meboul782
ROC, Nijmegen Niederlande
 Boulevard Pflasterstein Rubensplein Knokke Header
Rubens-Plein Knokke, Belgien
 jb02090me011megrass

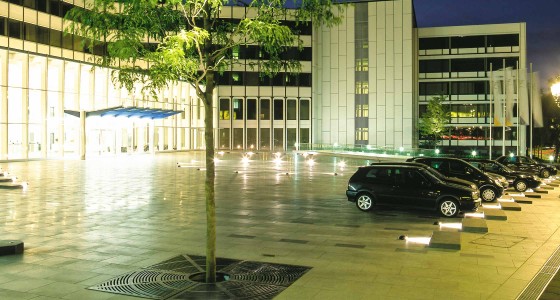

E.ON Ruhrgas AG, Essen
 jb05203sdboulevard

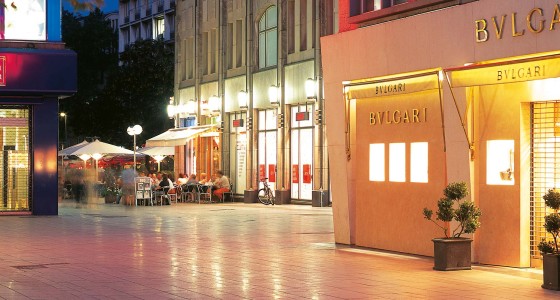

Wallrafplatz, Köln
 MeSchlossstrasseMuelheimjb02155

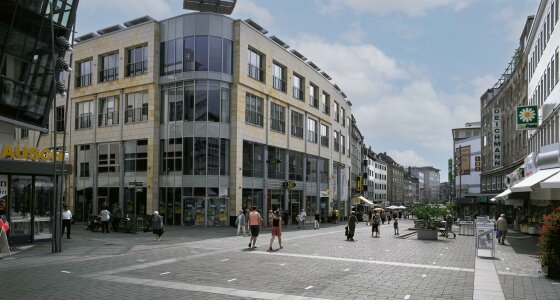

Schlossstraße, Mülheim an der Ruhr
 Willi Pohlmann Platz Header
Willi-Pohlmann-Platz, Herne
 Werkbericht Opernbouevard Header

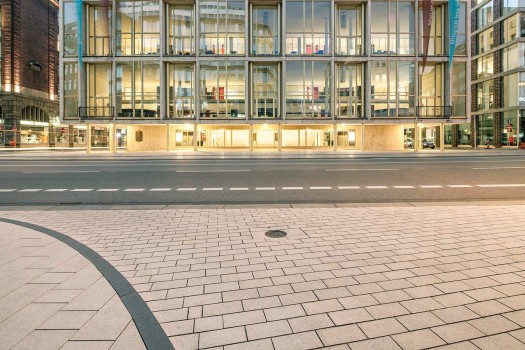

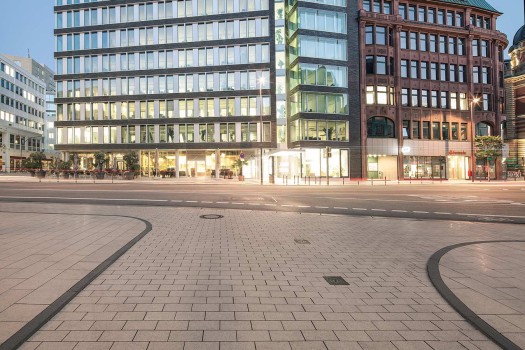

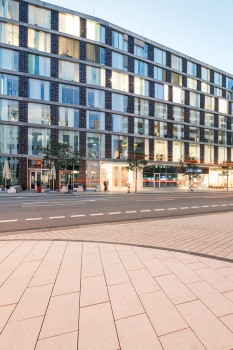

Opernboulevard, Hamburg
 Boulevard Header Zentralplatz Koblenz
Zentralplatz, Koblenz
 Me2024FussgaengerzoneBGL499
Fußgängerzone, Bergisch Gladbach
 Me1001KraftwerksschuleEssen6083
Kraftwerksschule, Essen
 Me799PorschezentrumDortmund4

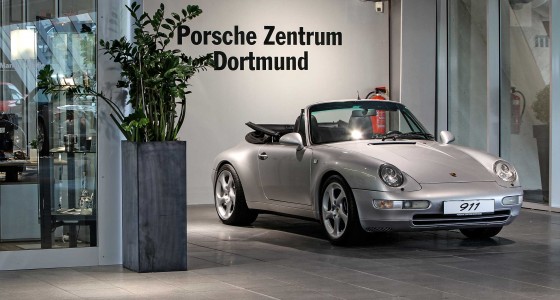

Porsche Zentrum, Dortmund
 Me2016HBMSchwalmstadt002
HBM, Schwalmstadt

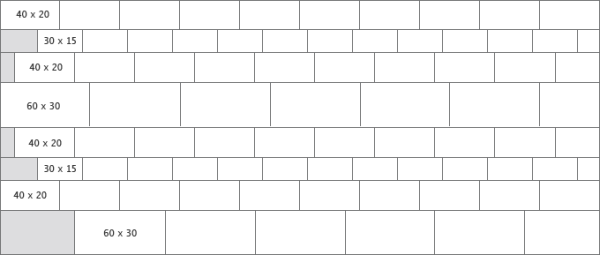

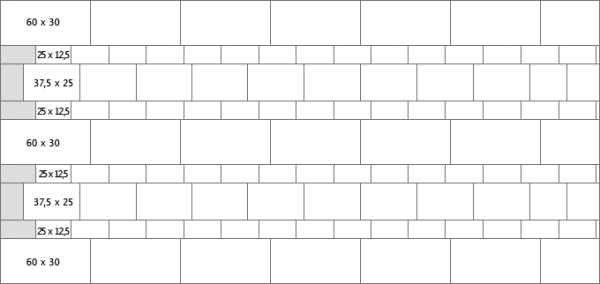

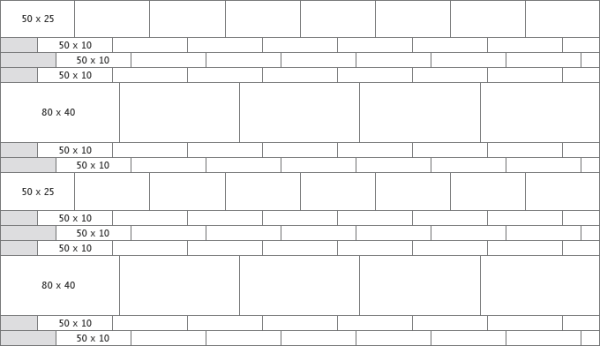

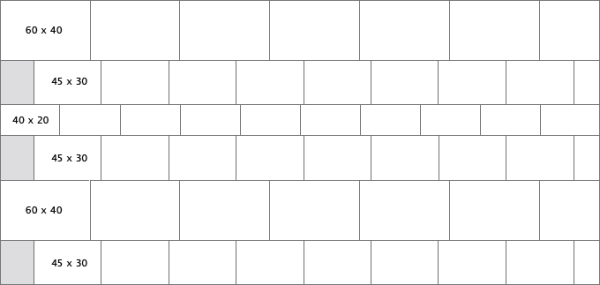

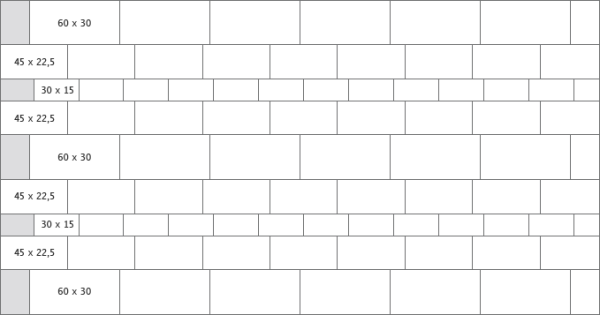

Laying pattern calculator

Boulevard Pattern 01
PATTERN 01
Boulevard Pattern 01

Pattern 01

Number of units per m²:

a) 30 x 15 cm approx. 22.2 units
b) 60 x 30 cm approx. 5,6 units

m²
units
units
Boulevard Pattern 02
PATTERN 02
Boulevard Pattern 02

Pattern 02

Number of units per m²:
a) 30 x 15 cm approx. 22.2 units

b) 60 x 30 cm approx. 5,6 units

m²
units
units
Boulevard Pattern 04
PATTERN 04
Boulevard Pattern 04

Pattern 04

Arrangement in rows with 30 x 30 cm (e.g. Grassano) and 30 x 15 cm (e.g. Nardo).

Boulevard Pattern 06
PATTERN 06
Boulevard Pattern 06

Pattern 06

Number of units per m²:
60 x 60 cm approx. 2,8 units

m²
units
Boulevard Pattern 41
PATTERN 41
Boulevard Pattern 41

Pattern 41

Arrangement in rows
30 x 30 cm
30 x 15 cm
15 x 15 cm
(must be cut to size on site)

Boulevard Pattern 42
PATTERN 42
Boulevard Pattern 42

Pattern 42

Arrangement in rows
30 x 30 cm
30 x 15 cm
15 x 15 cm
(must be cut to size on site)

Boulevard Pattern 43
PATTERN 43
Boulevard Pattern 43

Pattern 43

Arrangement in rows
30 x 60 cm
30 x 15 cm

Boulevard Pattern 44
PATTERN 44
Boulevard Pattern 44

Pattern 44

1/3 Arrangement in rows
30 x 15 cm

Boulevard Pattern 45
PATTERN 45
Boulevard Pattern 45

Pattern 45

1/2 Arrangement in rows
30 x 15 cm

The quantity of vertical bond depends on the structural situation.
Laying patterns and hatching are available on request.
