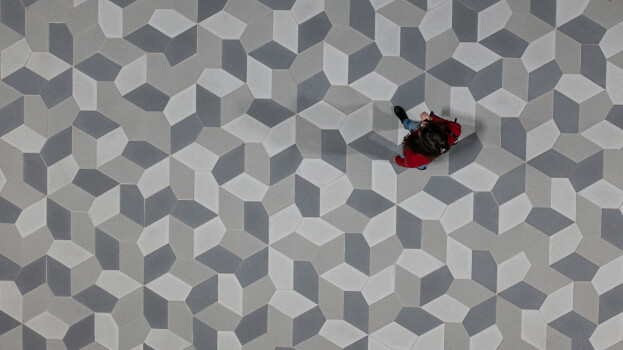

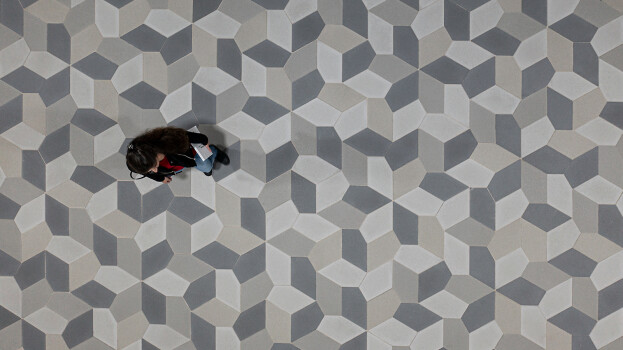

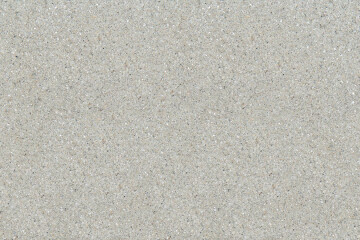

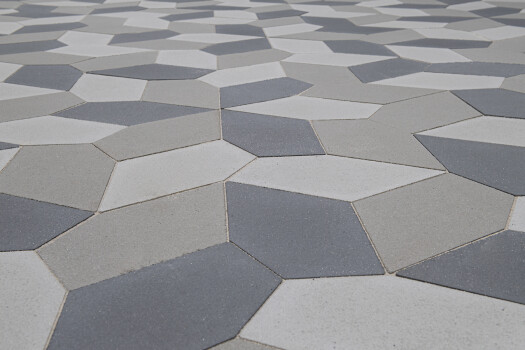

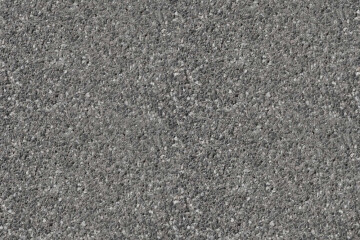

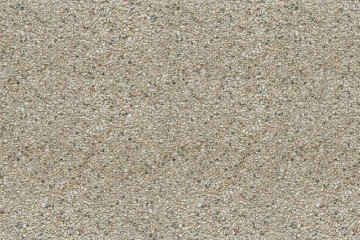

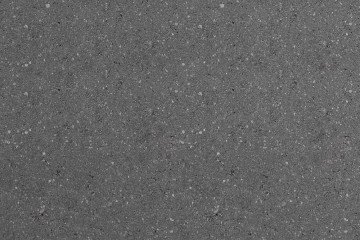

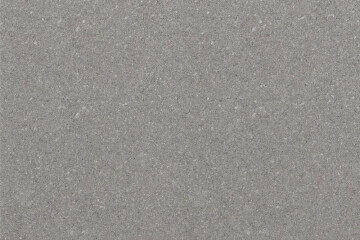

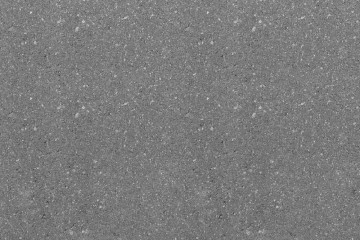

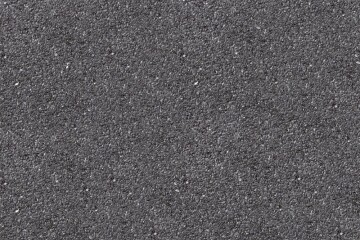

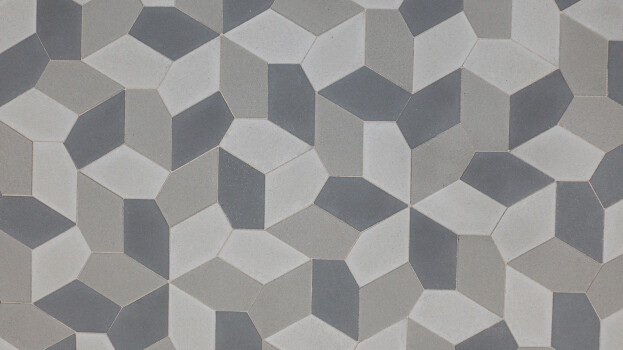

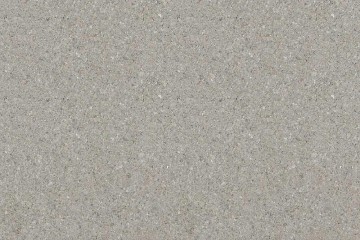

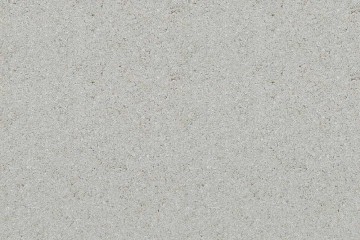

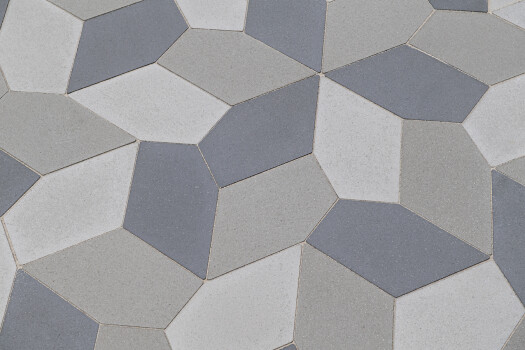

A homogeneous, elegant surface with fine mica. A purist, untreated concrete block for public spaces. Monochrome colors, clear contours, and five corners guarantee outstanding design possibilities. Corpus impresses not only with its highly compacted architectural concrete surface, but also with its ornamental appearance. The colors are coordinated and can be combined with each other, allowing you to create a color scheme that matches the surroundings.
CleanTop® protection system with Clean Factor CF 90 (integral part of the production process):
| PAVING STONE | DIN | ||||
|---|---|---|---|---|---|
|
DIN EN 1339 PKDUI | ||||
| We recommend cutting the curbstones on site. We also offer a curbstone insert on request. We will be happy to provide you with an AutoCAD hatch pattern for the laying pattern. All dimensions given are grid dimensions including spacers and joints. |
|||||
For more information please contact us.
DIN EN 1339 PKDUI
| PLANSIZE | approx. pieces per m² | Piece per length | m² per layer | weight approx. kg per m² | calculation unit |
|---|---|---|---|---|---|
| 28,0 x 16,2 x 16,2 x 28,0 x 28,30 cm thickness: 8 cm total length: 42,0 cm total width: 24,2 cm 410,9 x 238,5 x 80 |
12,62 | 12 | 0,95 | 180 | m² |
CORPUS calculator - enter the length and width of the area to be paved:

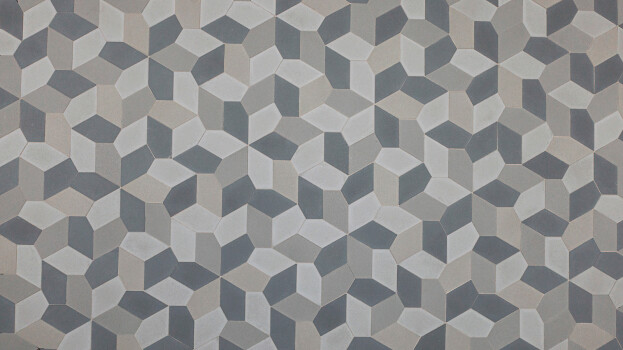

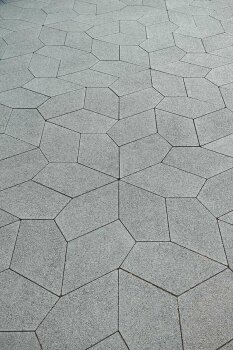

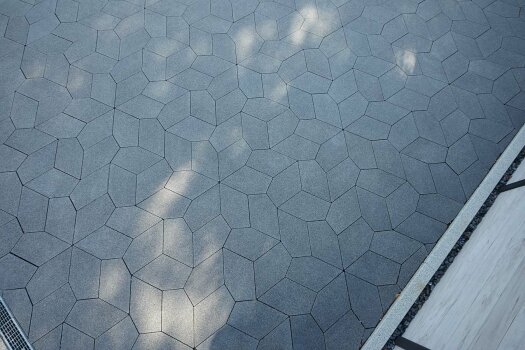

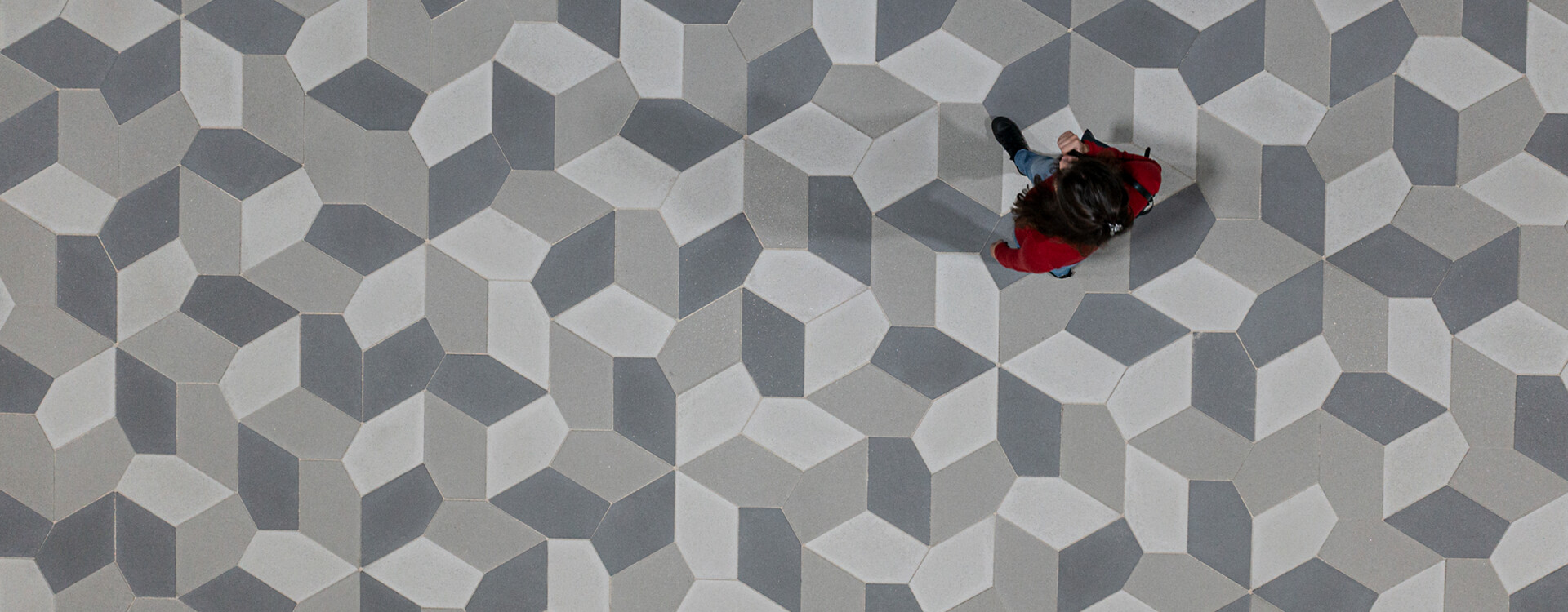

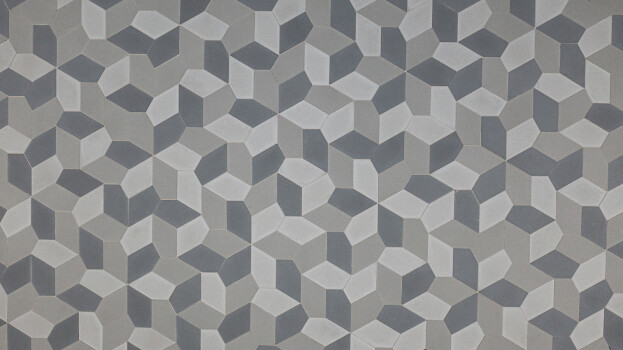

The Corpus laying principle is based on a recurring pattern of 18 stones, which are arranged in rows offset by a grid dimension of 24.25 cm with a minimum width of 48.5 cm. The stones are delivered in layers, with 1 layer containing 12 pieces for approx. 0.95 m². Five different shapes of edging stones are available for the edges on the long sides of the area, which are laid in a specific order to match the pattern. One sequence (until the sequence of edging stones in the pattern repeats) results in an edge of 5.88 m and consists of 1.5 layers. Border stones are delivered in layers of 10 pieces, which corresponds to an area of approx. 0.64 m² and an average edge length of 3.92 m or 2 x 1.96 (both long sides of an area). Exception: for area lengths of less than 1.40 m, an additional layer of border stones is required, as certain stones occur more than twice in this layer. The starting and ending stones must be cut to size on site. If a specific width outside the grid dimension is desired, all edges can also be cut to size on site. Please note that for technical reasons, stones and curbstones may remain. These cannot be returned.
