EcoTerra. The sustainable concrete stone.
EcoTerra. The sustainable concrete stone.

The first.* 100 % cement-free.

In the beginning, the completely cement-free stone was nothing more than an idea. The base receipe of concrete has simply always consisted of cement, water, sand and gravel. Through many years of extensive development, METTEN has turned the idea into a unique technology and applied for a patent, which will change the concrete stone.

The procuction of cement is very energy-intensive. The less of it we need, the more climate-friendly become our stones.  A concrete stone with EcoTerra® technology reduces raw material-related CO2 emissions up to 75 % per square meter. The use of recycled raw materials and climate-neutral production further improve the carbon footprint.

*The face layer and the base layer are completely cement-free.

Corio EcoTerra
Colours
Properties
Standard sizes
Object sizes
Gallery
Editions
CDFarben
References
Laying pattern calculator
Verlegehinweise
Downloads
Links
Dealers

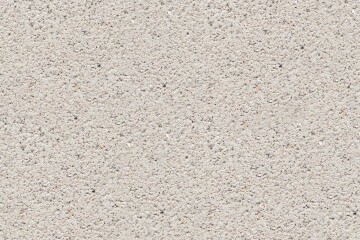

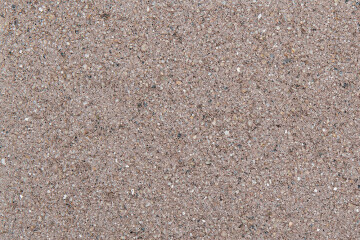

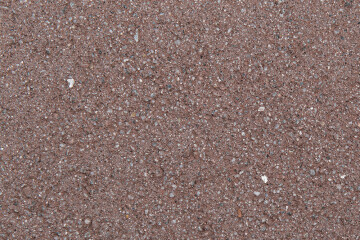

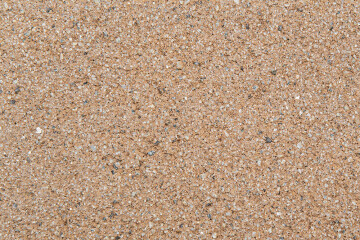

Colours

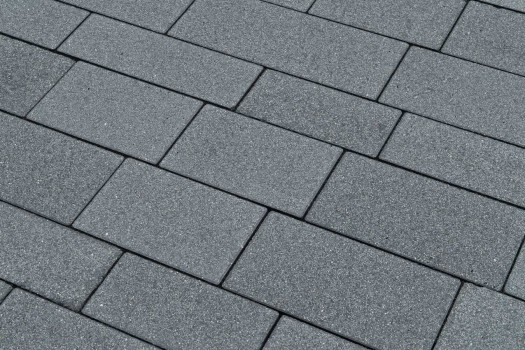

Anthracite
Anthracite

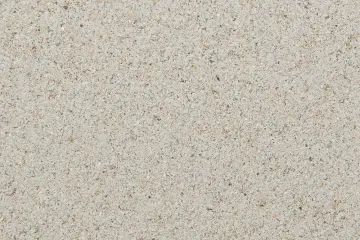

Beige
Beige
Objectcolour 2963
Objectcolour 2963
Objectcolour 8024
Objectcolour 8024
Objectcolour 8026
Objectcolour 8026
Objectcolour 8015
Objectcolour 8015

Properties

  • Free from lime efflorescence (when professional processed).
  • Frost and de-icing salt resistant.
  • Stone hardening process through climate-controlled surface finishing.
  • Awarded with renowned design prizes.

EcoTerra®-Technology

(optional)

  • 100 % cement-free.
  • Reduction of raw material-related CO2-emissions up to 75 % per sqm.
  • Free from lime efflorescence (when professional laid).
  • Very high colour fastness.
  • Especially resource-efficient winning of raw materials u.a. from recycling materials.
  • Patent pending.

CleanTop® Technology

CleanTop® protection system with Clean Factor CF 90 (integral part of the production process):

  • Reduced dirt absorption.
  • Natural look combined with surface protection.
  • Easier to clean compared to a product without CleanTop®.
  • Algae and moss inhibiting.

Blue Air® Technology

(optional)

  • Photocatalytic process corresponding to the ideal of nature.
  • Reduction of harmful nitrogen oxides from the air and conversion into nitrates.
  • The process is active throughout the service life of the concrete stone.
  • The catalyst does not consume itself.

Standard sizes

Filter:

Pavers

30 x 15 x 6 cm
Anthracite
Properties analogous DIN EN 1338 KDI bzw. DIN EN 1339 PKDUI
permeable to water
drivable
40 x 20 x 8 cm
Anthracite
Properties analogous DIN EN 1339 PKDUI 14
permeable to water
drivable
50 x 25 x 8 cm
AnthraciteBeige
Properties analogous DIN EN 1339 PKDUI 11
permeable to water
drivable

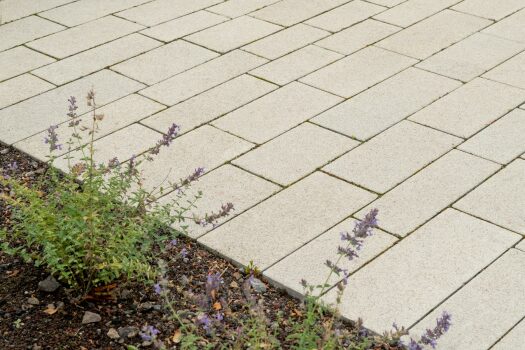

Running bond

Corio Kombiform v1
Reihenverband 8 cm
AnthraciteBeige
permeable to water
drivable

Corio running bond is delivered in layers.
One layer contains
2 units 40 x 16 x 8 cm, Properties analogous DIN EN 1339 PKDUI
2 units 35 x 16 x 8 cm, Properties analogous DIN EN 1339 PKDUI
6 units 30 x 16 x 8 cm, Properties analogous DIN EN 1338 KDI
6 units 25 x 16 x 8 cm, Properties analogous DIN EN 1338 KDI
6 units 35 x 12 x 8 cm, Properties analogous DIN EN 1339 PKDUI
6 units 25 x 12 x 8 cm, Properties analogous DIN EN 1338 KDI
1 layer = 1,20 m2

Here you will find a laying aid for the Corio running bond.

Object sizes

Without bevel edge

Plansizenominal sizeProperties analogous DIN EN Classification
30 x 15 x 6 *296 x 146 x 60DIN EN 1338 KDI bzw. DIN EN 1339 PKDUI


Bevel edge

Plansizenominal sizeProperties analogous DIN EN Classification
80 x 40 x 5 796 x 396 x 50DIN EN 1339 PKDUI 3

20 x 15 x 8 196,5 x 146,5 x 80DIN EN 1338 KDI
20 x 20 x 8 194,5 x 194,5 x 80DIN EN 1338 KDI
30 x 15 x 8 294,5 x 144,5 x 80DIN EN 1339 PKDUI
30 x 20 x 8 296,5 x 196,5 x 80DIN EN 1338 KDI
30 x 30 x 8 296,5 x 296,5 x 80DIN EN 1338 KDI
37,5 x 12,5 x 8 371 x 121 x 80DIN EN 1339 PKDUI 7
37,5 x 25 x 8 371 x 246 x 80DIN EN 1339 PKDUI 14
40 x 20 x 8 *396 x 196 x 80DIN EN 1339 PKDUI 14
50 x 25 x 8 *496 x 246 x 80DIN EN 1339 PKDUI 11
60 x 30 x 8 596 x 296 x 80DIN EN 1339 PKDUI 11
80 x 40 x 8 796 x 396 x 80DIN EN 1339 PKDUI 11
80 x 80 x 8 796 x 796 x 80DIN EN 1339 PKDUI 14

15 x 15 x 10 144 x 144 x 100DIN EN 1338 KDI
30 x 15 x 10 294 x 144 x 100DIN EN 1338 KDI
30 x 30 x 10 294 x 294 x 100DIN EN 1338 KDI
60 x 30 x 10 594,5 x 294,5 x 100DIN EN 1339 PKDUI 14
60 x 60 x 10 594,5 x 594,5 x 100DIN EN 1339 PKDUI 30

15 x 15 x 12 144,5 x 144,5 x 120DIN EN 1338 KDI
20 x 15 x 12 194,5 x 144,5 x 120DIN EN 1338 KDI
20 x 20 x 12 194 x 194 x 120DIN EN 1338 KDI
22,5 x 15 x 12 219,5 x 144,5 x 120DIN EN 1338 KDI
22,5 x 22,5 x 12 219,5 x 219,5 x 120DIN EN 1338 KDI
30 x 15 x 12 294,5 x 144,5 x 120DIN EN 1338 KDI
30 x 20 x 12 294,5 x 194,5 x 120DIN EN 1338 KDI
40 x 20 x 12 394,5 x 194,5 x 120DIN EN 1338 KDI
40 x 40 x 12 394,5 x 394,5 x 120DIN EN 1338 KDI
45 x 30 x 12 444,5 x 294,5 x 120DIN EN 1338 KDI
50 x 25 x 12 494,5 x 244,5 x 120DIN EN 1339 PKDUI 30
60 x 40 x 12 594,5 x 394,5 x 120DIN EN 1339 PKDUI 30
90 x 45 x 12 894,5 x 444,5 x 120DIN EN 1339 PKDUI 25

20 x 15 x 14 194,5 x 144,5 x 140DIN EN 1338 KDI
30 x 15 x 14 294 x 144 x 140DIN EN 1338 KDI
30 x 30 x 14 294,5 x 294,5 x 140DIN EN 1338 KDI
40 x 20 x 14 394,5 x 194,5 x 140DIN EN 1338 KDI
60 x 30 x 14 594,5 x 294,5 x 140DIN EN 1339 PKDUI 30
60 x 40 x 14 594,5 x 394,5 x 140DIN EN 1339 PKDUI 30
60 x 60 x 14 594,5 x 594,5 x 140DIN EN 1339 PKDUI 30
90 x 90 x 14 894 x 894 x 140DIN EN 1339 PKDUI 30

30 x 15 x 16 295 x 145 x 160DIN EN 1338 KDI
40 x 20 x 16 394,5 x 194,5 x 160DIN EN 1338 KDI
50 x 10 x 16 494,5 x 94,5 x 160 DIN EN 1338 KDI
60 x 30 x 16 594,5 x 294,5 x 160DIN EN 1338 KDI
60 x 60 x 16 594 x 594 x 160DIN EN 1338 KDI
80 x 40 x 16 794,5 x 394,5 x 160DIN EN 1339 PKDUI 30

40 x 20 x 18 394 x 194 x 180DIN EN 1338 KDI
60 x 40 x 18 594 x 394 x 180DIN EN 1338 KDI
80 x 60 x 18 794 x 594 x 180DIN EN 1339 PKDUI 30


Running bond

Corio Kombiform v1
Reihenverband 8 cm
AnthraciteBeige
permeable to water
drivable

Corio running bond is delivered in layers.
One layer contains
2 units 40 x 16 x 8 cm, Properties analogous DIN EN 1339 PKDUI
2 units 35 x 16 x 8 cm, Properties analogous DIN EN 1339 PKDUI
6 units 30 x 16 x 8 cm, Properties analogous DIN EN 1338 KDI
6 units 25 x 16 x 8 cm, Properties analogous DIN EN 1338 KDI
6 units 35 x 12 x 8 cm, Properties analogous DIN EN 1339 PKDUI
6 units 25 x 12 x 8 cm, Properties analogous DIN EN 1338 KDI
1 layer = 1,20 m2

Here you will find a laying aid for the Corio running bond.

*stock-run products.

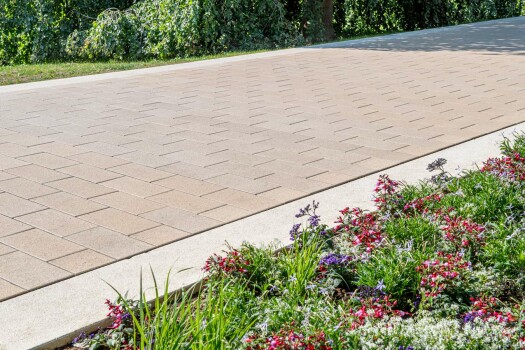

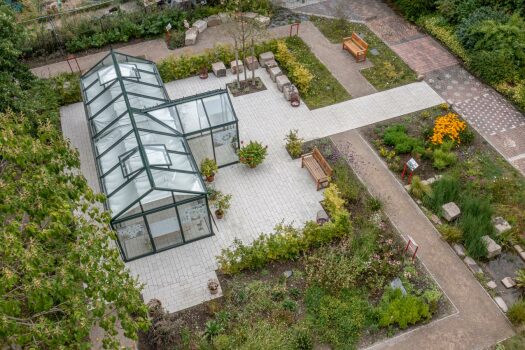

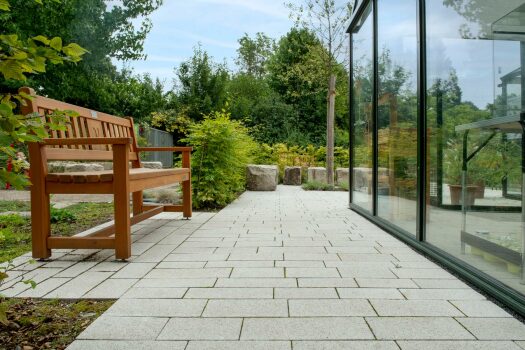

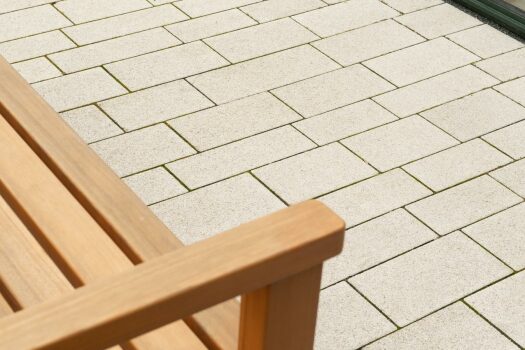

Gallery

Expand GalleryCollapse Gallery

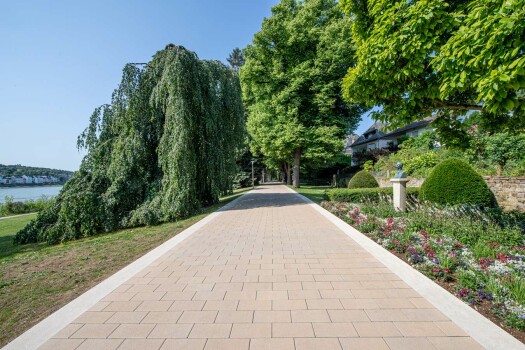

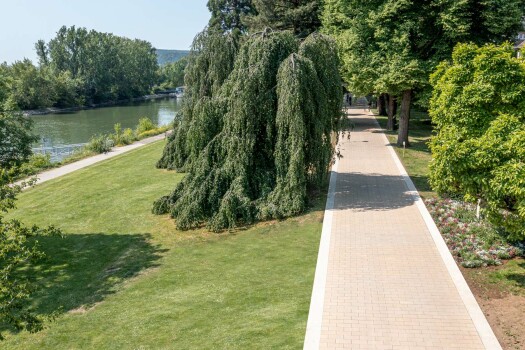

References

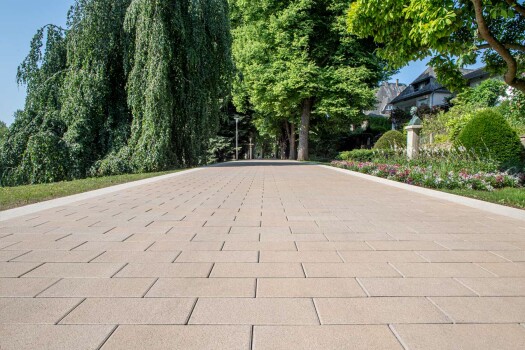

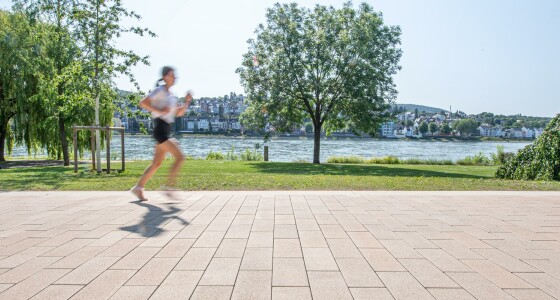

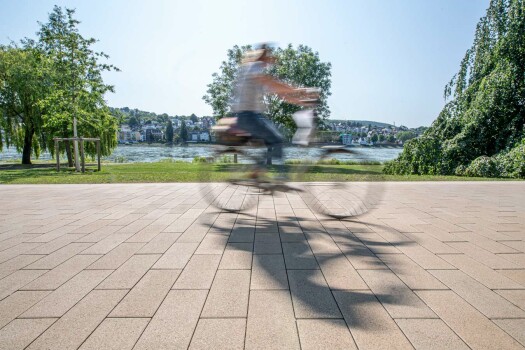

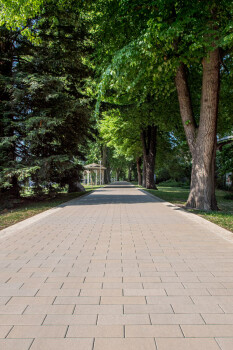

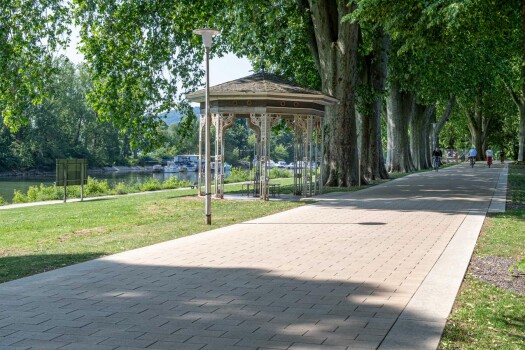

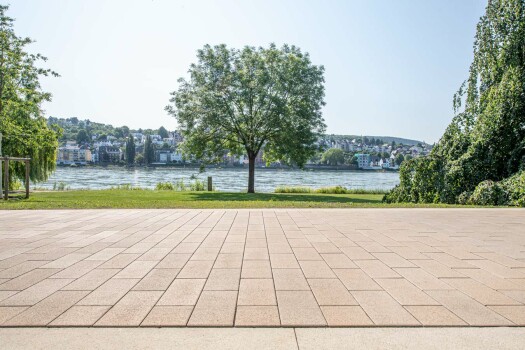

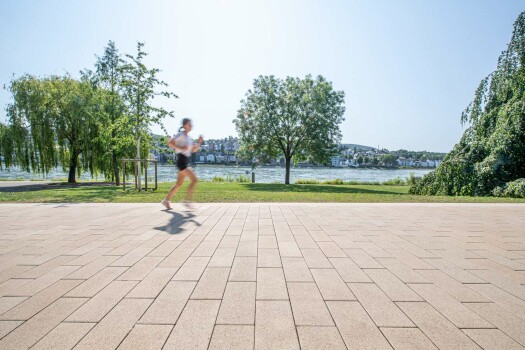

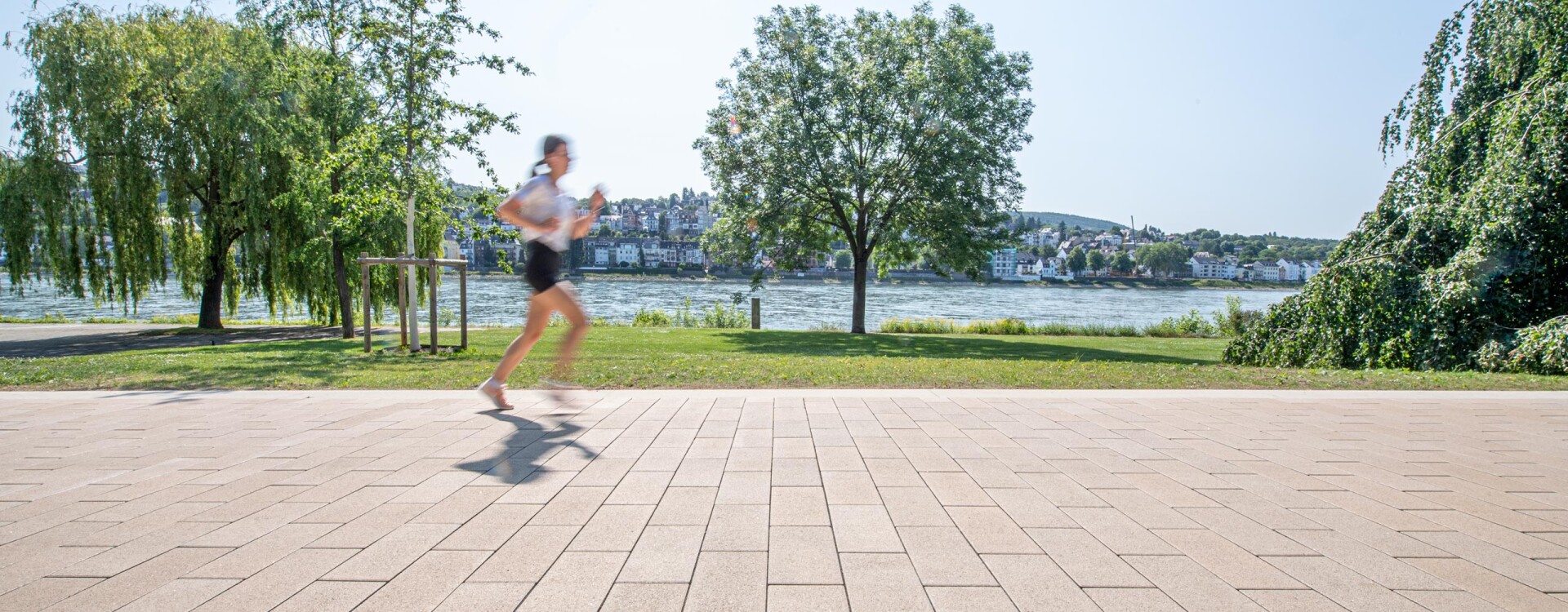

CorioEcoterra Kaiserin August Rheinpromenade 2654 64
Kaiserin Augusta Anlagen in Koblenz
