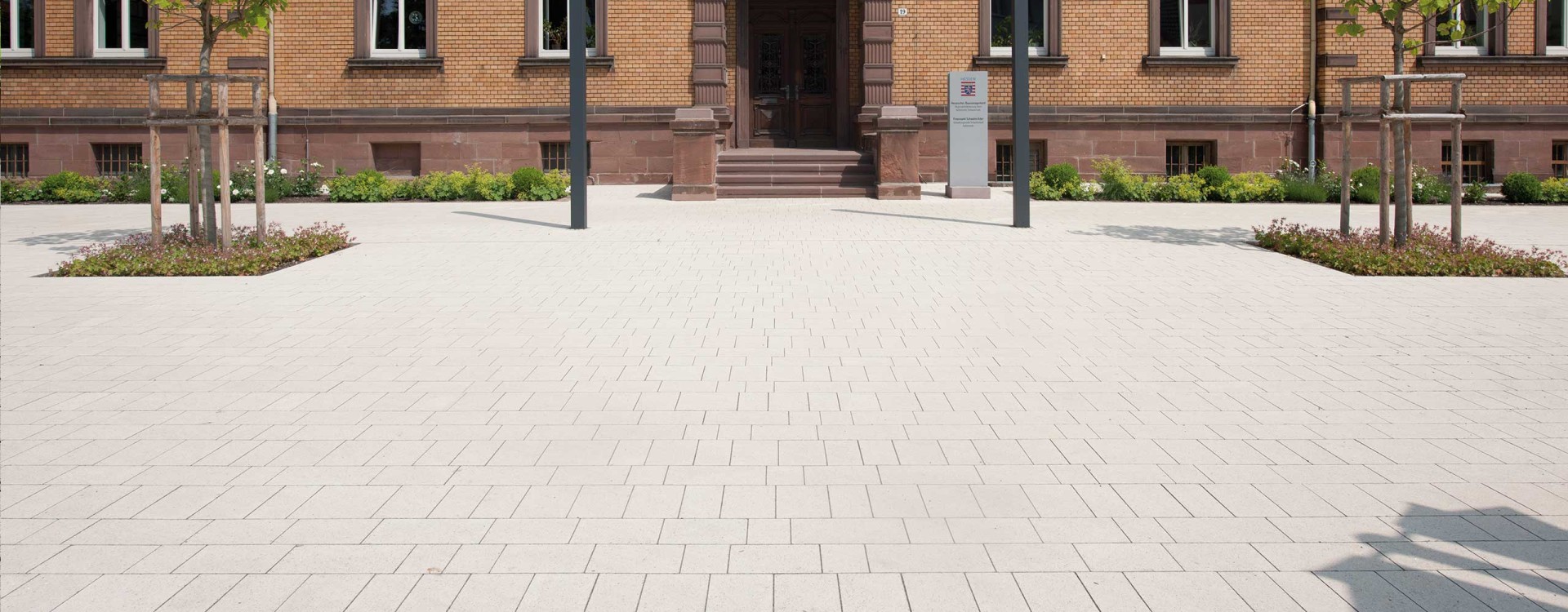

The combination of various stone widths and lengths allows a lively and natural surface design, especially for larger areas. The exciting effect is due to the game with large and smaller sizes – a matched selection of sizes is available. Let yourself be inspired by the laying pattern that we have selected according to the different thicknesses and surfaces for you.

System Bahnenware
Standard colours
Properties
Standard sizes
Laying patterns
Object sizes
Gallery
Editions
CDFarben
References
Laying pattern calculator
Verlegehinweise
Downloads
Links
Dealers

Standard colours

Standard sizes

Filter:

Running bond

Linaro Lage 03

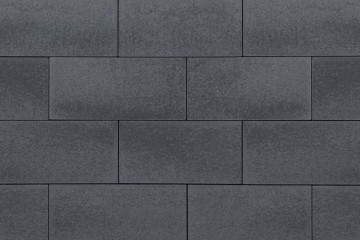

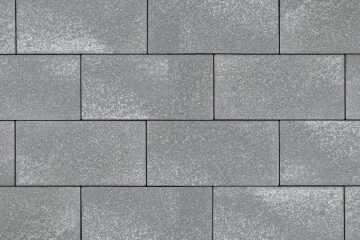

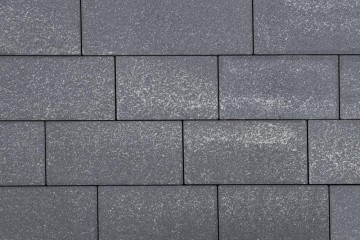

Umbriano Platinum greyUmbriano Dolomite greyUmbriano Grey anthracite
drivable

Umbriano Running bond is delivered in layers.
One layer contains:
2 units 50 x 40 x 8 cm, DIN EN 1339 PKDUI
2 units 70 x 40 x 8 cm, DIN EN 1339 PKDUI
1 Layer = 0,96 m2

Linaro Lage 01
Umbriano Platinum greyUmbriano Dolomite greyUmbriano Grey anthracite
permeable to water
drivable

Umbriano Running bond is delivered in layers.
One layer contains:
3 units 30 x 20 x 8 cm, DIN EN 1338 KDI
2 units 35 x 20 x 8 cm, DIN EN 1339 PKDUI
5 units 40 x 20 x 8 cm, DIN EN 1339 PKDUI
2 units 45 x 20 x 8 cm, DIN EN 1339 PKDUI
3 units 50 x 20 x 8 cm, DIN EN 1339 PKDUI
1 Layer = 1,20 m2

Linaro Lage 02
Umbriano Platinum greyUmbriano Dolomite greyUmbriano Grey anthracite
drivable

Umbriano Running bond is delivered in layers.
One layer contains:
2 units 35 x 25 x 8 cm, DIN EN 1339 PKDUI
2 units 40 x 25 x 8 cm, DIN EN 1339 PKDUI
2 units 45 x 25 x 8 cm, DIN EN 1339 PKDUI
4 units 60 x 25 x 8 cm, DIN EN 1339 PKDUI
1 Layer = 1,20 m2

Laying patterns

Thickness 8 cm:

Pattern 8/1 (without chamfer)

Sizes used:

Available products:

chamfer:

advice:

Surface with the appearance of sawn natural stone.
without chamfer.

8 cm thickness is suitable for pedestrian areas or car traffic with a gross vehicle weight of 2.91 tons (0.78 to wheel load).

 The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
