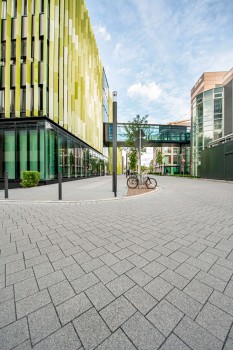

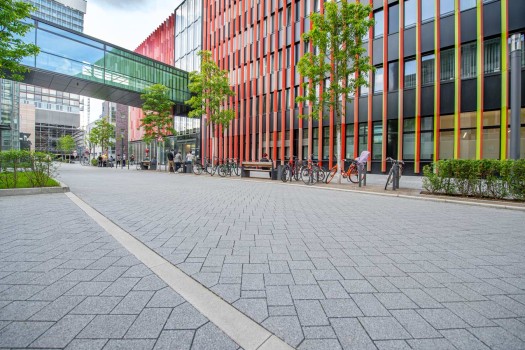

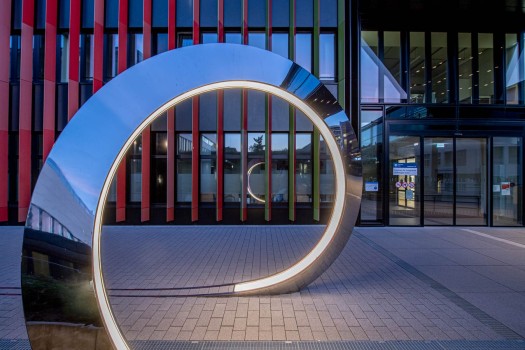

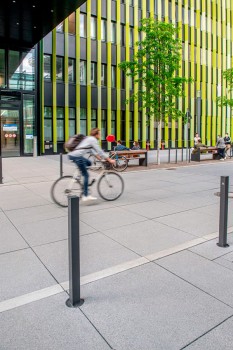

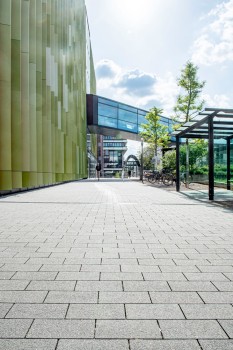

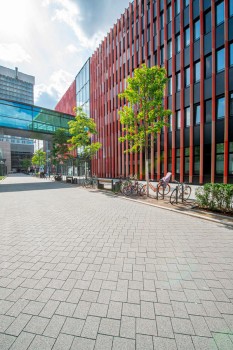

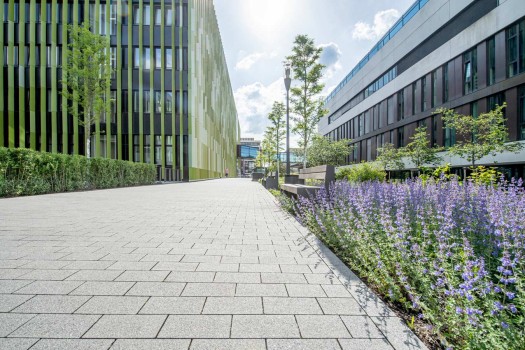

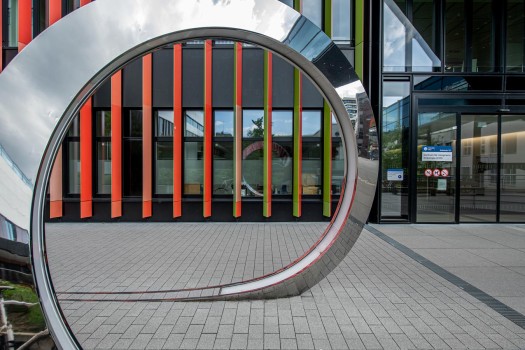

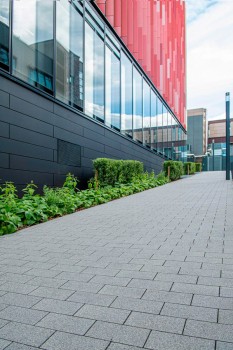

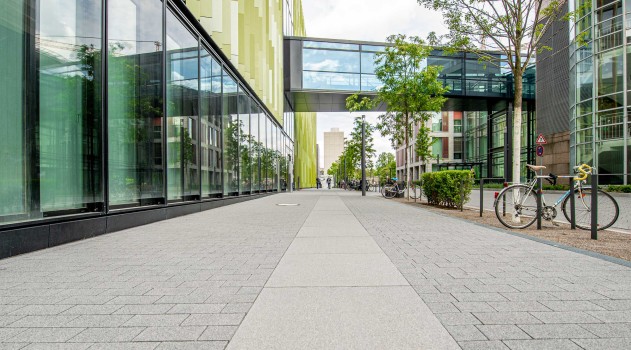

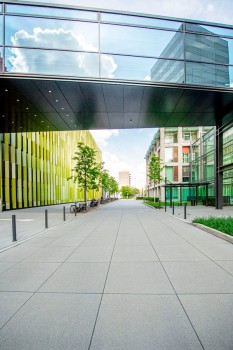

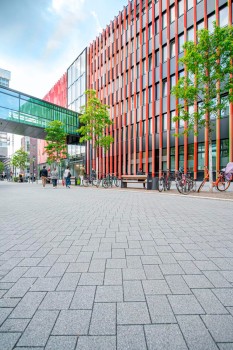

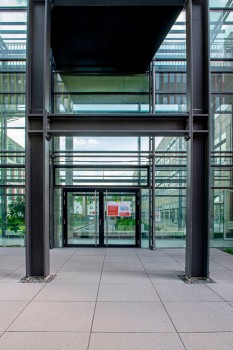

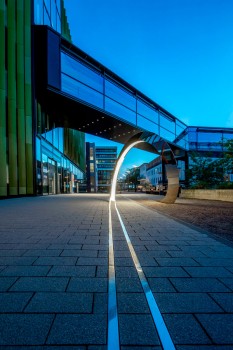

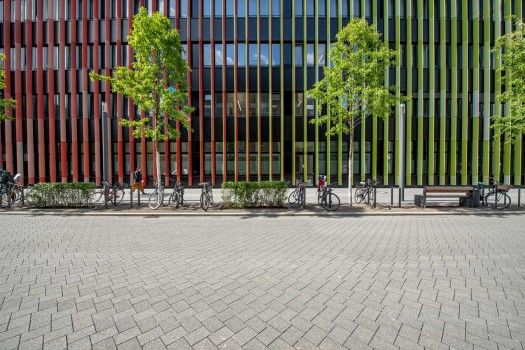

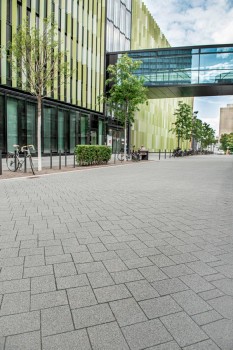

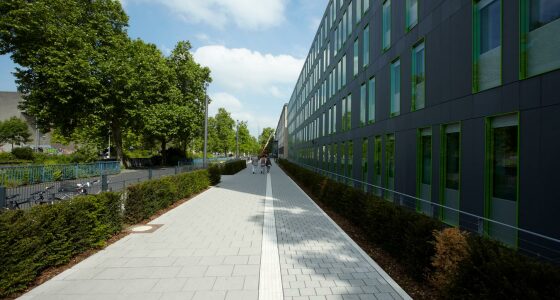

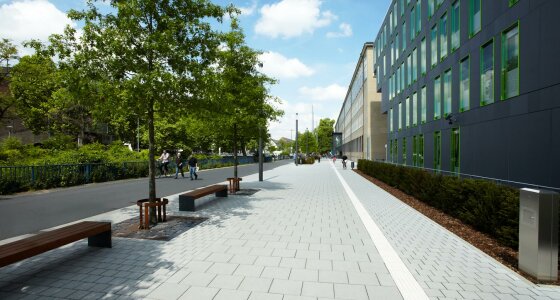

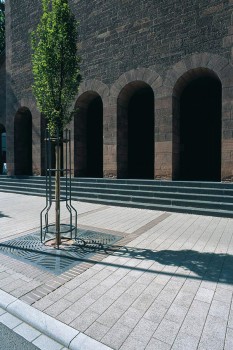

Cologne (D), Uniklinik, La Linia Darkgrey granite.
Cologne (D), Uniklinik, La Linia Darkgrey granite.

As a modern classic among paving systems, La Linia has been designing private and public paths and squares for more than two decades - and continues to inspire planners and users time and time again. With a high proportion of high-quality natural stone chippings, exposing through the fine-blasting technique on the concrete stone surface, La Linia has almost unlimited colour options - from light granite and sand beige to jura yellow or reddish porphyry brown to dark basalt anthracite. A wide range of natural stone grains allows a versatile colouring. The paving system, which is available in various sizes with chamfered or unchamfered edges, convinces with its high colourfastness and durability. The CleanTop® surface protection with Clean Factor 90 preserves the unmistakable character of the stone in the long term, prevents weathering and facilitates maintenance.

La Linia
Colours
Properties
Standard sizes
Object sizes
Gallery
Editions
CDFarben
References
Laying pattern calculator
System Bahnenware
Verlegehinweise
Downloads
Links
Dealers

Colours

Light granite
Light granite
Light grey
Light grey
Quartzite light*
Quartzite light*
Medium grey
Medium grey
Quartzite medium*
Quartzite medium*
Grey granite
Grey granite
Diamond grey
Diamond grey
Dark grey
Dark grey
Quarzit dark*
Quarzit dark*
Anthracite basalt*
Anthracite basalt*
Objectcolour 2397
Objectcolour 2397
Sand beige
Sand beige
Objectcolour 2429
Objectcolour 2429
Quarz sand beige
Quarz sand beige

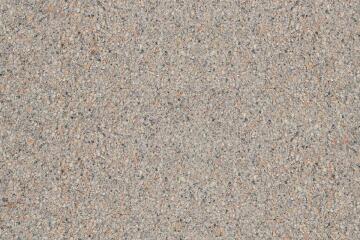

Objectcolour 2224
Objectcolour 2224
Porphyry light*
Porphyry light*
Porphyry medium*
Porphyry medium*
Grey-reddish granite
Grey-reddish granite
Porphyry dark*
Porphyry dark*
Objectcolour 2108
Objectcolour 2108

Properties

  • Finely blasted surface.
  • High colour fastness due to selected, colour-matched natural stone chippings.
  • Extremely hard-wearing and durable surface. Reference: Cologne-Neumarkt - in Germany´s busiest pedestrian zone, almost 700 million people have walked over La Linia paving stones in the 29 years since laying. One of over 1,000 projects with La Linia in Europe.
  • Frost and de-icing salt resistant.
  • Slip-resistant.
  • Wide range of sizes. Stone thicknesses from 5 to 18 cm possible. Available with and without chamfer.
  • Stone hardening process through climate-controlled surface finishing.
  • CSC gold certified production.
  • CO₂ certified production: carbon footprint < 1.75 kg/m² (according to PAS 2050: 11 for 8 cm product thickness).

CleanTop® Technology

(optional)

CleanTop® protection system with Clean Factor CF 90 (integral part of the production process):

  • Reduced dirt absorption.
  • Natural appearance combined with surface protection.
  • Easier to clean compared to a product without CleanTop®.
  • Inhibits algae and moss.

Blue Air®-Technology

(optional)

  • Photocatalytic process corresponding to the ideal of nature.
  • Reduction of harmful nitrogen oxides from the air and conversion into nitrates.
  • The process is active throughout the service life of the concrete stone.
  • The catalyst does not consume itself.

(BlueAir® is not available in combination with CleanTop®).

Standard sizes

Filter:

Pavers

25 x 12,5 x 8 cm
Diamond greyAnthracite basalt
DIN EN 1338 KDI
permeable to water
drivable
25 x 25 x 8 cm
Anthracite basalt
DIN EN 1338 KDI
permeable to water
drivable
50 x 25 x 8 cm
Light graniteDiamond greyAnthracite basaltSand beige
DIN EN 1339 PKDUI 11
permeable to water
drivable
50 x 50 x 8 cm
Light graniteDiamond greyAnthracite basalt
DIN EN 1339 PKDUI 25
drivable
100 x 50 x 8 cm
Anthracite basalt
DIN EN 1339 PKDUI 11
Bedingt befahrbar
100 x 100 x 8 cm
Anthracite basalt
DIN EN 1339 PKDUI 14
Bedingt befahrbar

Römischer Verband

LaLiniaRoemischerVerband
Kwartsiet lichtQuarzit mittelQuarzit dunkelPorphyr hellPorphyr mittelPorphyr dunkel
permeable to water
drivable

Running bond Roman is delivered in layers.

One layer contains:
2 units 48 x 32 x 8 cm, DIN EN 1339 PKDUI
+ 4 units 32 x 32 x 8 cm, DIN EN 1338 KDI
+ 2 units 32 x 16 x 8 cm, DIN EN 1338 KDI
+ 4 units 16 x 16 x 8 cm, DIN EN 1338 KDI
1 layer = 1,00 m2

All dimensions given are grid dimensions including spacers and joint proportion.

For drive-on areas laid with La Linia 100 x 50 cm, we recommend laying in third bond.


Also available as eco-pavers.

For more information please contact us.

Object sizes

La Linia können wir Ihnen individuell für Ihr Objekt auch in den nachfolgenden Formaten fertigen. Bezüglich der Mindestabnahmemengen (ohne Preisaufschlag) und der Kombinierbarkeit der Formate untereinander sprechen Sie uns bitte an.

Without bevel edge

Plansizenominal sizeDIN EN Classification
25 x 25 x 5 246 x 246 x 50DIN EN 1339 PKDUI 7
47 x 47 x 5 466 x 466 x 50DIN EN 1339 PKDUI 7
50 x 15 x 5 496 x 146 x 50DIN EN 1339 PKDUI 3
50 x 25 x 5 496 x 246 x 50DIN EN 1339 PKDUI 7
50 x 40 x 5 496 x 396 x 50DIN EN 1339 PKDUI 4
50 x 50 x 5 496 x 496 x 50DIN EN 1339 PKDUI 7
60 x 30 x 5 596 x 296 x 50DIN EN 1339 PKDUI 4

100 x 33,3 x 6 996 x 329 x 60DIN EN 1339 PKDUI 7

15 x 15 x 8 146,5 x 146,5 x 80DIN EN 1338 KDI
22,5 x 15 x 8 221,5 x 146,5 x 80DIN EN 1338 KDI
25 x 12,5 x 8 *246 x 121 x 80DIN EN 1338 KDI
25 x 25 x 8 *246 x 246 x 80DIN EN 1338 KDI
30 x 10 x 8 296,5 x 96,5 x 80DIN EN 1338 KDI
30 x 30 x 8 294,5 x 294,5 x 80DIN EN 1338 KDI
37,5 x 12,5 x 8 371 x 121 x 80DIN EN 1339 PKDUI 7
37,5 x 25 x 8 371 x 246 x 80DIN EN 1339 PKDUI 14
40 x 10 x 8 396 x 96 x 80DIN EN 1339 PKDUI 7
40 x 40 x 8 396 x 396 x 80DIN EN 1339 PKDUI 25
45 x 22,5 x 8 446 x 221 x 80DIN EN 1339 PKDUI 11
45 x 45 x 8 446 x 446 x 80DIN EN 1339 PKDUI 25
50 x 15 x 8 496 x 146 x 80DIN EN 1339 PKDUI 7
50 x 25 x 8 *496 x 246 x 80DIN EN 1339 PKDUI 11
50 x 40 x 8 496 x 396 x 80DIN EN 1339 PKDUI 14
50 x 50 x 8 *496 x 496 x 80DIN EN 1339 PKDUI 25
60 x 30 x 8 596 x 296 x 80DIN EN 1339 PKDUI 11
60 x 60 x 8 596 x 596 x 80DIN EN 1339 PKDUI 25
100 x 50 x 8 *996 x 496 x 80DIN EN 1339 PKDUI 11
100 x 100 x 8 *996 x 996 x 80DIN EN 1339 PKDUI 14

12,5 x 12,5 x 10 121 x 121 x 100DIN EN 1338 KDI
20 x 10 x 10 196 x 96 x 100DIN EN 1338 KDI
20 x 20 x 10 196 x 196 x 100DIN EN 1338 KDI
25 x 12,5 x 10 246 x 121 x 100DIN EN 1338 KDI
25 x 25 x 10 246 x 246 x 100DIN EN 1338 KDI
30 x 20 x 10 296 x 196 x 100DIN EN 1338 KDI
37,5 x 25 x 10 371 x 246 x 100DIN EN 1338 KDI
60 x 30 x 10 594,5 x 294,5 x 100DIN EN 1339 PKDUI 14

15 x 15 x 12 144,5 x 144,5 x 120DIN EN 1338 KDI
20 x 15 x 12 194,5 x 144,5 x 120DIN EN 1338 KDI
22,5 x 22,5 x 12 219,5 x 219,5 x 120DIN EN 1338 KDI
25 x 25 x 12 244,5 x 244,5 x 120DIN EN 1338 KDI
30 x 15 x 12 294,5 x 144,5 x 120DIN EN 1338 KDI
30 x 30 x 12 294,5 x 294,5 x 120DIN EN 1338 KDI
37,5 x 25 x 12 369,5 x 244,5 x 120DIN EN 1338 KDI
40 x 20 x 12 394,5 x 194,5 x 120DIN EN 1338 KDI
40 x 40 x 12 394,5 x 394,5 x 120DIN EN 1338 KDI
45 x 22,5 x 12 444,5 x 219,5 x 120DIN EN 1338 KDI
50 x 10 x 12 494,5 x 100 x 120DIN EN 1339 PKDUI 11
50 x 25 x 12 494,5 x 244,5 x 120DIN EN 1339 PKDUI 30
50 x 50 x 12 494,5 x 494,5 x 120DIN EN 1339 PKDUI 30
60 x 30 x 12 594,5 x 294,5 x 120DIN EN 1339 PKDUI 25
60 x 40 x 12 594,5 x 394,5 x 120DIN EN 1339 PKDUI 30

20 x 15 x 14 194 x 144 x 140DIN EN 1338 KDI
22,5 x 15 x 14 219,5 x 144,5 x 140DIN EN 1338 KDI
25 x 25 x 14 244,5 x 244,5 x 140DIN EN 1338 KDI
30 x 15 x 14 294,5 x 144,5 x 140DIN EN 1338 KDI
30 x 30 x 14 294,5 x 294,5 x 140DIN EN 1338 KDI
37,5 x 25 x 14 369,5 x 244,5 x 140DIN EN 1338 KDI
40 x 20 x 14 394,5 x 194,5 x 140DIN EN 1338 KDI
45 x 30 x 14 444,5 x 294,5 x 140DIN EN 1338 KDI
50 x 50 x 14 494,5 x 494,5 x 140DIN EN 1338 KDI
60 x 30 x 14 594,5 x 294,5 x 140DIN EN 1339 PKDUI 30
60 x 60 x 14 594,5 x 594,5 x 140DIN EN 1339 PKDUI 30
100 x 100 x 14 994,5 x 994,5 x 140DIN EN 1339 PKDUI 30

20 x 15 x 16 194 x 144 x 160DIN EN 1338 KDI
25 x 25 x 16 244,5 x 244,5 x 160DIN EN 1338 KDI
30 x 20 x 16 294,5 x 194,5 x 160DIN EN 1338 KDI
30 x 30 x 16 294,5 x 294,5 x 160DIN EN 1338 KDI
37,5 x 10 x 16 369,5 x 94,5 x 160DIN EN 1338 KDI
40 x 20 x 16 394,5 x 194,5 x 160DIN EN 1338 KDI
40 x 30 x 16 394,5 x 294,5 x 160DIN EN 1338 KDI
50 x 10 x 16 494,5 x 94,5 x 160 DIN EN 1338 KDI
50 x 25 x 16 494,5 x 244,5 x 160DIN EN 1338 KDI
50 x 30 x 16 494,5 x 294,5 x 160DIN EN 1338 KDI
50 x 50 x 16 494,5 x 494,5 x 160DIN EN 1338 KDI
60 x 30 x 16 594,5 x 294,5 x 160DIN EN 1338 KDI
60 x 60 x 16 594 x 594 x 160DIN EN 1338 KDI
80 x 40 x 16 794,5 x 394,5 x 160DIN EN 1339 PKDUI 30

25 x 25 x 18 244,5 x 244,5 x 180DIN EN 1338 KDI
50 x 25 x 18 494,5 x 244,5 x 180DIN EN 1338 KDI
50 x 50 x 18 494,5 x 494,5 x 180DIN EN 1338 KDI


Bevel edge

Plansizenominal sizeDIN EN Classification
10 x 10 x 8 96,5 x 96,5 x 80DIN EN 1338 KDI
20 x 10 x 8 196,5 x 96,5 x 80DIN EN 1338 KDI
20 x 15 x 8 196,5 x 146,5 x 80DIN EN 1338 KDI
20 x 20 x 8 194,5 x 194,5 x 80DIN EN 1338 KDI
30 x 15 x 8 294,5 x 144,5 x 80DIN EN 1338 KDI
30 x 20 x 8 296,5 x 196,5 x 80DIN EN 1338 KDI
30 x 30 x 8 296,5 x 296,5 x 80DIN EN 1338 KDI
37,5 x 12,5 x 8 371 x 121 x 80DIN EN 1339 PKDUI 7
40 x 20 x 8 396 x 196 x 80DIN EN 1339 PKDUI 14
60 x 30 x 8 596 x 296 x 80DIN EN 1339 PKDUI 11

15 x 15 x 10 144 x 144 x 100DIN EN 1338 KDI
30 x 15 x 10 294 x 144 x 100DIN EN 1338 KDI
30 x 30 x 10 294 x 294 x 100DIN EN 1338 KDI
60 x 30 x 10 594,5 x 294,5 x 100DIN EN 1339 PKDUI 14
60 x 60 x 10 594,5 x 594,5 x 100DIN EN 1339 PKDUI 30

10 x 10 x 12 96 x 96 x 120DIN EN 1338 KDI
15 x 15 x 12 144,5 x 144,5 x 120DIN EN 1338 KDI
20 x 10 x 12 194,5 x 94,5 x 120DIN EN 1338 KDI
20 x 15 x 12 194,5 x 144,5 x 120DIN EN 1338 KDI
20 x 20 x 12 194 x 194 x 120DIN EN 1338 KDI
22,5 x 15 x 12 219,5 x 144,5 x 120DIN EN 1338 KDI
22,5 x 22,5 x 12 219,5 x 219,5 x 120DIN EN 1338 KDI
30 x 15 x 12 294,5 x 144,5 x 120DIN EN 1338 KDI
30 x 20 x 12 294,5 x 194,5 x 120DIN EN 1338 KDI
30 x 30 x 12 294 x 294 x 120DIN EN 1338 KDI
40 x 20 x 12 394,5 x 194,5 x 120DIN EN 1338 KDI
40 x 40 x 12 394,5 x 394,5 x 120DIN EN 1338 KDI
45 x 30 x 12 444,5 x 294,5 x 120DIN EN 1338 KDI
60 x 40 x 12 594,5 x 394,5 x 120DIN EN 1339 PKDUI 30
90 x 45 x 12 894,5 x 444,5 x 120DIN EN 1339 PKDUI 25

20 x 15 x 14 194,5 x 144,5 x 140DIN EN 1338 KDI
30 x 15 x 14 294 x 144 x 140DIN EN 1338 KDI
30 x 30 x 14 294,5 x 294,5 x 140DIN EN 1338 KDI
40 x 20 x 14 394,5 x 194,5 x 140DIN EN 1338 KDI
60 x 30 x 14 594,5 x 294,5 x 140DIN EN 1339 PKDUI 30
60 x 40 x 14 594,5 x 394,5 x 140DIN EN 1339 PKDUI 30
60 x 60 x 14 594,5 x 594,5 x 140DIN EN 1339 PKDUI 30
90 x 90 x 14 894 x 894 x 140DIN EN 1339 PKDUI 30
100 x 50 x 14 994,5 x 494,5 x 140DIN EN 1339 PKDUI 30

30 x 15 x 16 295 x 145 x 160DIN EN 1338 KDI
40 x 20 x 16 394,5 x 194,5 x 160DIN EN 1338 KDI
50 x 10 x 16 494,5 x 94,5 x 160 DIN EN 1338 KDI
60 x 30 x 16 594,5 x 294,5 x 160DIN EN 1338 KDI
60 x 60 x 16 594 x 594 x 160DIN EN 1338 KDI
80 x 40 x 16 794,5 x 394,5 x 160DIN EN 1339 PKDUI 30

40 x 20 x 18 394 x 194 x 180DIN EN 1338 KDI
60 x 40 x 18 594 x 394 x 180DIN EN 1338 KDI
80 x 60 x 18 794 x 594 x 180DIN EN 1339 PKDUI 30
100 x 70 x 18 994 x 694 x 180DIN EN 1339 PKDUI 30
120 x 60 x 18 1194,5 x 594,5 x 180DIN EN 1339 PKDUI 30
120 x 65 x 18 1194,5 x 644,5 x 180DIN EN 1339 PKDUI 30


Running bond

LaLinia Kombiform Reihenverband

Running bond is delivered in layers.

One layer contains:
2 units 50 x 27 x 8 cm,
1 units 20 x 27 x 8 cm,
2 units 44 x 21 x 8 cm,
2 units 40 x 21 x 8 cm,
2 units 36 x 21 x 8 cm,
2 units 36 x 15 x 8 cm,
2 units 34 x 15 x 8 cm,
2 units 27 x 15 x 8 cm,
2 units 23 x 15 x 8 cm.
1 layer = 1,19 m2

Römischer Verband

LaLiniaRoemischerVerband

Roman Bond 8 cm*

Roman-Bond-Pavers delivered in layers.
One layer contains:
2 units 48 x 32 x 8 cm, DIN EN 1339 PKDUI
+ 4 units 32 x 32 x 8 cm, DIN EN 1338 KDI
+ 2 units 32 x 16 x 8 cm, DIN EN 1338 KDI
+ 4 units 16 x 16 x 8 cm, DIN EN 1338 KDI
1 layer = 1,00 m2


Roman Bond 12 cm

Roman-Bond-Pavers delivered in layers.
One layer contains:
2 units 48 x 32 x 12 cm, DIN EN 1339 PKDUI
+ 4 units 32 x 32 x 12 cm, DIN EN 1338 KDI
+ 2 units 32 x 16 x 12 cm, DIN EN 1338 KDI
+ 4 units 16 x 16 x 12 cm, DIN EN 1338 KDI
1 layer = 1,00 m2

*stock-run products.
All dimensions given are grid dimensions including spacers and joint proportion.


Also available as eco-pavers.

For more information please contact us.

Gallery

Expand GalleryCollapse Gallery

References

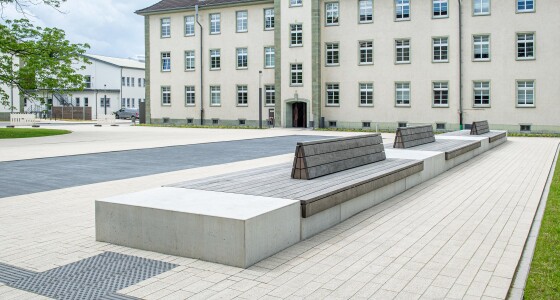

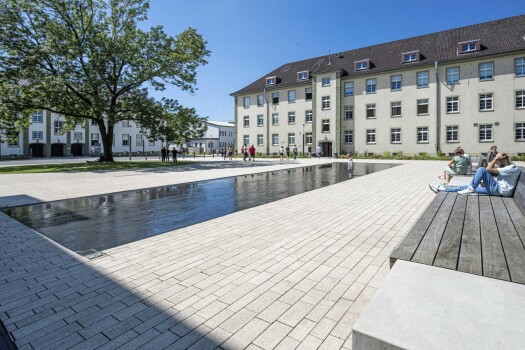

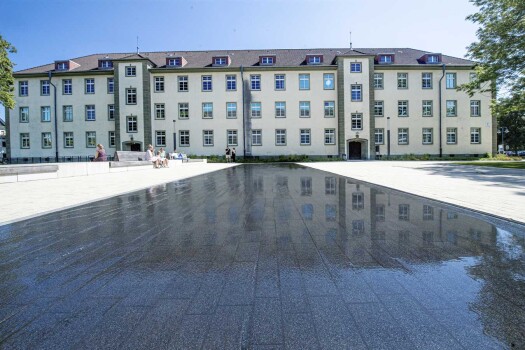

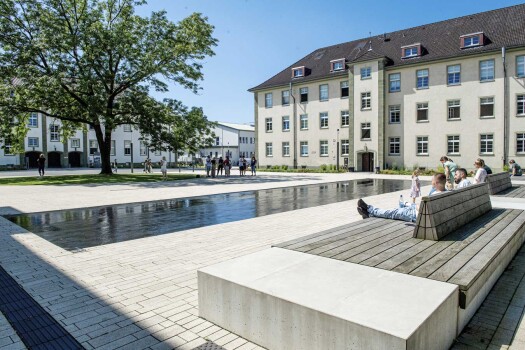

LaLinia Bildungscampus Herford 2655 077

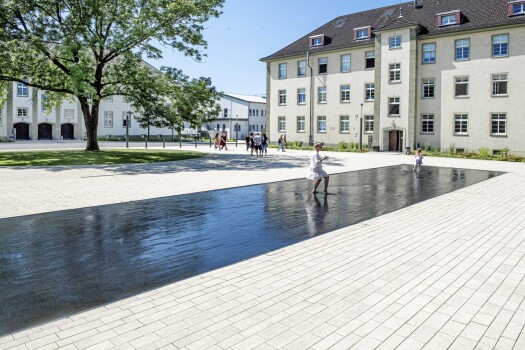

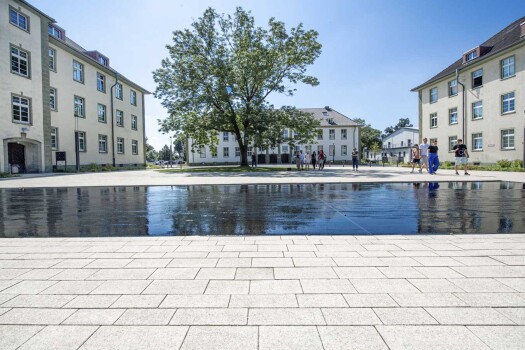

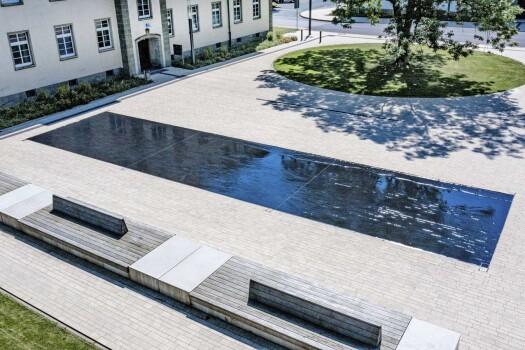

BildungsCampus, Herford

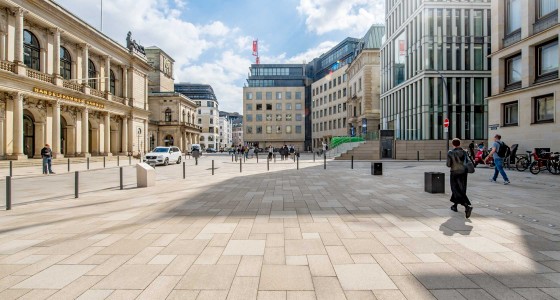

 La Linia Adolphsplatz Hamburg 2482-015
Adolphsplatz, Hamburg

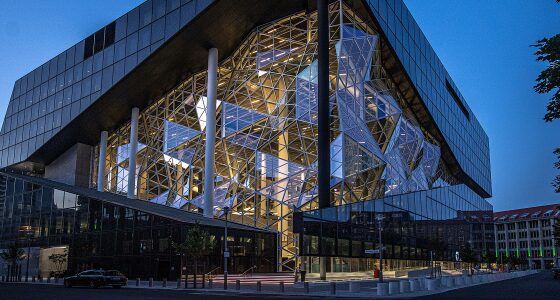

 La Linia Axel Springer Berlin Header
Axel-Springer, Berlin

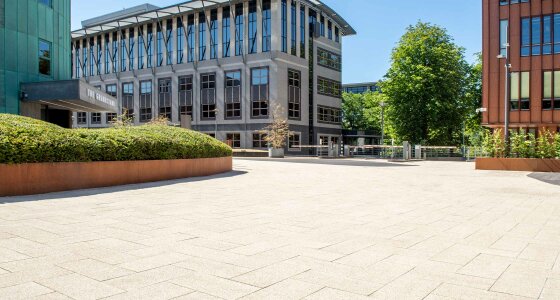

 La Linia Bueropark Arena Hilversum NL 2428 015
Kantorenpark Arena Hilversum

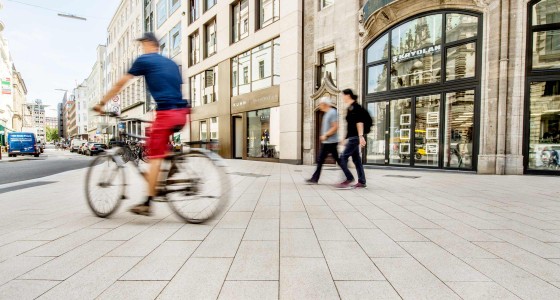

 La Linia Nikolai Quartier Hamburg 2335 472
Nikolai Quartier, Hamburg

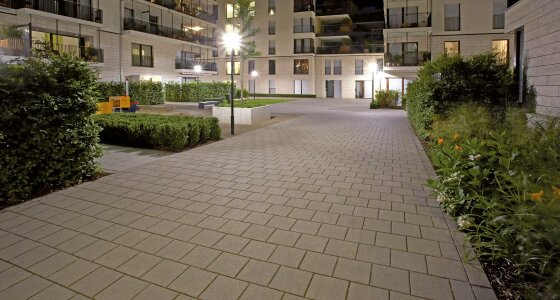

 La Linia Pflaster Clarenbachgaerten 884 823
Clarenbach-Gärten, Köln Lindenthal
 La Linia Opernhaus Wuppertal 967 4
Opernhaus, Wuppertal

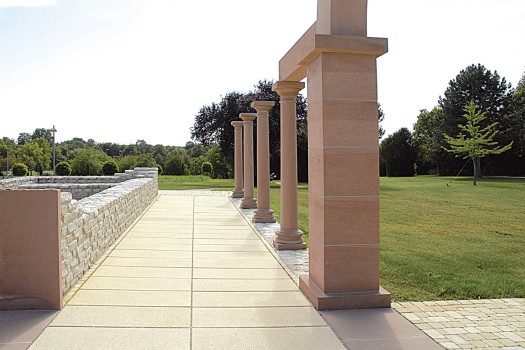

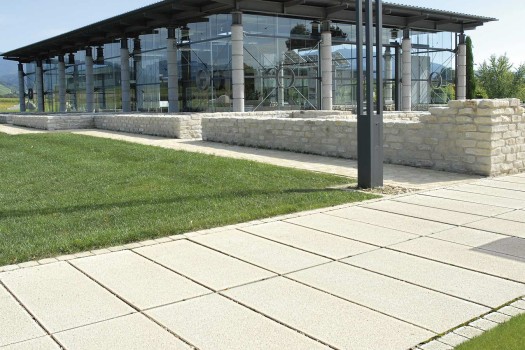

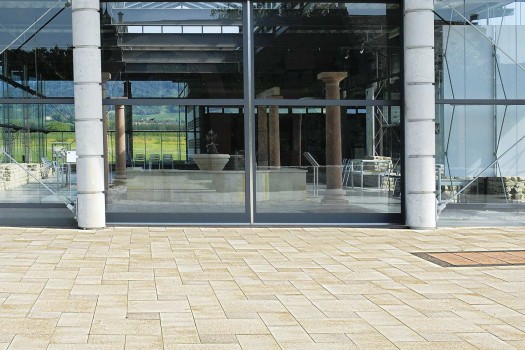

 La Linia Roemermuseum Villa Urbana Heitersheim 0233 11
Römermuseum "Villa Urbana", Heitersheim

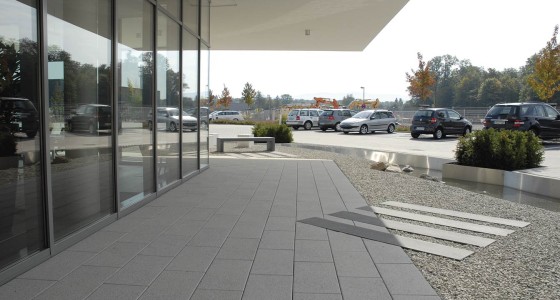

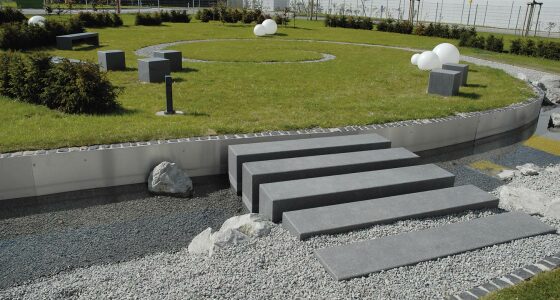

Cortesa Arcadia Platte Kramer GmbH Umkirch
Kramer GmbH Umkirch bei Freiburg
 La Linia Neue Mitte Kelkheim 0069 810
Neue Mitte, Kelkheim
 La Linia Sorpepromenade Sundern 977 12
Sorpepromenade, Sundern

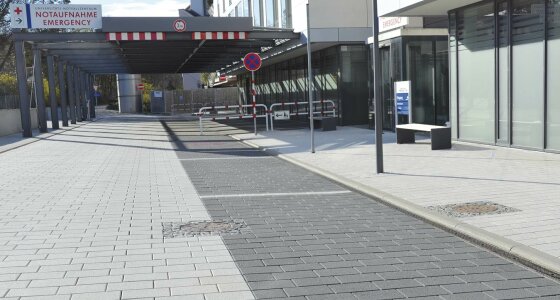

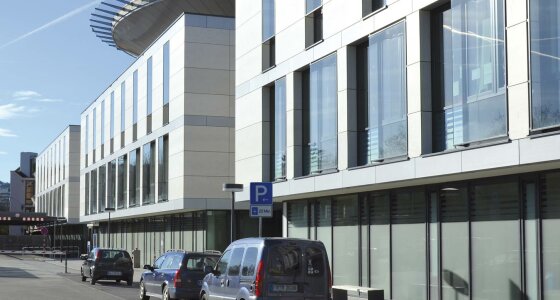

 LaLinia Universitaetsklinikum Freiburg 12 1316
Neubau Universitäts-Notfallzentrum - Universitätsklinikum, Freiburg
 La Linia Wohnanlage La Capitainerie Morges 1345 12
Wohnanlage La Capitainerie, Morges

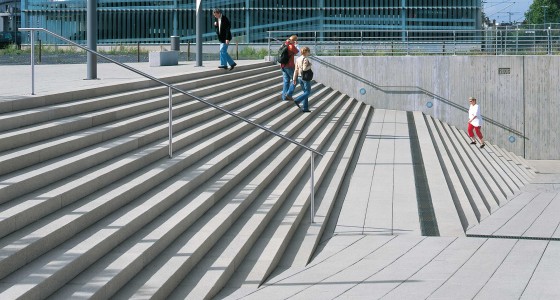

 Tocano Stufen Place Le Pecq 620 313
"Place le Pecq" Bahnhof, Hennef

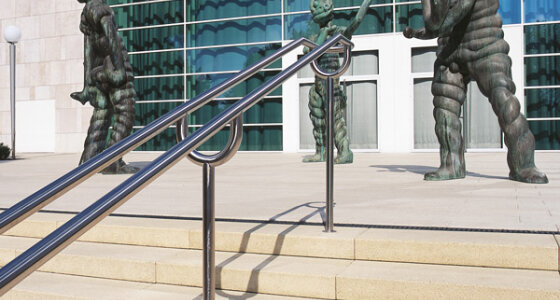

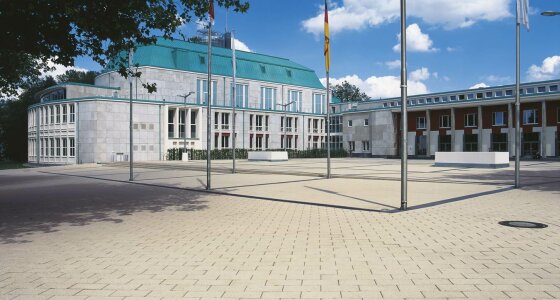

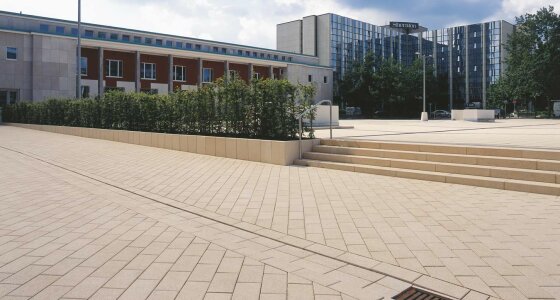

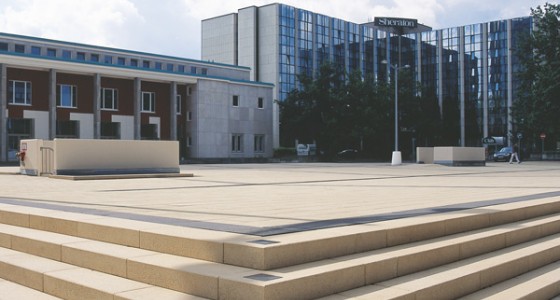

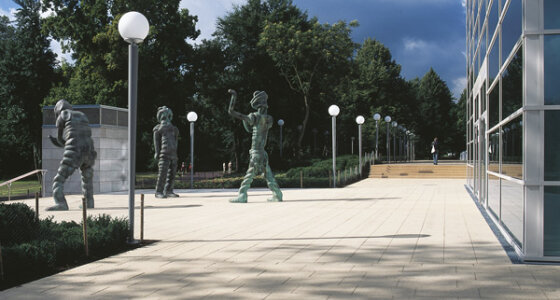

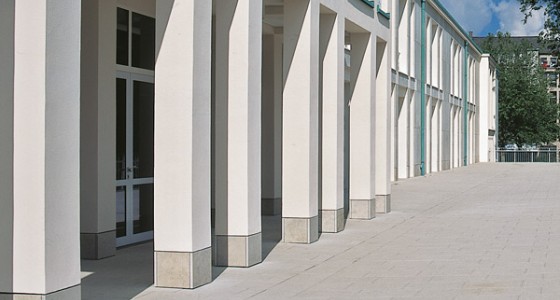

 LaLinia Pflaster Philharmonie Essen 05 083
Philharmonie, Essen

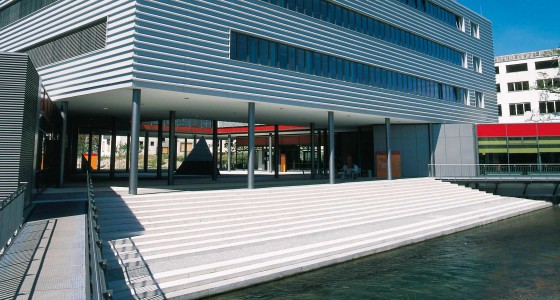

 La Linia Fachhochschule Augsburg 283
Fachhochschule, Augsburg

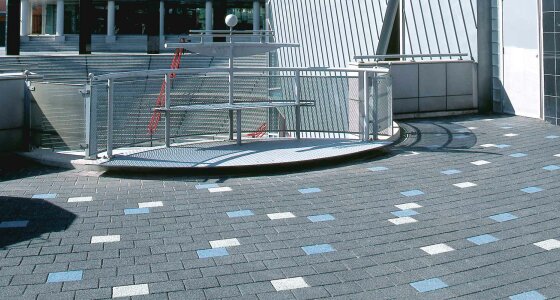

 La Linia Bahnstation Utrecht jb2005 045
Bahnstation Utrecht, Niederlande

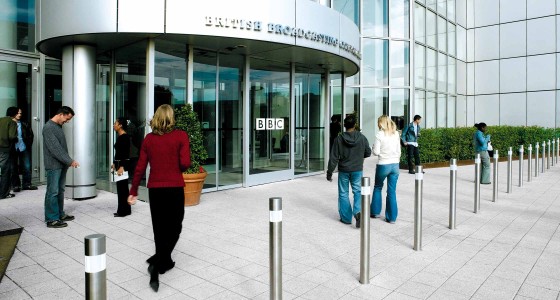

La Linia BBC London 660
BBC London, England

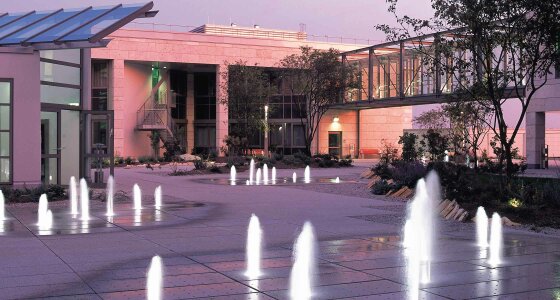

 La Linia Hospital de Kirchberg jb04 569
Hospital de Kirchberg, Luxemburg

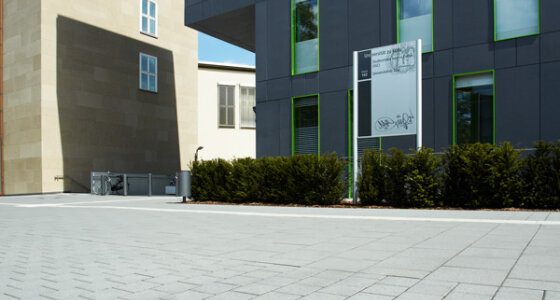

 LaLinia Pflaster Uni Koeln 2155 9657
Universität Köln
 La Linia St Josef Stift Sendenhorst 2201 4557
St. Josef-Stift, Sendenhorst

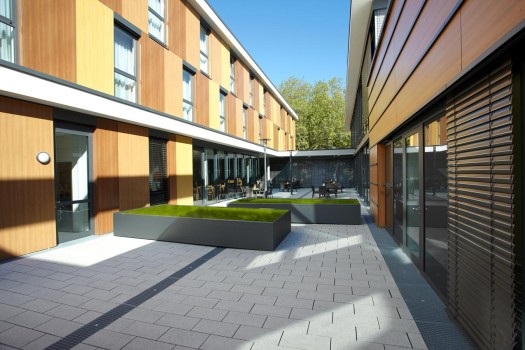

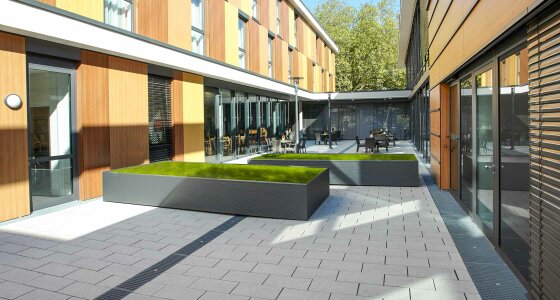

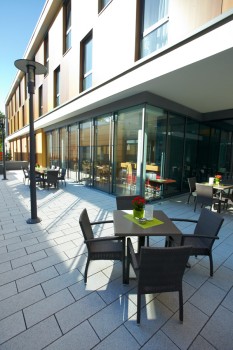

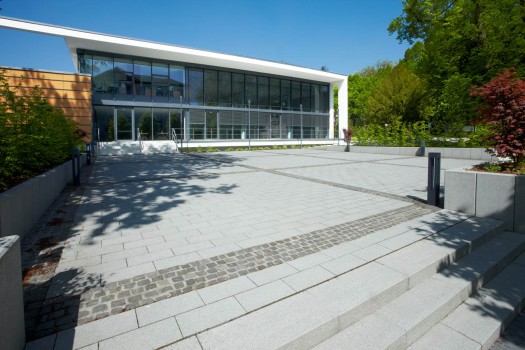

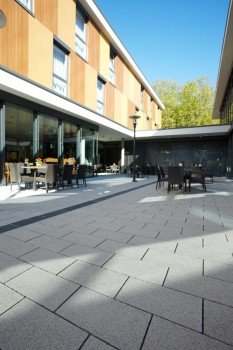

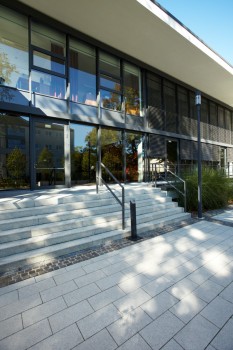

 La Linia Franz Sales Haus Essen 2086 2537
Franz Sales Haus, Essen

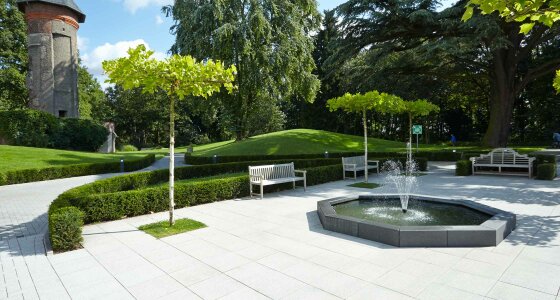

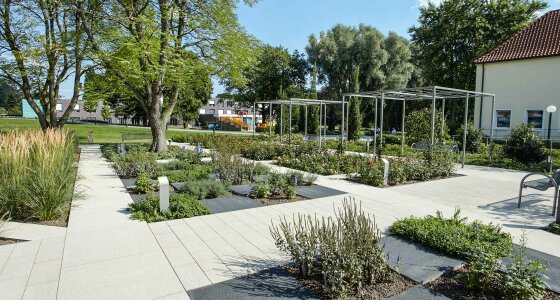

 La Linia Hilden Wohnstift Haus Horst 2201 4557
Wohnstift Haus Horst, Hilden

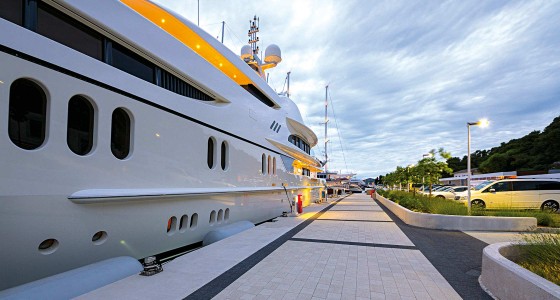

 La Linia Marina Mandalina Sibenik Kroatien 1
Marina Mandalina, Šibenik, Kroatien

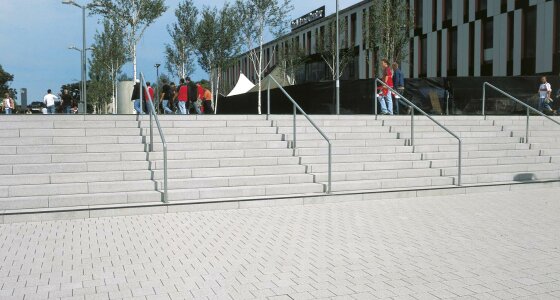

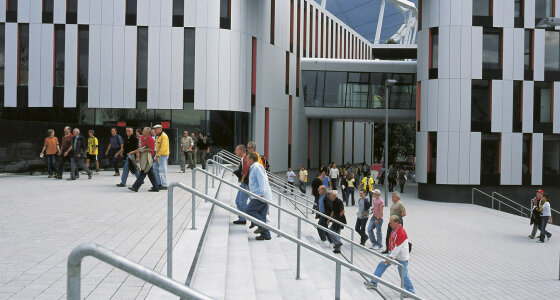

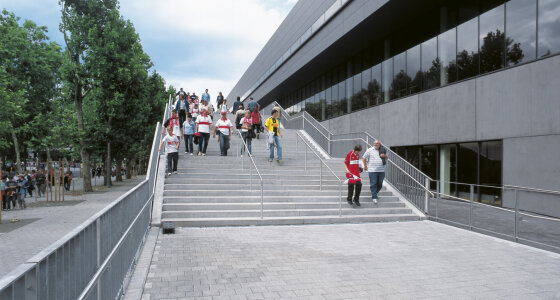

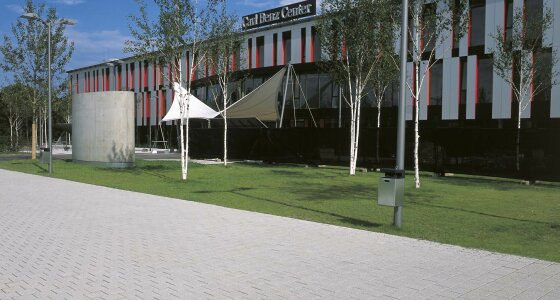

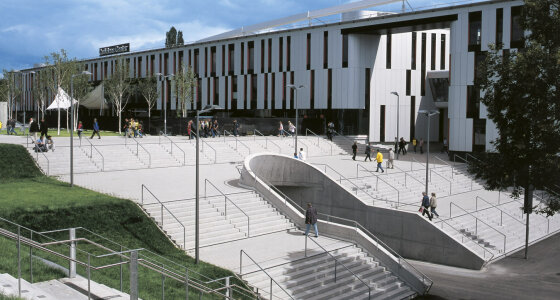

Aqua Prima Carl Benz Center Stuttgart 003
Carl Benz Center am Gottlieb-Daimler-Stadion, Stuttgart
 SystemTerra Ruhrbaniaplatz 2156 9691
Ruhrbaniaplatz und Uferpromenade

Laying pattern calculator

La Linia Pattern 01
PATTERN 01
Pattern 01

Pattern 01

Pattern 011/16
m²
units
units
rm
units
La Linia Pattern 02
PATTERN 02
Pattern 02

Pattern 02

LL2

Pattern 022/16
La Linia Pattern 03
PATTERN 03
Pattern 03

Pattern 03

LL3
Number of units per m²:
50 x 25 cm approx. 8 units
Edge units per running metre.:
25 x 25 cm approx. 1.5 unit

Pattern 033/16
m²
units
rm
units
La Linia Pattern 04
PATTERN 04
Pattern 04

Pattern 04

U4

Pattern 044/16
m²
units
La Linia Pattern 05
PATTERN 05
Pattern 05

Pattern 05

U5
Number of units per m²:
50 x 50 cm approx. 4 units
Edge units per running metre:
50 x 25 cm approx. 1 unit

Pattern 055/16
m²
units
rm
units
La Linia Pattern 06
PATTERN 06
Pattern 06

Pattern 06

LL
Number of units per m²:
50 x 50 cm approx. 4,0 units
alternative*:
Number of units per m²:
100 x 100 cm approx. 1,0 units

Pattern 066/16
m²
units
units
La Linia Pattern 07
PATTERN 07
Pattern 07

Pattern 07

LL

Pattern 077/16
m²
units
units
units
La Linia Pattern 08
PATTERN 08
Pattern 08

Pattern 08

LL

Pattern 088/16
m²
units
La Linia Pattern 09
PATTERN 09
Pattern 09

Pattern 09

LL

Pattern 099/16
m²
units
La Linia Pattern 10
PATTERN 10
Pattern 10

Pattern 10

LL

Pattern 1010/16
m²
units
units
La Linia Pattern 11
PATTERN 11
Pattern 11

Pattern 11

LL

Pattern 1111/16
m²
units
La Linia Pattern 12
PATTERN 12
Pattern 12

Pattern 12

LL

Pattern 1212/16
m²
units
units
La Linia Pattern 13
PATTERN 13
Pattern 13

Pattern 13

LL

Pattern 1313/16
La Linia Pattern 14
PATTERN 14
Pattern 14

Pattern 14

Pattern 1414/16
m²
units
La Linia Pattern 15
PATTERN 15
Pattern 15

Pattern 15

Pattern 1515/16
m²
units
La Linia Pattern 16
PATTERN 16
Pattern 16

Pattern 16

Pattern 1616/16
m²
units
units
units

Bei Reihenverbänden ist der Mengenbedarf stark abhängig von den örtlichen Gegebenheiten.
Verlegemuster und Schraffuren für AutoCAD senden wir Ihnen gerne zu. Tel. 02206/603-30.

System Bahnenware

Thickness 8 cm:

Pattern 8/1 (without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Surface with the appearance of sawn natural stone.
 without chamfer.

8 cm thickness is suitable for pedestrian areas or car traffic with a gross vehicle weight of 2.91 tons (0.78 to wheel load).

 The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 without chamfer.
Homogenous and dense surface.
 without chamfer.
Naturally structured surface.
 without chamfer.
Homogenous and very dense surface.
 without chamfer.

Pattern 8/2 (without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Surface with the appearance of sawn natural stone.
 without chamfer.

8 cm thickness is suitable for pedestrian areas or car traffic with a gross vehicle weight of 2.91 tons (0.78 to wheel load).

The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 without chamfer.
Homogenous and dense surface.
 without chamfer.
Naturally structured surface.
 without chamfer.
Homogenous and very dense surface.
 without chamfer.

Pattern 8/3 (with and without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Ground, very dense surface.
 without chamfer.

8 cm thickness is suitable for pedestrian areas or car traffic with a gross vehicle weight of 2.91 tons (0.78 to wheel load).

The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 with chamfer.
Highly compressed, fine surface.
 with chamfer.

Thickness 10 cm:

Pattern 10/1 (without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Surface with the appearance of sawn natural stone.
 without chamfer.

10 cm thickness is suitable for pedestrian areas or car traffic with a gross vehicle weight of 2.91 tons (0.78 to wheel load).

The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 without chamfer.
Homogenous and dense surface.
 without chamfer.
Naturally structured surface.
 without chamfer.
Homogenous and very dense surface.
 without chamfer.

Thickness 12 cm:

Pattern 12/1 (with and without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Ground, very dense surface.
 without chamfer.

12 cm thickness is suitable for demands of vehicles with a gross vehicle weight of 2,3 tons (eg carriers with a gross vehicle weight of 7.5 tons) for occasionally visit.

The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 with chamfer.
Highly compressed, fine surface.
 with chamfer.

Pattern 12/2 (with and without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Ground, very dense surface.
 without chamfer.

12 cm thickness is suitable for demands of vehicles with a gross vehicle weight of 2,3 tons (eg carriers with a gross vehicle weight of 7.5 tons) for occasionally visit.

The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 with and without chamfer.
Homogenous and dense surface.
 without chamfer.
Homogenous and very dense surface.
 without chamfer.
Highly compressed, fine surface.
 with chamfer.
Surface with the appearance of sawn natural stone.
 without chamfer.
Naturally structured surface.
 with and without chamfer.

Pattern 12/3 (without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Surface with the appearance of sawn natural stone.
 without chamfer.

12 cm thickness is suitable for demands of vehicles with a gross vehicle weight of 2,3 tons (eg carriers with a gross vehicle weight of 7.5 tons) for occasionally visit.

The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 without chamfer.
Homogenous and dense surface.
 without chamfer.
Homogenous and very dense surface.
 without chamfer.

Pattern 12/4 (without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Surface with the appearance of sawn natural stone.
 without chamfer.

12 cm thickness is suitable for demands of vehicles with a gross vehicle weight of 2,3 tons (eg carriers with a gross vehicle weight of 7.5 tons) for occasionally visit.

The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 without chamfer.
Homogenous and dense surface.
 without chamfer.
Naturally structured surface.
 without chamfer.
Homogenous and very dense surface.
 without chamfer.

Thickness 14 cm:

Pattern 14/1 (without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Surface with the appearance of sawn natural stone.
 without chamfer. The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 without chamfer.
Homogenous and dense surface.
 without chamfer.
Naturally structured surface.
 without chamfer.
Homogenous and very dense surface.
 without chamfer.

Pattern 14/2 (with and without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Ground, very dense surface.
 without chamfer. The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 with chamfer.
Highly compressed, fine surface.
 with chamfer.

Thickness 16 cm:

Pattern 16/1 (with and without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Ground, very dense surface.
 without chamfer.

16 cm thickness is suitable for demands of vehicles with a gross vehicle weight of 5 tons (eg lorries with a gross vehicle weight of 16 tons) for occasionally visit.

The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 with chamfer.
Highly compressed, fine surface.
 with chamfer.

Pattern 16/2 (with and without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Ground, very dense surface.
 without chamfer. The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 with chamfer.
Highly compressed, fine surface.
 with chamfer.

Pattern 16/3 (without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Surface with the appearance of sawn natural stone.
 without chamfer.

16 cm thickness is suitable for demands of vehicles with a gross vehicle weight of 5 tons (eg lorries with a gross vehicle weight of 16 tons) for occasionally visit.

The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 without chamfer.
Homogenous and dense surface.
 without chamfer.

Downloads

Houthavens Amsterdam
Houthavens Amsterdam
pdf (3.5 MB)
Sorpe-Promenade Sundern
Sorpe-Promenade Sundern
 pdf (471 KB)
