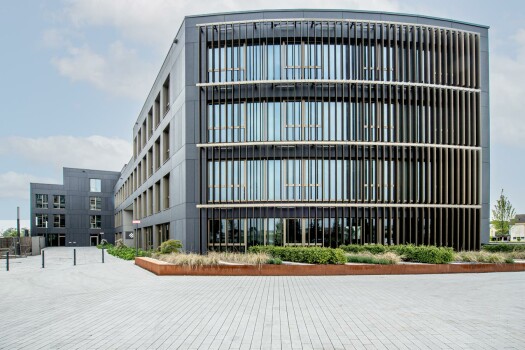

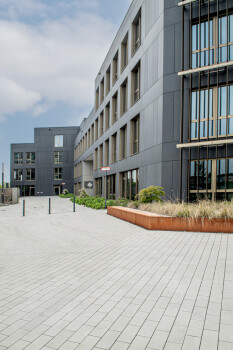

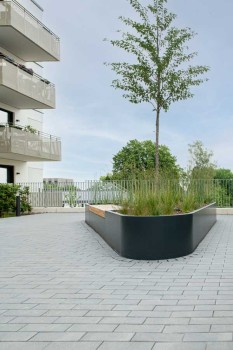

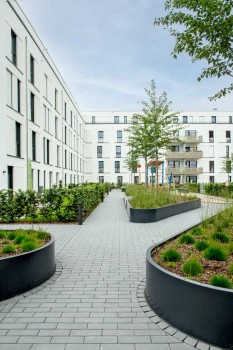

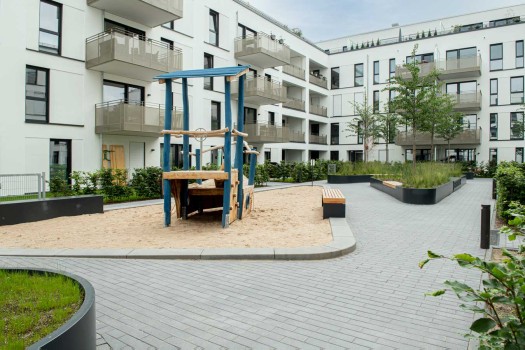

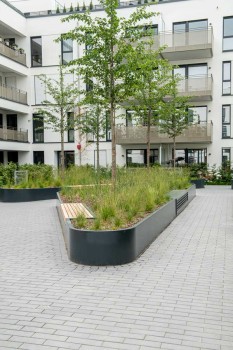

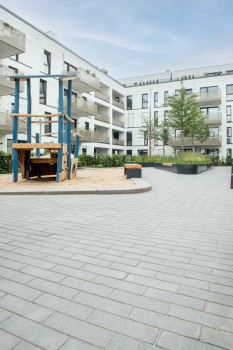

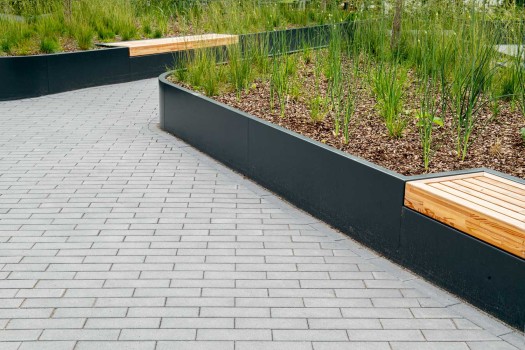

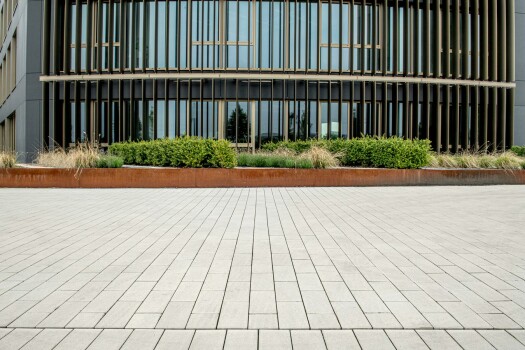

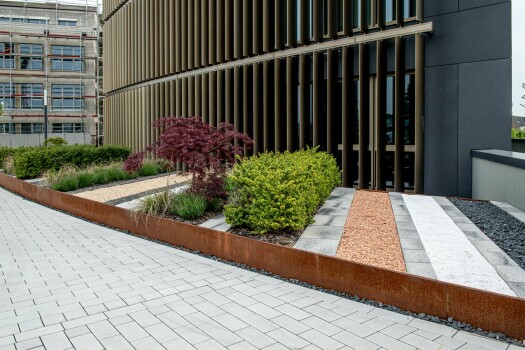

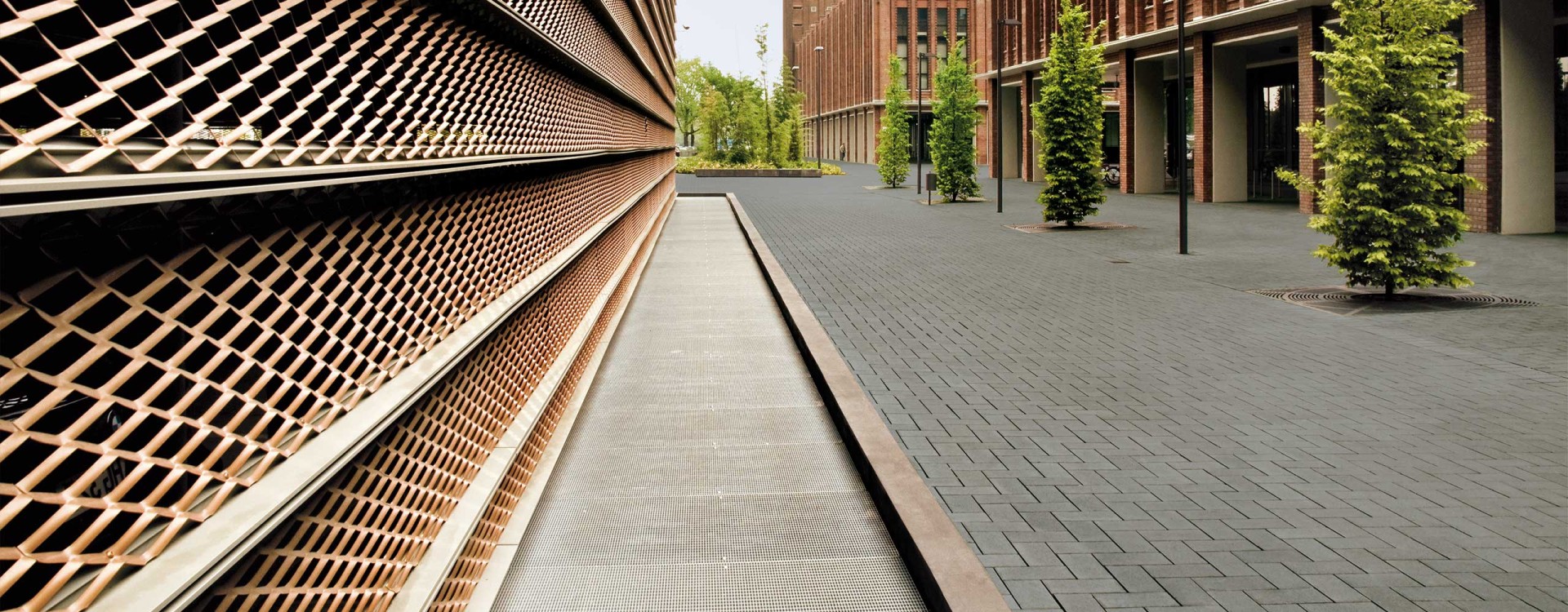

Cologne (D), Rheinpark Metropole, Cubus anthracite.
Cologne (D), Rheinpark Metropole, Cubus anthracite.

Cubus ist ein Produkt für Puristen. Klar, geradlinig und schnörkellos kommen die acht bis achtzehn Zentimeter starken Pflastersteine mit einer stark verdichteten, homogenen Architekturbeton-Oberfläche daher. Die Kanten sind wahlweise gefast oder ungefast. Bei über siebzig möglichen Steinformaten sorgen große Formate und ein entsprechend geringer Fugenanteil für einen hohen Gehkomfort im privaten wie öffentlichen Bereich. Kleine Formate hingegen sind besonders strapazierfähig und zeigen sich robust auch gegenüber höheren Verkehrslasten. Die anthrazitfarbene Steinoberfläche weist eine hohe Farbbeständigkeit auf und ist zudem frost- und tausalzbeständig. Mit Cubus lassen sich großzügige, monochrome Flächen im Außenbereich zu einem attraktiven Preis gestalten.



Cubus
Colours
Properties
Standard sizes
Object sizes
Gallery
Editions
CDFarben
References
Laying pattern calculator
System Bahnenware
Downloads
Links
Dealers

Colours

Objectcolour 1519
Objectcolour 1519
Grey
Grey
Anthracite
Anthracite
Objectcolour 1419
Objectcolour 1419
Objectcolour 1412
Objectcolour 1412
Objectcolour 2516
Objectcolour 2516

 Wir zeigen Ihnen hier eine Auswahl möglicher Farbvarianten. Das Cubus-Programm bietet Ihnen darüber hinaus eine Vielzahl weiterer Farben. Sprechen Sie uns bitte an.

Properties

  • Fine, highly dense surface.
  • High colour fastness.
  • Wide range of sizes. Stone thicknesses from 5 to 18 cm possible. Available with and without chamfer.
  • Reduced water absorption due to face concrete hydrophobizing.
  • Frost and de-icing salt resistant.
  • Slip-resistant.
  • Special stone hardening process through climate-controlled surface finishing.
  • Climate-neutral production.

Blue Air® Technology

(optional)

  • Photocatalytic process corresponding to the ideal of nature.
  • Reduction of harmful nitrogen oxides from the air and conversion into nitrates.
  • The process is active throughout the service life of the concrete stone.
  • The catalyst as such does not consume itself.

Standard sizes

Filter:

Pavers

30 x 10 x 8 cm
GreyAnthracite
DIN EN 1338 KDI
permeable to water
drivable
40 x 20 x 8 cm
GreyAnthracite
DIN EN 1339 PKDUI 14
permeable to water
drivable
60 x 30 x 8 cm
GreyAnthracite
DIN EN 1339 PKDUI 11
drivable

Running bond

Corio Kombiform v1
GreyAnthracite
permeable to water
drivable

Cubus Reihenverband 8 cm

Lieferung lagenweise
In einer Lage sind
2 Stück 40 x 16 x 8 cm, DIN EN 1339 PKDUI
2 Stück 35 x 16 x 8 cm, DIN EN 1339 PKDUI
6 Stück 30 x 16 x 8 cm, DIN EN 1338
6 Stück 25 x 16 x 8 cm, DIN EN 1338
6 Stück 35 x 12 x 8 cm, DIN EN 1339 PKDUI
6 Stück 25 x 12 x 8 cm, DIN EN 1338
Eine Lage = 1,20 m2

All dimensions given are grid dimensions including spacers and joint proportion.


Also available as eco-pavers.

For more information please contact us.

Object sizes

Without bevel edge

Plansizenominal sizeDIN EN Classification
25 x 25 x 5 246 x 246 x 50DIN EN 1339 PKDUI 7
50 x 25 x 5 496 x 246 x 50DIN EN 1339 PKDUI 7
50 x 50 x 5 496 x 496 x 50DIN EN 1339 PKDUI 7

15 x 15 x 8 146,5 x 146,5 x 80DIN EN 1338 KDI
22,5 x 15 x 8 221,5 x 146,5 x 80DIN EN 1338 KDI
25 x 12,5 x 8 246 x 121 x 80DIN EN 1338 KDI
25 x 25 x 8 246 x 246 x 80DIN EN 1338 KDI
37,5 x 12,5 x 8 371 x 121 x 80DIN EN 1339 PKDUI 7
37,5 x 25 x 8 371 x 246 x 80DIN EN 1339 PKDUI 14
40 x 10 x 8 396 x 96 x 80DIN EN 1339 PKDUI 7
40 x 40 x 8 396 x 396 x 80DIN EN 1339 PKDUI 25
45 x 22,5 x 8 446 x 221 x 80DIN EN 1339 PKDUI 11
45 x 45 x 8 446 x 446 x 80DIN EN 1339 PKDUI 25
50 x 15 x 8 496 x 146 x 80DIN EN 1339 PKDUI 7
50 x 25 x 8 496 x 246 x 80DIN EN 1339 PKDUI 11
50 x 40 x 8 496 x 396 x 80DIN EN 1339 PKDUI 14
50 x 50 x 8 496 x 496 x 80DIN EN 1339 PKDUI 25
100 x 50 x 8 996 x 496 x 80DIN EN 1339 PKDUI 11
100 x 100 x 8 996 x 996 x 80DIN EN 1339 PKDUI 14

12,5 x 12,5 x 10 121 x 121 x 100DIN EN 1338 KDI
25 x 12,5 x 10 246 x 121 x 100DIN EN 1338 KDI
25 x 25 x 10 246 x 246 x 100DIN EN 1338 KDI
37,5 x 25 x 10 371 x 246 x 100DIN EN 1338 KDI
60 x 30 x 10 594,5 x 294,5 x 100DIN EN 1339 PKDUI 14

15 x 15 x 12 144,5 x 144,5 x 120DIN EN 1338 KDI
20 x 15 x 12 194,5 x 144,5 x 120DIN EN 1338 KDI
22,5 x 22,5 x 12 219,5 x 219,5 x 120DIN EN 1338 KDI
30 x 15 x 12 294,5 x 144,5 x 120DIN EN 1338 KDI
40 x 20 x 12 394,5 x 194,5 x 120DIN EN 1338 KDI
40 x 40 x 12 394,5 x 394,5 x 120DIN EN 1338 KDI
45 x 22,5 x 12 444,5 x 219,5 x 120DIN EN 1338 KDI
50 x 10 x 12 494,5 x 100 x 120DIN EN 1339 PKDUI 11
60 x 40 x 12 594,5 x 394,5 x 120DIN EN 1339 PKDUI 30

25 x 25 x 14 244,5 x 244,5 x 140DIN EN 1338 KDI
37,5 x 25 x 14 369,5 x 244,5 x 140DIN EN 1338 KDI
50 x 50 x 14 494,5 x 494,5 x 140DIN EN 1338 KDI
60 x 60 x 14 594,5 x 594,5 x 140DIN EN 1339 PKDUI 30

Bevel edge

Plansizenominal sizeDIN EN Classification
10 x 10 x 8 96,5 x 96,5 x 80DIN EN 1338 KDI
20 x 10 x 8 196,5 x 96,5 x 80DIN EN 1338 KDI
20 x 15 x 8 196,5 x 146,5 x 80DIN EN 1338 KDI
20 x 20 x 8 194,5 x 194,5 x 80DIN EN 1338 KDI
30 x 10 x 8 *296 x 96 x 80DIN EN 1338 KDI
30 x 15 x 8 294,5 x 144,5 x 80DIN EN 1338 KDI
30 x 20 x 8 296,5 x 196,5 x 80DIN EN 1338 KDI
30 x 30 x 8 296,5 x 296,5 x 80DIN EN 1338 KDI
37,5 x 12,5 x 8 371 x 121 x 80DIN EN 1339 PKDUI 7
40 x 20 x 8 *396 x 196 x 80DIN EN 1339 PKDUI 14
60 x 30 x 8 *596 x 296 x 80DIN EN 1339 PKDUI 11

15 x 15 x 10 144 x 144 x 100DIN EN 1338 KDI
30 x 15 x 10 294 x 144 x 100DIN EN 1338 KDI
30 x 30 x 10 294 x 294 x 100DIN EN 1338 KDI
60 x 30 x 10 594,5 x 294,5 x 100DIN EN 1339 PKDUI 30
60 x 60 x 10 596,5 x 596,5  x 100DIN EN 1339 PKDUI 30

10 x 10 x 12 96 x 96 x 120DIN EN 1338 KDI
15 x 15 x 12 144,5 x 144,5 x 120DIN EN 1338 KDI
20 x 20 x 12 194 x 194 x 120DIN EN 1338 KDI
22,5 x 22,5 x 12 219,5 x 219,5 x 120DIN EN 1338 KDI
30 x 15 x 12 296,5 x 146,5 x 120DIN EN 1338 KDI
30 x 20 x 12 294,5 x 194,5 x 120DIN EN 1338 KDI
30 x 30 x 12 294 x 294 x 120DIN EN 1338 KDI
40 x 20 x 12 394,5 x 194,5 x 120DIN EN 1338 KDI
40 x 40 x 12 394,5 x 394,5 x 120DIN EN 1338 KDI
60 x 40 x 12 594,5 x 394,5 x 120DIN EN 1339 PKDUI 30

20 x 15 x 14 194,5 x 144,5 x 140DIN EN 1338 KDI
30 x 15 x 14 296,5 x 146,5 x 140DIN EN 1338 KDI
30 x 30 x 14 294,5 x 294,5 x 140DIN EN 1338 KDI
40 x 20 x 14 394,5 x 194,5 x 140DIN EN 1338 KDI
60 x 30 x 14 594,5 x 294,5 x 140DIN EN 1339 PKDUI 30
60 x 40 x 14 594,5 x 394,5 x 140DIN EN 1339 PKDUI 30
60 x 60 x 14 596,5 x 596,5 x 140DIN EN 1339 PKDUI 30
90 x 90 x 14 894 x 894 x 140DIN EN 1339 PKDUI 30

50 x 10 x 16 494,5 x 94,5 x 160 DIN EN 1338 KDI
60 x 30 x 16 594,5 x 294,5 x 160DIN EN 1338 KDI
60 x 60 x 16 596,5 x 596,5 x 160DIN EN 1338 KDI
80 x 40 x 16 794,5 x 394,5 x 160DIN EN 1339 PKDUI 30

40 x 20 x 18 394 x 194 x 180DIN EN 1338 KDI
60 x 40 x 18 594 x 394 x 180DIN EN 1338 KDI
80 x 60 x 18 794 x 594 x 180DIN EN 1339 PKDUI 30
100 x 70 x 18 994 x 694 x 180DIN EN 1339 PKDUI 30
120 x 60 x 18 1194,5 x 594,5 x 180DIN EN 1339 PKDUI 30
120 x 65 x 18 1196,5 x 646,5 x 180DIN EN 1339 PKDUI 30

Running bond

Corio Kombiform v1

Running bond 8 cm
Corio running bond is delivered in layers.

One layer contains
2 units 40 x 16 x 8 cm, DIN EN 1338 KDI
2 units 35 x 16 x 8 cm, DIN EN 1338 KDI
6 units 30 x 16 x 8 cm, DIN EN 1338 KDI
6 units 25 x 16 x 8 cm, DIN EN 1338 KDI
6 units 35 x 12 x 8 cm, DIN EN 1338 KDI
6 units 25 x 12 x 8 cm, DIN EN 1338 KDI
1 layer = 1,20 m2

Corio Kombiform v1

Running bond 10 cm
Corio running bond is delivered in layers.

One layer contains
2 units 40 x 16 x 10 cm, DIN EN 1338 KDI
2 units 35 x 16 x 10 cm, DIN EN 1338 KDI
6 units 30 x 16 x 10 cm, DIN EN 1338 KDI
6 units 25 x 16 x 10 cm, DIN EN 1338 KDI
6 units 35 x 12 x 10 cm, DIN EN 1338 KDI
6 units 25 x 12 x 10 cm, DIN EN 1338 KDI
1 layer = 1,20 m2

*stock-run products.


Also available as eco-pavers.

For more information please contact us.

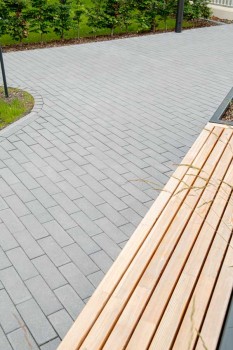

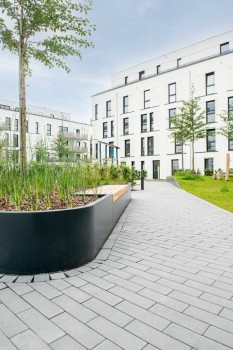

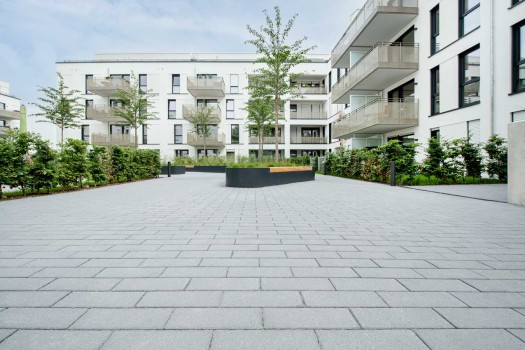

Gallery

Expand GalleryCollapse Gallery

References

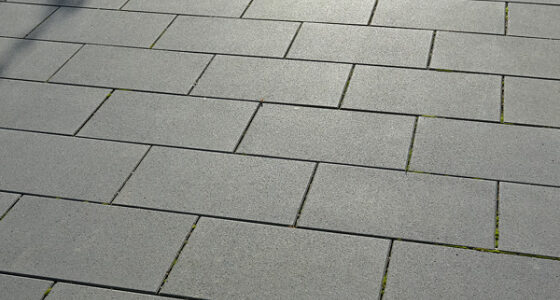

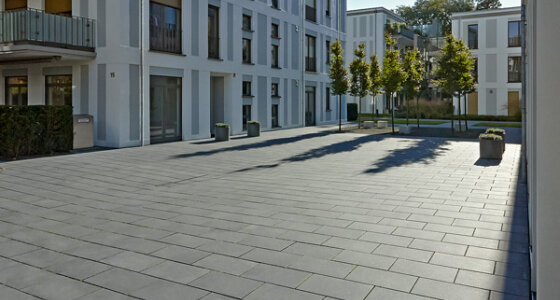

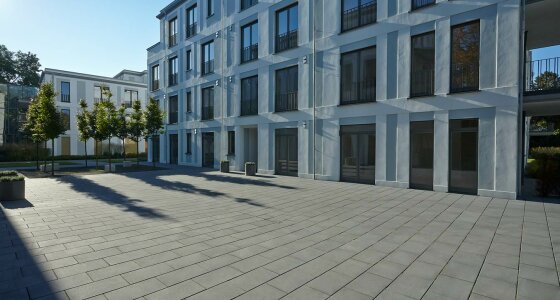

Cubus Pflasterstein 2273 6445

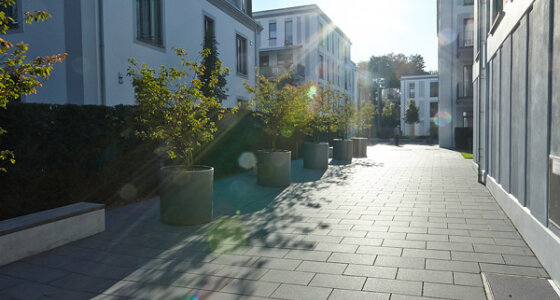

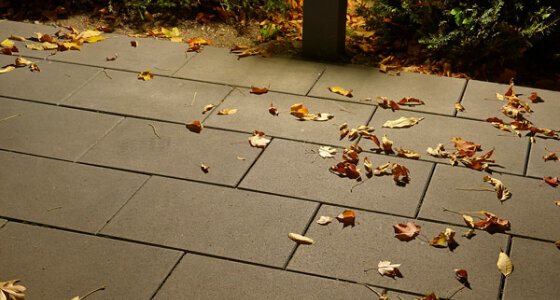

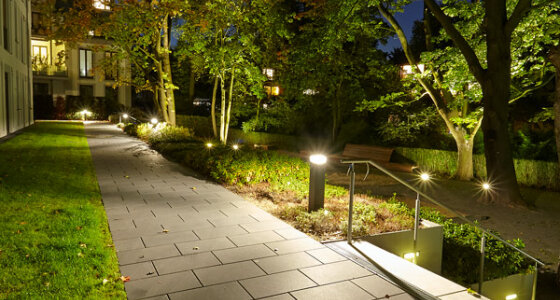

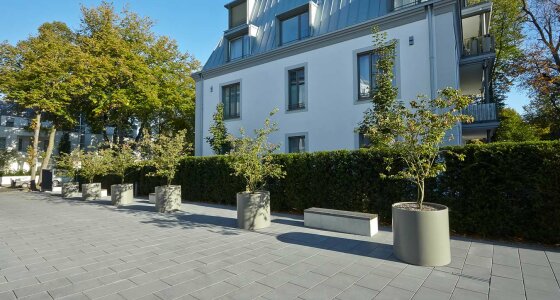

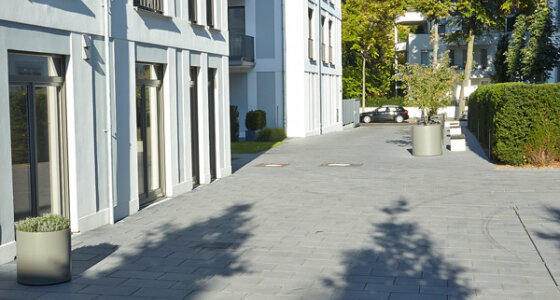

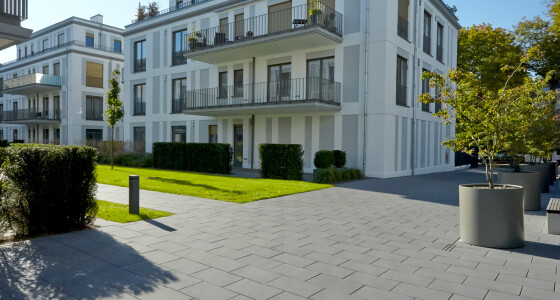

Lindenpalais, Köln
 Cubus Klangarten Koeln Porz 2452 12

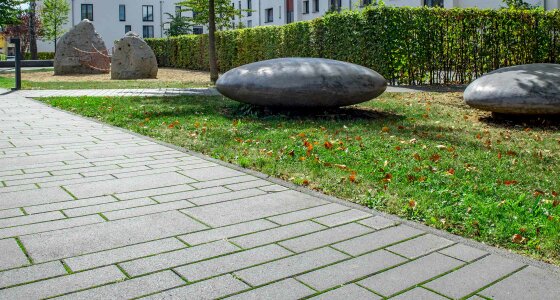

Klanggarten, Köln-Porz
