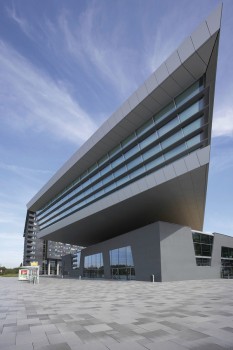

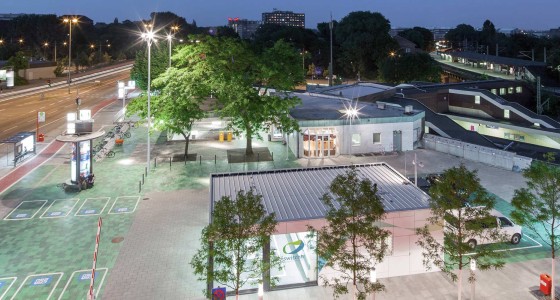

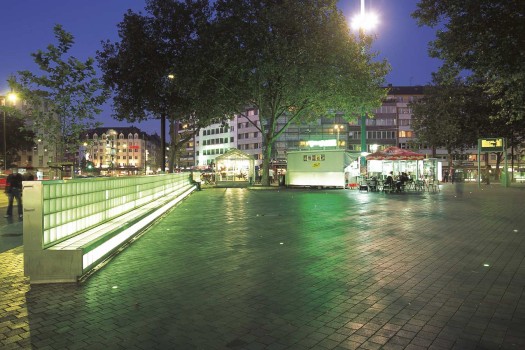

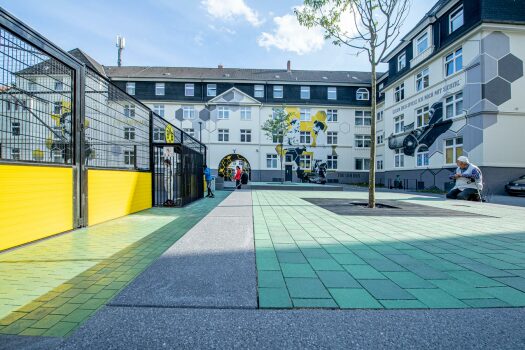

Hamburg (D), Hochbahn Berliner Tor, Belpasso Pesto

An impressively brilliant surface characterizes Belpasso. The innovative, patented surface refinement ensures a maximum possible resistance. Even after years of use – for example in highly frequented public areas - the Stone retains its special appearance. Belpasso is available as slab in 5 cm thickness as well as paving stone  in various thicknesses and sizes. The product surprises with a multitude of colors - from bright white to shades of Grey over strong colors of red, green or blue up to a vivid anthracite. The CleanTop® surface protection with Clean Factor CF 120 prevents pollution and weathering durable, reduces chewing gum adhesion, protects the special color of the Stone and avoids lime efflorescence, when professional handled. Belpasso was awarded with the Red Dot Design Award and nominated for the Design Award of the Federal Republic of Germany.

Colours

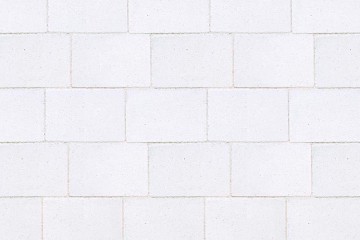

Bianco Brillant (uni)
Bianco Brillant (uni)

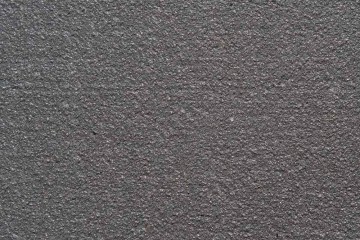

Grigio Brillant (uni)
Grigio Brillant (uni)
Grigio Brillant (iridescent)
Grigio Brillant (iridescent)
Nuvola Brillant (iridescent)
Nuvola Brillant (iridescent)
Cremo Brillant (iridescent)
Cremo Brillant (iridescent)
Castano brillant (iridescent)
Castano brillant (iridescent)
Mediterano Brillant (iridescent)
Mediterano Brillant (iridescent)
Diavolo Brillant (iridescent)
Diavolo Brillant (iridescent)

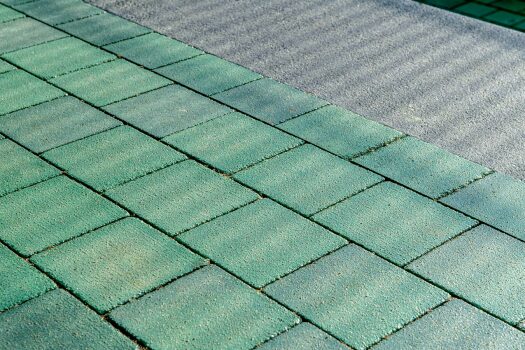

Pesto Brillant (iridescent)
Pesto Brillant (iridescent)
Oceano Brillant (iridescent)
Oceano Brillant (iridescent)

Properties

  • Paving system with innovative, brilliant, multi-modified silicate surface
  • CleanTop® surface with clean factor CF 120:
    • Extremly dirt repellent
    • Brilliant surface
    • Significantly easier to clean compared to a product without CleanTop®
    • Algae and moss inhibiting
    • Reduced chewing gum adhesion
    • High-pressure cleaner suitable
    • Free from lime efflorescence (when professional handled)
    • No subsequent impregnation necessary
  • Special method of stone hardening by a climate-guided surface processing
  • Non-slip
  • Resistant to frost and de-icing salt
  • METTEN innovation. Patented manufacturing process

Standard sizes

SLAB SYSTEMLENGTH
in cm		WIDTH
in cm		DEPTH
in cm		DINUTILIZATION

 15 15 8 DIN EN 1338 KDI Eigenschaften

 22,5 15 8 DIN EN 1338 KDI

 45 22,5 8 DIN EN 1339 PKDUI

All specified identifications are grid dimensions including spacers and joint portion.

Object sizes

without bevel edge:

PlansizeNominal sizeDIN EN Classification
25 x 25 x 5* 246 x 246 x 50 DIN EN 1339 PKDUI 7
50 x 25 x 5* 496 x 246 x 50 DIN EN 1339 PKDUI 4
50 x 50 x 5* 496 x 496 x 50 DIN EN 1339 PKDUI 7
60 x 30 x 5 596 x 296 x 50 DIN EN 1339 PKDUI 4

15 x 15 x 8 146,5 x 146,5 x 80 DIN EN 1338 KDI
22,5 x 15 x 8 221,5 x 146,5 x 80 DIN EN 1338 KDI
25 x 12,5 x 8 246 x 121 x 80 DIN EN 1338 KDI
25 x 25 x 8 246 x 246 x 80 DIN EN 1338 KDI
30 x 30 x 8 296,5 x 296,5 x 80 DIN EN 1338 KDI
37,5 x 25 x 8 371 x 246 x 80 DIN EN 1339 PKDUI 14
40 x 10 x 8 396 x 96 x 80 DIN EN 1339 PKDUI 7
45 x 22,5 x 8 446 x 221 x 80 DIN EN 1339 PKDUI 11
45 x 45 x 8 446 x 446 x 80 DIN EN 1339 PKDUI 25
50 x 15 x 8 496 x 146 x 80 DIN EN 1339 PKDUI 7
50 x 25 x 8 496 x 246 x 80 DIN EN 1339 PKDUI 11
50 x 40 x 8 496 x 396 x 80 DIN EN 1339 PKDUI 14
50 x 50 x 8 496 x 496 x 80 DIN EN 1339 PKDUI 25
60 x 30 x 8 596 x 296 x 80 DIN EN 1339 PKDUI 11
100 x 50 x 8 996 x 496 x 80 DIN EN 1339 PKDUI 11

12,5 x 12,5 x 10 121 x 121 x 100 DIN EN 1338 KDI
25 x 12,5 x 10 246 x 121 x 100 DIN EN 1338 KDI
25 x 25 x 10 246 x 246 x 100 DIN EN 1338 KDI
37,5 x 25 x 10 371 x 246 x 100 DIN EN 1338 KDI

15 x 15 x 12 144,5 x 144,5 x 120 DIN EN 1338 KDI
20 x 15 x 12 194,5 x 144,5 x 120 DIN EN 1338 KDI
22,5 x 22,5 x 12 219,5 x 219,5 x 120 DIN EN 1338 KDI
25 x 25 x 12 244,5 x 244,5 x 120 DIN EN 1338 KDI
30 x 15 x 12 294,5 x 144,5 x 120 DIN EN 1338 KDI
40 x 20 x 12 394,5 x 194,5 x 120 DIN EN 1338 KDI
40 x 40 x 12 394,5 x 394,5 x 120 DIN EN 1338 KDI
45 x 22,5 x 12 444,5 x 219,5 x 120 DIN EN 1338 KDI
50 x 25 x 12 494,5 x 244,5 x 120 DIN EN 1339 PKDUI 30
50 x 50 x 12 494,5 x 494,5 x 120 DIN EN 1339 PKDUI 30
60 x 40 x 12 594,5 x 394,5 x 120 DIN EN 1339 PKDUI 30

22,5 x 15 x 14 219,5 x 144,5 x 140 DIN EN 1338 KDI
25 x 25 x 14 244,5 x 244,5 x 140 DIN EN 1338 KDI
37,5 x 25 x 14 369,5 x 244,5 x 140 DIN EN 1338 KDI
50 x 50 x 14 494,5 x 494,5 x 140 DIN EN 1338 KDI
60 x 30 x 14 594,5 x 294,5 x 140 DIN EN 1339 PKDUI 30
60 x 60 x 14 594,5 x 594,5 x 140 DIN EN 1339 PKDUI 30
*stock-run products.
Regarding the minimum quantities for object formats (no extra cost) and the combination of sizes please contact us. All specified identifications are grid dimensions including spacers and joint portion.

Laying pattern calculator

Belpasso Pattern 01
PATTERN 01
Belpasso Pattern 01

Pattern 01

Number of units per m²:
15 x 15 cm approx. 44,44 units

m²
units
Belpasso Pattern 02
PATTERN 02
Belpasso Pattern 02

Pattern 02

Central arrangement
Number of units per m²:
15 x 15 cm approx. 44,44 units
Edge units must be cut to size on site where necessary.

m²
units
Belpasso Pattern 03
PATTERN 03
Belpasso Pattern 03

Pattern 03

1/3 arrangement
Number of units per m²:
15 x 15 cm approx. 44,44 units
Edge units must be cut to size on site where necessary.

m²
units
Belpasso Pattern 10
PATTERN 10
Belpasso Pattern 10

Pattern 10

Number of units per m²:
15 x 15 cm approx. 11.1 units
22.5 x 15 cm approx. 22.2 units
Edge units per running metre:
15 x 15 cm approx. 3.3 units

m²
units
units
rm
units
Belpasso Pattern 11
PATTERN 11
Belpasso Pattern 11

Pattern 11

Number of units per m²:
15 x 15 cm approx. 11.1 units
22.5 x 15 cm approx. 22.2 units
Edge units per running metre:
15 x 15 cm approx. 1.7 units

m²
units
units
rm
units
Belpasso Pattern 12
PATTERN 12
Belpasso Pattern 12

Pattern 12

Number of units per m²:
22.5 x 15 cm approx. 29.6 units
Edge units per running metre:
15 x 15 cm approx. 3.3 units

m²
units
rm
units
Belpasso Pattern 14
PATTERN 14
Belpasso Pattern 14

Pattern 14

Central arrangement
Number of units per m²:
45 x 22.5 cm approx. 9.9 units
Edge units must be cut to size on site where necessary.

m²
units
Belpasso Pattern 15
PATTERN 15
Belpasso Pattern 15

Pattern 15

1/3 arrangement
Number of units per m²:
45 x 22.5 cm approx. 9.9 units
Edge units must be cut to size on site where necessary.

m²
units
Belpasso Pattern 16
PATTERN 16
Belpasso Pattern 16

Pattern 16

Number of units per m²:
45 x 22.5 cm approx. 9.9 units
Edge units must be cut to size on site where necessary.

m²
units
Belpasso Pattern 18
PATTERN 18
Belpasso Pattern 18

Pattern 18

Arrangement in rows
22,5 x 15 cm
45 x 22,5 cm
Edge units must be cut to size on site where necessary.

Belpasso Pattern 003
PATTERN 003
Belpasso Pattern 003

Pattern 003

Number of units per m²:
50 x 50 cm approx. 3,2 units
25 x 25 cm approx. 3,2 units
Edge units per running meter:
25 x 25 cm approx. 2,5 units


m²
units
units
rm
units
Belpasso Pattern 004
PATTERN 004
Belpasso Pattern 004

Pattern 004



Number of units per m²:
25 x 25 cm approx. 16 units

Edge units must be cut to size on site

m²
units
Belpasso Pattern 005
PATTERN 005
Belpasso Pattern 005

Pattern 005

Number of units per m²:
50 x 50 cm approx. 4 units
Edge units per running meter:
25 x 25 cm approx. 2 units


m²
units
rm
units
Belpasso Pattern 006
PATTERN 006
Belpasso Pattern 006

Pattern 006



Number of units per m²:
50 x 50 cm approx. 4 units

m²
units

The quantity of vertical bond depends on the structural situation.
Laying patterns and hatching are available on request.
