Renzo Aqua Ökopflaster wasserdurchlässig

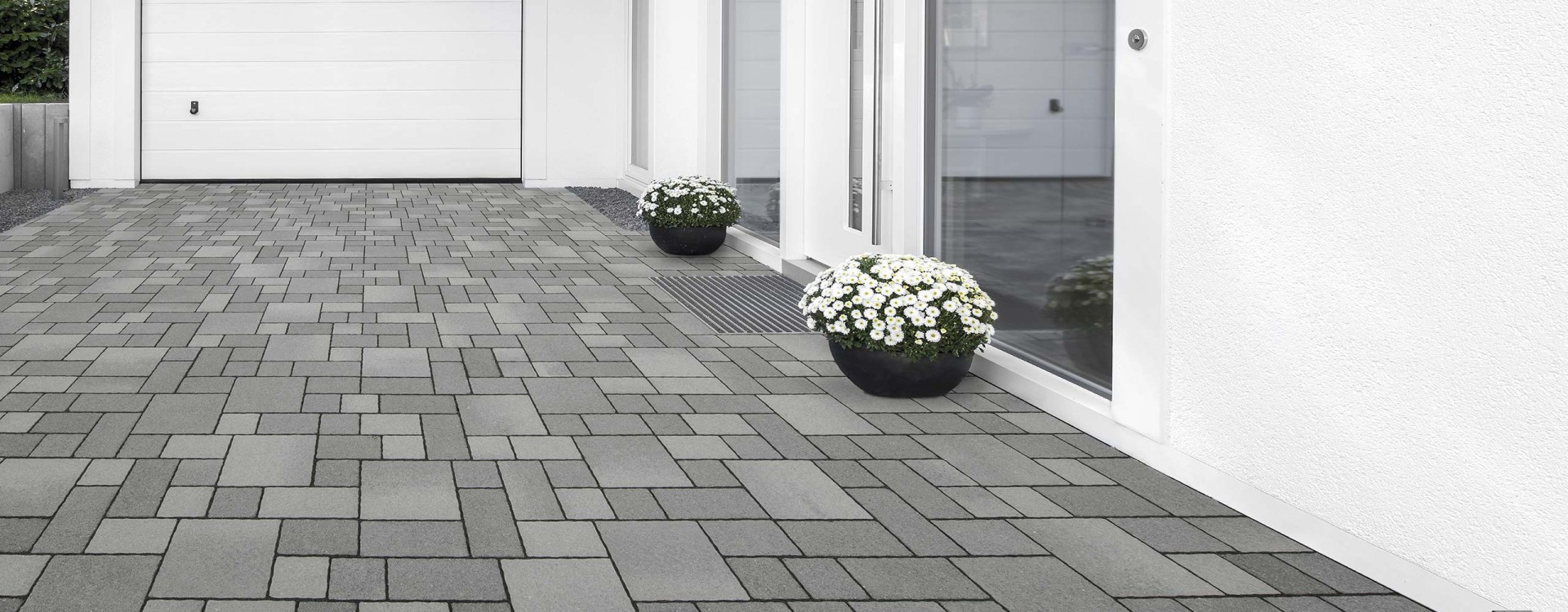

Renzo anthracite.

Eco-pavers with natural stone character.

A wide variety of sizes and colours - irregularities and breaks create surfaces that develop an independent life. Renzo Aqua is a special eco-pavement for architects and landscape architects who are planning areas with a lively character in public spaces with a smaller budget. Service roads, parking lots, path designs, parks, driveways - thanks to its attractive laying pattern and the specified size mix, Renzo Aqua features a harmonious play of colours with grey, medium grey and anthracite, and can be used - with the appropriate superstructure (bedding and jointing material) - to unseal surfaces. Concrete stones that looks like natural stones - Renzo Aqua.

Renzo
Colours
Properties
Standaardformaten
Object sizes
Gallery
References
Laying pattern
Video
Downloads

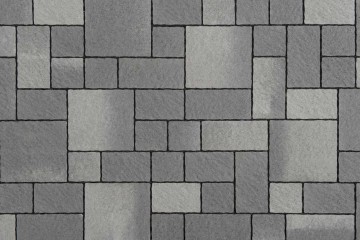

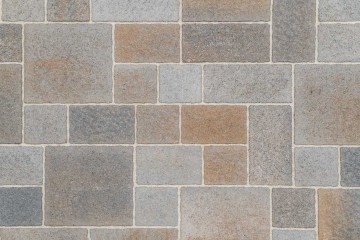

Colours

Properties

  • Infiltration of rainwater through the 5.5 mm wide stone joints.
  • High water permeability: at least 899 l / (s.ha)., which exceeds the guideline values of “ATV Arbeitsblatt A 138” by 500 l / (s.ha)*. The expert´s report on the infiltration capacity can be requested from us (for free).

*The joints are to be filled with chippings of 2-5 mm. Pavement bed and base layer require an appropriate water permeability

Standaardformaten

pavingLeNGth
in cm
width
in cm
thickness
in cm
applications

26,6 26,6 8 Eigenschaften

26,6 13,3 8

20 13,3 8

13,3 13,3 8

Renzo is delivered in layers.
One layer contains:
4 units 26,6 x 26,6 x 8 cm,
6 units 26,6 x 13,3 x 8 cm,
6 units 20 x 13,3 x 8 cm,
11 units 13,6 x 13,3 x 8 cm.
1 layer = 0,85 m2

All dimensions given are grid dimensions including spacers and joint proportion.

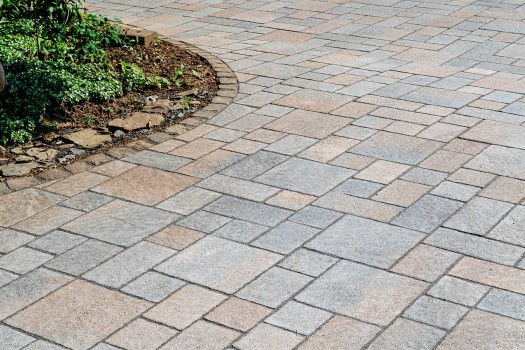

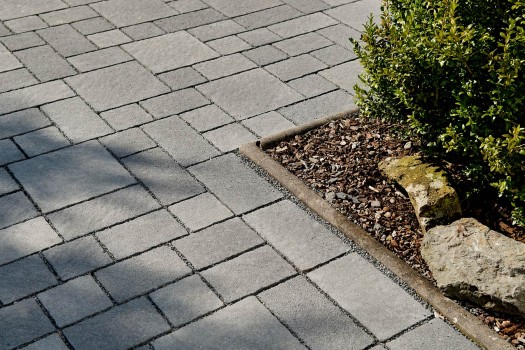

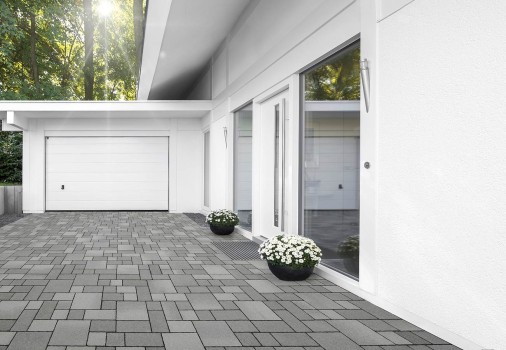

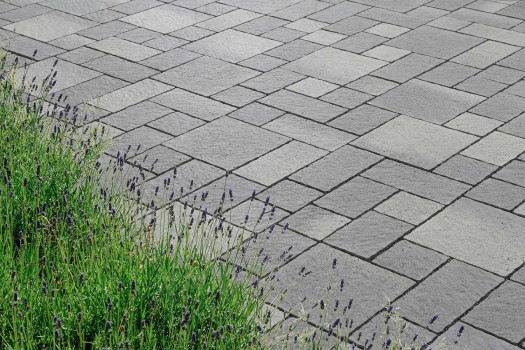

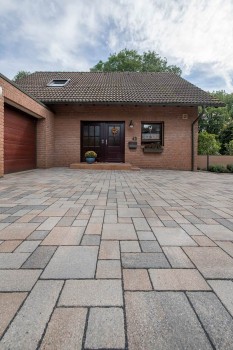

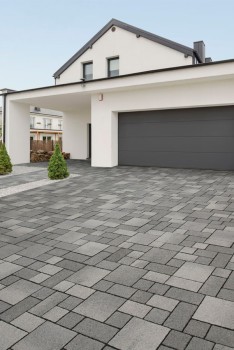

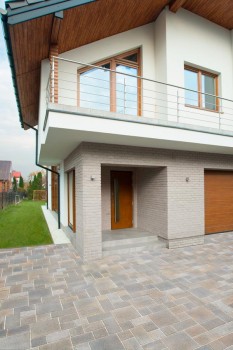

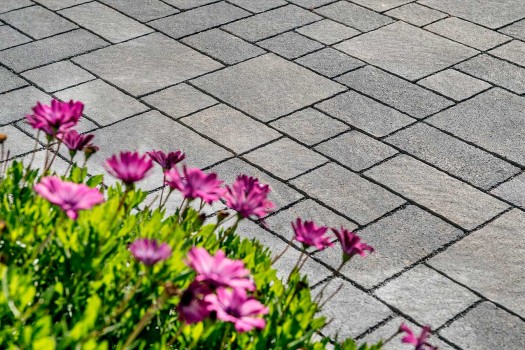

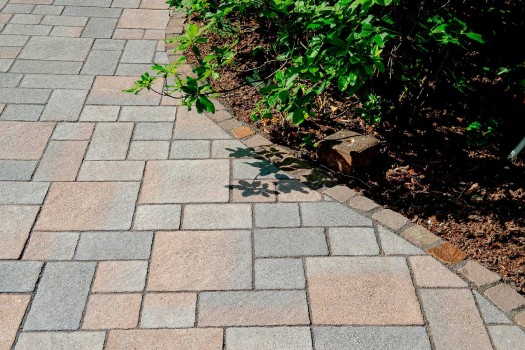

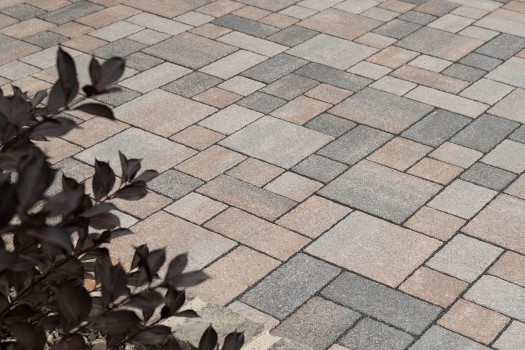

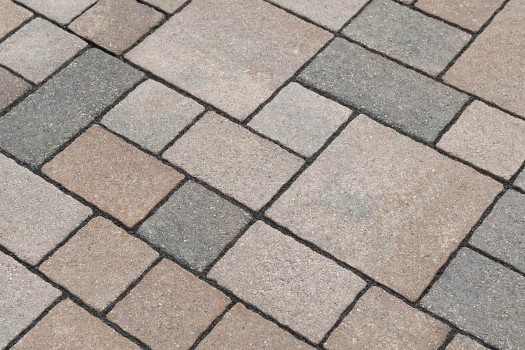

Gallery

Tools

Laying pattern calculator

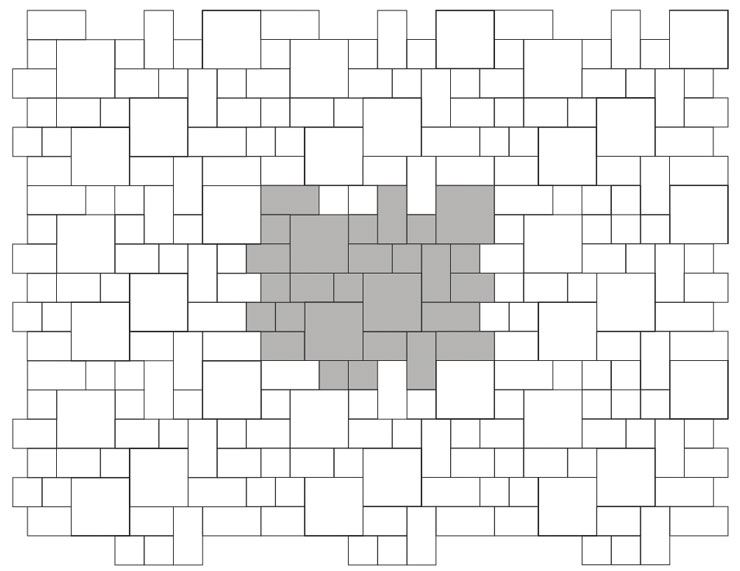

Renzo Pattern 01
PATTERN 01
Renzo Pattern 01

Pattern 01

Verlegemuster 0,85 m²

Bedarf 26,6 x 26,6: 4 St.
Bedarf 26,6 x 13,3: 6 St.
Bedarf 20 x 13,3: 6 St.
Bedarf 13,3 x 13,3: 11 St.

Lieferung nur lagenweise
