Paving stones of the infiltratable Aqua system enable the unsealing of surfaces without loss of aesthetics. AquaPrima is a filter aerated stone consisting of two water-permeable concrete block layers. The fine pored upper layer ensures that no coarse contamination impairs its functionality. AquaPrima can be combined especially with the conventional stones of the Terra system, which complement each other visually. This is the special strength of the Aqua system. An intelligent synthesis of ecology and design.

Aquaprima
Colours
Properties
Standard sizes
Object sizes
Gallery
Editions
CDFarben
References
Technical product information
Laying pattern calculator
Verlegehinweise
Downloads
Links
Dealers

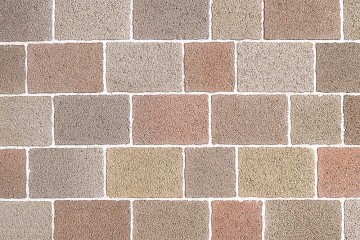

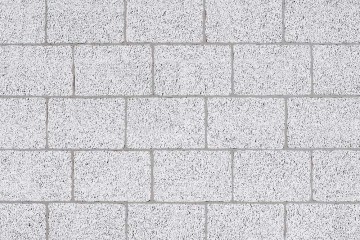

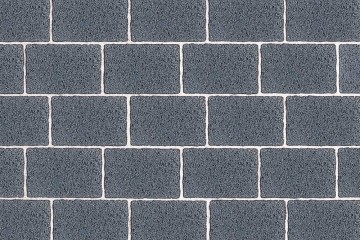

Colours

Properties

  • High water permeability.
  • Good walkability.
  • Manufactured in accordance with DIN 18507 and the "Guideline for the production and quality control of water-permeable paving stones made of aggregate concrete" of the "Bundesverband Deutsche Beton- und Fertigteilindustrie".
  • Infiltration rate: average 800 l/(s.ha). This far exceeds the guideline values of "ATV" Worksheet A 138 van 500 l/(s.ha). The report can be requested from us.
  • Special stone hardening process through climate-controlled surface finishing.
  • Climate-neutral production.

Object sizes

Without bevel edge

Plansizenominal sizeDIN EN Classification
12,5 x 12,5 x 8 123,5 x 123,5 x 80In Anlehnung an DIN EN 1338 KDI
18,75 x 12,5 x 8 186 x 123,5 x 80In Anlehnung an DIN EN 1338 KDI

12,5 x 12,5 x 10 123,5 x 123,5 x100In Anlehnung an DIN EN 1338 KDI
18,75 x 12,5 x 10 186 x 123,5 x 100In Anlehnung an DIN EN 1338 KDI


All dimensions given are grid dimensions including spacers and joint proportion.
Regarding the minimum purchase quantities (no surcharge) please contact us.

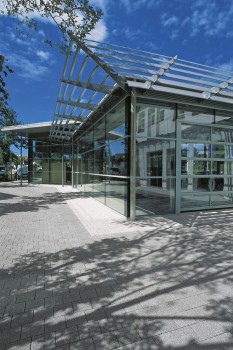

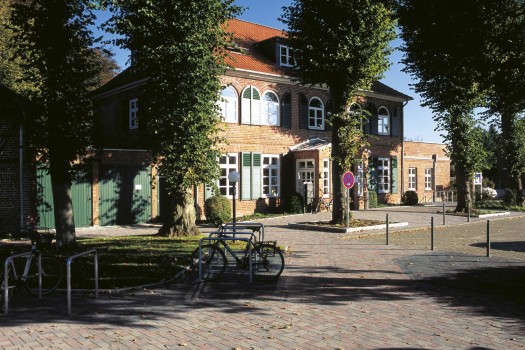

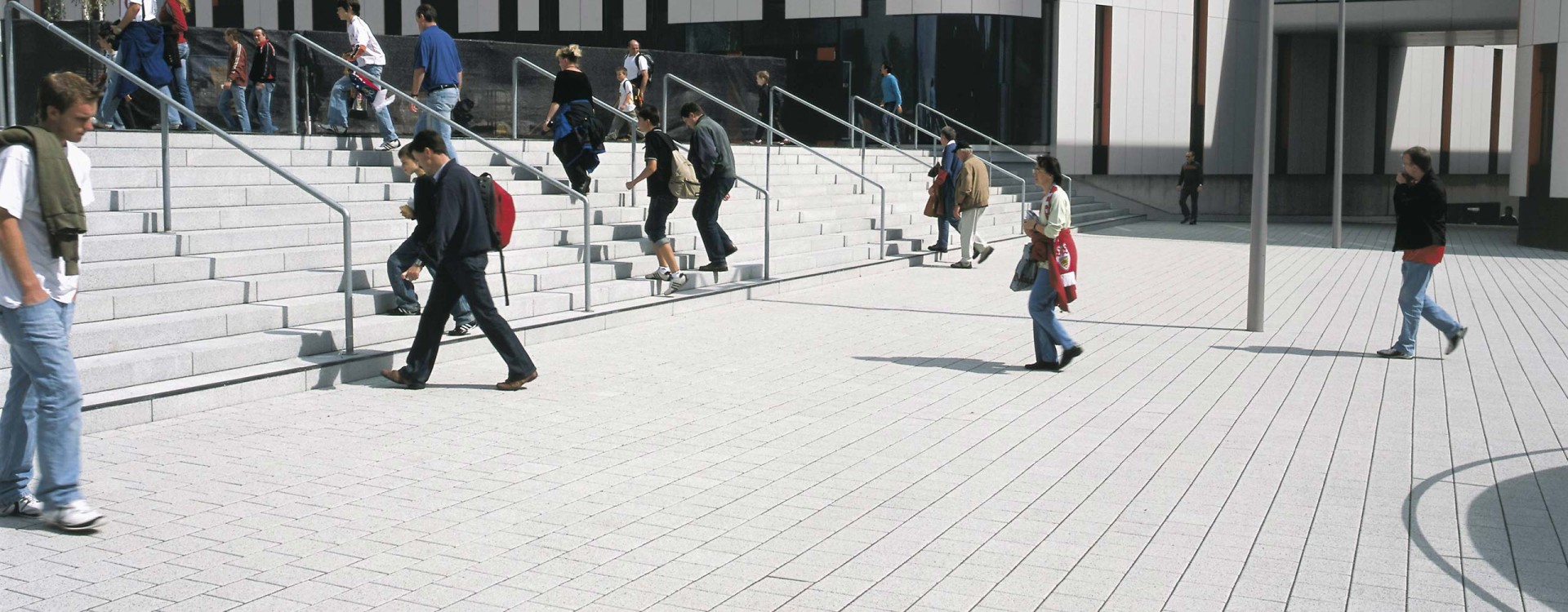

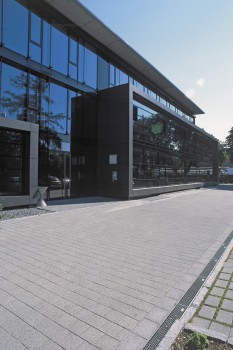

Gallery

Technical product information

grid dimension
(LxBxH mm)
ca. units je m² units per layer m² per layer units per pallet m² per pallet weight ca. kg per m² calculation unit
12,5 x 12,5 x 8 cm
(123,5 x 123,5 x 80)
64 63 0,98 504 7,84 165
18,75 x 12,5 x 8 cm
(186 x 123,5 x 80)
43 42 0,98 336 7,84 165
- AquaPrima, joint chippings  1/3
- Chippings 2/5 mm
- Filter-stable crushed stone mix with a water permeability of at least 5,4 x 10-5 (in m/s).
The dimensioning of the base course depends in each case on the traffic load and the condition of the subsoil.
- Natural soil

Important notes for base course and bedding:

In order for precipitation to flow to the deeper soil layers and thus ultimatelý to the natural water cycle, the paving bed and base course also require appropriate water permeabiliy.
For the base course, therefore, mineral mixtures must be used that have a water permeability of at least 5,4 x 10-5 (in m/s). This is the case, for example, with crushed stone in grain sizes 0/32, 0/45, 0/56 if the elutriable components (in % by weight) are 7 %.
After compacting the base layer, a paving bed of approx. 4 cm of chippings 2-5 mm is applied. Then the pavement can be laid.

Laying pattern calculator

Aquaprima Pattern 08
PATTERN 08
 Pattern 08

Pattern 08

Number of units per m²:
12,5 x 12,5 cm: 16 units
18,75 x 12,5 cm: 32 units
Edge units per running metre:
12,5 x 12,5 cm: 2 units

Pattern 081/10

units
units
rm
units
Aquaprima Pattern 11
PATTERN 11
 Pattern 11

Pattern 11

Number of units per m²:
12,5 x 12,5 cm: 64 units
Edge units per running metre:
18,75 x 12,5 cm: 4 units

Pattern 112/10

units
rm
units
Aquaprima Pattern 12
PATTERN 12
 Pattern 12

Pattern 12

Number of units per m²:
18,75 x 12,5 cm: 43 units
Edge units per running metre:
12,5 x 12,5 cm: 4 units

Pattern 123/10

units
rm
units
Aquaprima Pattern 13
PATTERN 13
 Pattern 13

Pattern 13

Number of units per m²:
12,5 x 12,5 cm: 16 units
18,75 x 12,5 cm: 32 units
Edge units per running metre:
12,5 x 12,5 cm: 4 units

Pattern 134/10

units
units
rm
units
Aquaprima Pattern 14
PATTERN 14
 Pattern 14

Pattern 14

Number of units per m²:
12,5 x 12,5 cm approx. 47 units
18,75 x 12,5 cm approx. 23 units

Pattern 145/10

units
units
Aquaprima Pattern 20
PATTERN 20
 Pattern 20

Pattern 20

Number of units per m²:
12,5 x 12,5 cm: 18,3 units
18,75 x 12,5 cm: 30,5 units

Pattern 206/10

units
units
Aquaprima Pattern 21
PATTERN 21
 Pattern 21

Pattern 21

Number of units per m²:
12,5 x 12,5 cm: 22 units
18,75 x 12,5 cm: 28 units

Pattern 217/10

units
units
Aquaprima Pattern 22
PATTERN 22
 Pattern 22

Pattern 22

Number of units per m²:
12,5 x 12,5 cm: 25 units
18,75 x 12,5 cm: 26 units

Pattern 228/10

units
units
Aquaprima Pattern 23
PATTERN 23
 Pattern 23

Pattern 23

Number of units per m²:
12,5 x 12,5 cm: 32 units
18,75 x 12,5 cm: 22 units
Edge units per running metre:
12,5 x 12,5 cm: 2 units

Pattern 239/10

units
units
rm
units
Aquaprima Pattern 24
PATTERN 24
 Pattern 24

Pattern 24

Number of units per m²:
12,5 x 12,5 cm: 9 units
18,75 x 12,5 cm: 37 units

Pattern 2410/10

units
units

The required quantity depends on the individual, local conditions.
