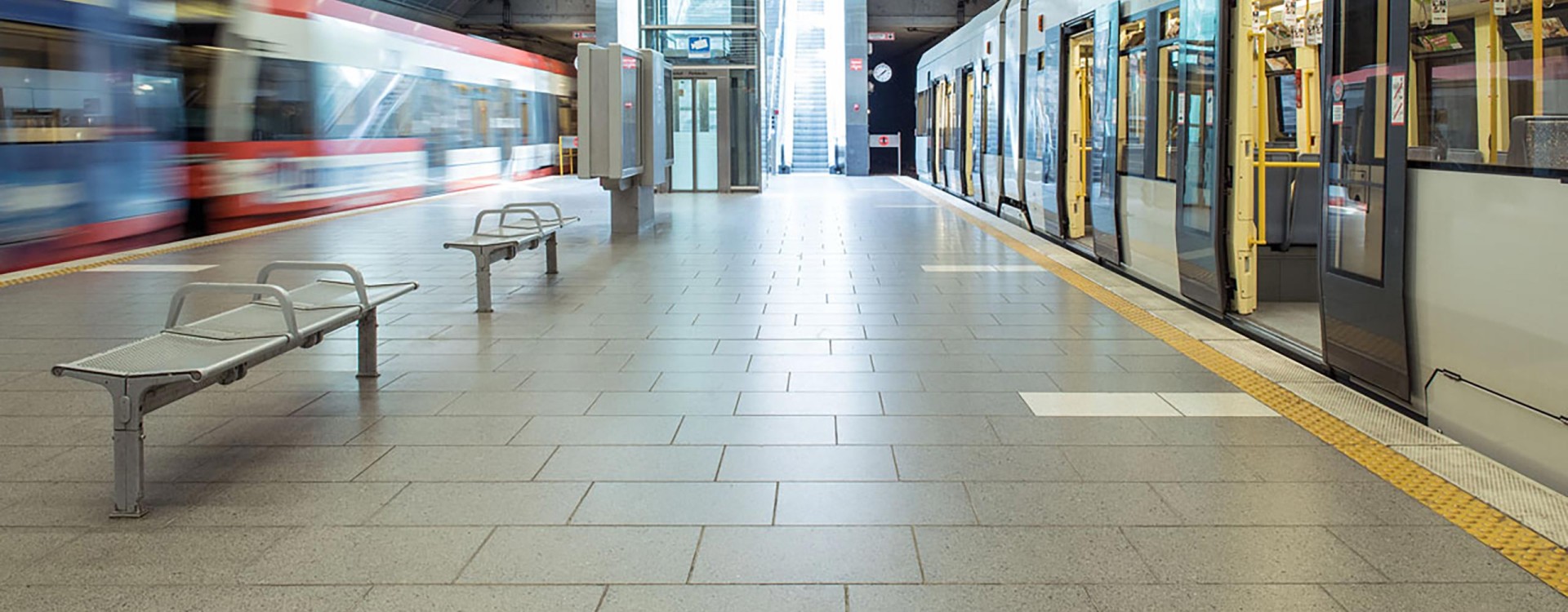

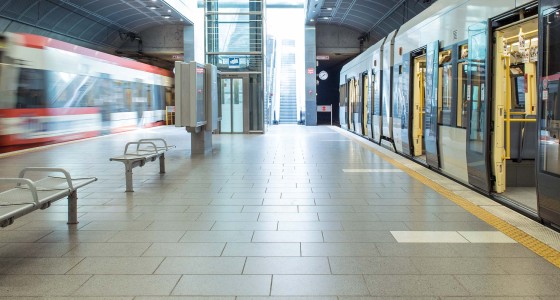

U-Bahnhof, Bensberg

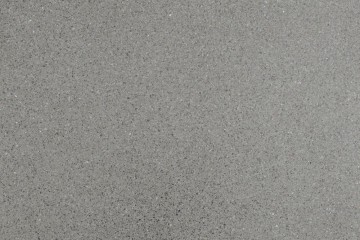

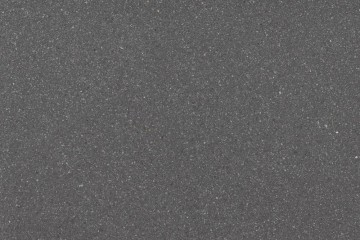

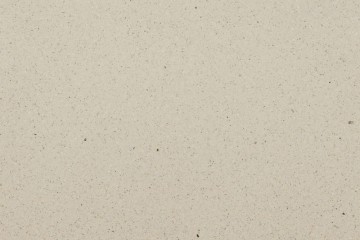

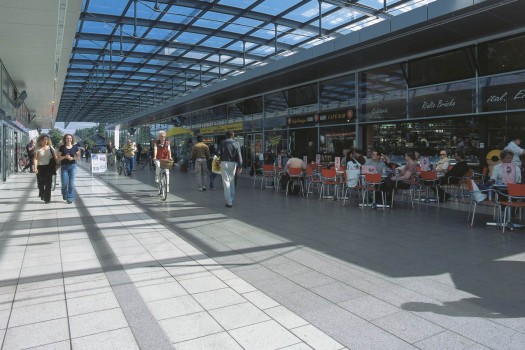

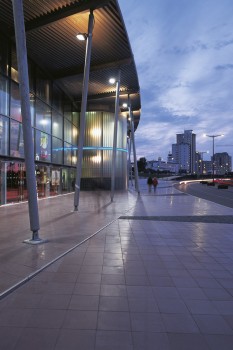

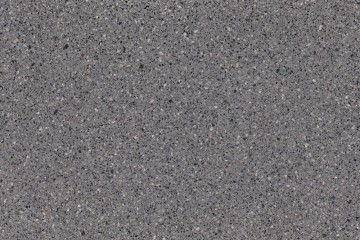

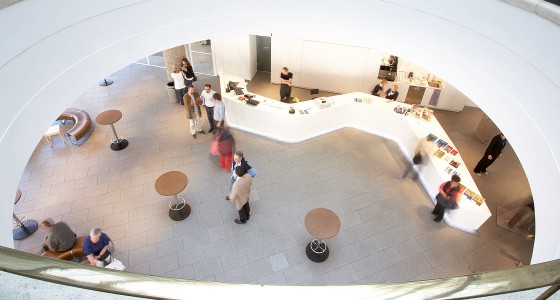

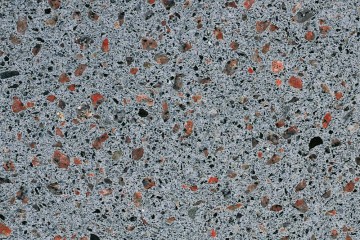

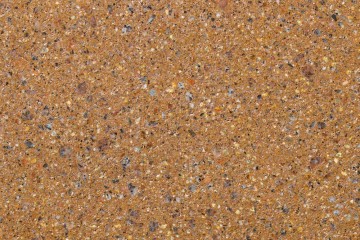

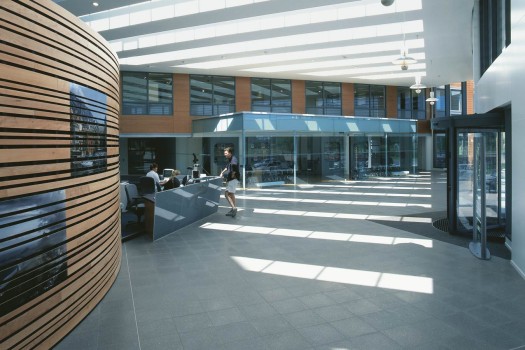

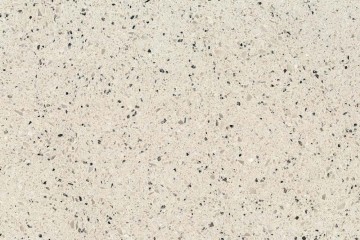

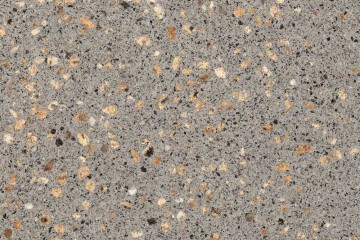

Special projects deserve special solutions. From elegantly homogeneous to speckled with character - the finely ground surface of Platinum provides a wide range of colour-coordinated natural stone chippings and combination options. Foyers, entrance areas, public terraces and even train platforms can be generously designed thanks to the variety of sizes from classic 40 x 40 cm to modern 80 x 40 cm. The robust slab with the high natural stone content continues the exclusive elegance from the inside to the outside. With generous sizes, the proportion of joints is reduced. Platinum has been tested for slip restistance (R 11) and is easy to clean due to the dirt-repellent CleanTop surface protection CF 100.
| Slabs | LENGTH in cm | WIDTH in cm | thickness in cm | DIN | applications |
|---|---|---|---|---|---|
|
|
80 | 40 | 3,9 | DIN EN 1339 PKDUI |  |
| Steps | 80 | 40 | 3,9 | DIN EN 1339 PKDUI |  |
With bevel edge: | ||
|---|---|---|
| Plansize | Nominal size | DIN EN Classification |
| 40 x 40 x 3,9 | 400 x 400 x 39 | DIN EN 1339 PKDUI 4 |
| 60 x 30 x 3,9 | 600 x 300 x 39 | DIN EN 1339 PKDUI 3 |
| 80 x 40 x 3,9 | 800 x 400 x 39 | DIN EN 1339 PKDUI 3 |
| 50 x 16 x 4,7 | 500 x 160 x 47 | DIN EN 1339 PKDUI 3 |
All dimensions given are grid dimensions including spacers and joint proportion.
Pattern 01
1/2 row arrangement with slabs 80 x 40 cm.
Number of units per m²: ca. 3,1 units
Edge units must be cut to size on site.
Pattern 02
1/3 row arrangement with slabs 80 x 40 cm.
Number of units per m²: ca. 3,1 units
Edge units must be cut to size on site.
Pattern 03
Number of units per m²: 80 x 40 cm ca. 3,1 units
The quantity of vertical bond depends on the structural situation.
Laying patterns and hatching are available on request.
