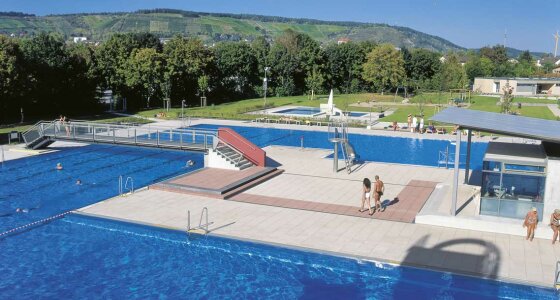

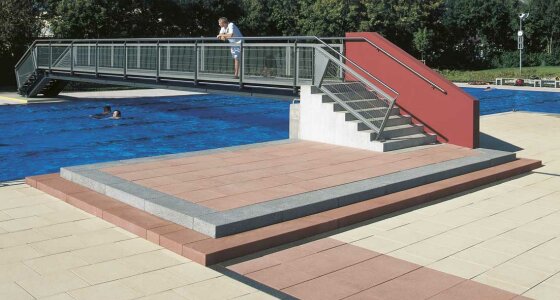

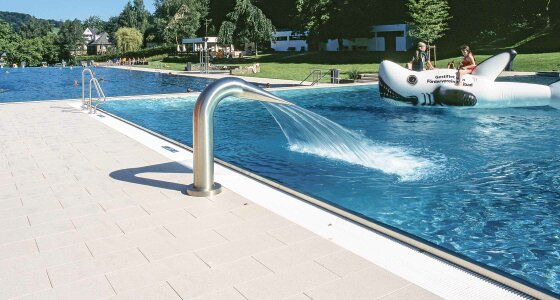

Freibad Hoffnungsthal

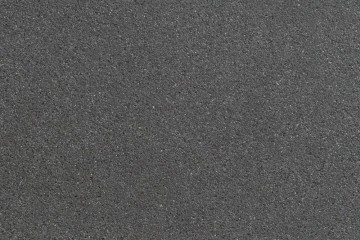

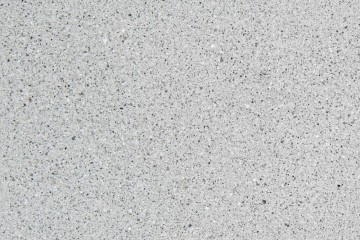

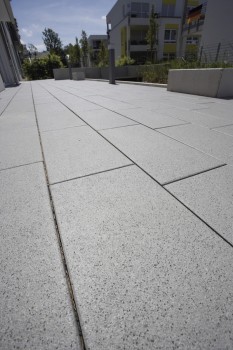

Cortesa is as diverse as outdoor designs are. In many shades from homogeneous to slightly speckled - and always with a puristic, elegant look - the classic among the slabs for public spaces offeres a special variety of design options. Cortesa brings calm and elegance to exteriour design: The generous 80 x 40 size produces a homogeneous surface with a low proportion of joints. The very finely blasted surface with high-quality natural stone chippings has a natural, puristic and noble appearance. Cortesa is easy to maintain and has a high resistance to frost and de-icing salt. Its CleanTop surface protection CF 100 ensures greatly reduced dirt absorption with a permanently colour-finished surface, inhibits algae and moss formation and saves on the need for subsequent impregnation.
CleanTop® protection system with Clean Factor CF 100 (integral part of the production process):
Stufenplatte und Mauerabdeckung
All dimensions given are grid dimensions including spacers and joint proportion.
Bevel edge | ||
|---|---|---|
| Plansize | nominal size | DIN EN Classification |
| 40 x 40 x 4,2 | 400 x 400 x 42 | DIN EN 1339 PKDUI 4 |
| 60 x 30 x 4,2 | 600 x 300 x 42 | DIN EN 1339 PKDUI 3 |
| 80 x 40 x 4,2 * | 800 x 400 x 42 | DIN EN 1339 PKDUI 3 |
| 50 x 16 x 5 | 500 x 160 x 50 | DIN EN 1339 PKDUI 3 |
* Stock-run products.
Pattern 02
Central arrangement using 40 x 40 cm units.
Number of units per m²: approx. 6,3 units
Edging must be cut to size on site.
Pattern 06
Number of units per m²:
40 x 40 cm approx. 6,3 units
Pattern 15
Arrangement in rows using 60 x 30 cm units.
Number of units per m²: approx. 5.6 units.
Edge units must be cut to size on site.
Pattern 16
1/3 arrangement in rows using 60 x 30 cm units.
Number of units per m²: approx. 5.6 units.
Edge units must be cut to size on site.
Pattern 17
Number of units per m²:
60 x 30 cm: approx. 5,6 units
Pattern 18
Arrangement in rows alternating with 60 x 30 cm units and 40 x 40 cm units.
Edge units must be cut to size on site.
Pattern 19
Arrangement in rows using 60 x 30 cm units.
Borders of 40 x 40 cm units.
Edge units must be cut to size on site.
Pattern 20
Number of units per m²:
60 x 30 approx. 5.56 units
Edge units must be cut to size on site where necessary.
Pattern 08
Edge units: decor-triangles
Units per running meter: approx. 1,75 units
Area: 40 x 40 cm slabs
Units per m²: ca. 6,25 units
Pattern 01
Pattern 02
Pattern 03
The quantity of vertical bond depends on the structural situation.
Laying patterns and hatching are available on request.
