Soreno Schiefergrau
Soreno Slate grey

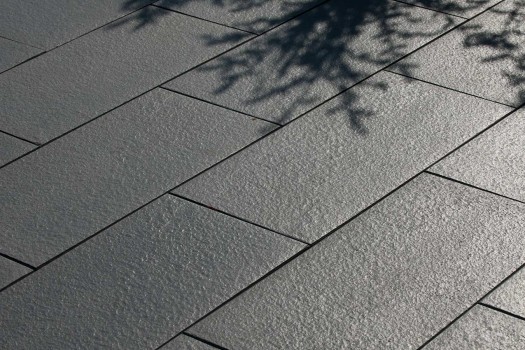

Soreno fascinates through its filigree structured surface of very fine-grained, precious natural stone chippings. The slabs are worked by a special, especially developed production process. The fine stone structure subtly emphasizes the nature oriented character of the slabs in every light. With its slim 2:1 rectangular size of 60 x 30 centimeters, the slab meets the current trend towards elegant and generous design. Soreno is well accessible and pleasant to walk on. The slab is manufactured with CleanTop® surface protection CF 100. Soreno was awarded with the iF product design award and nominated for the Design Award of the Federal Republic of Germany.

Designpreis DE 2012
IF Design Award 2011
Soreno
Colours
Properties
Standard sizes
Object sizes
Gallery
References
Laying pattern
Video
Downloads

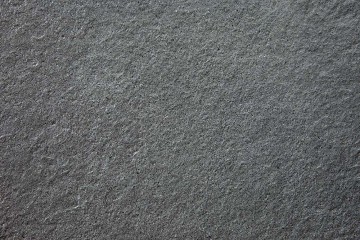

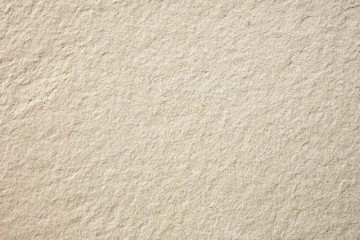

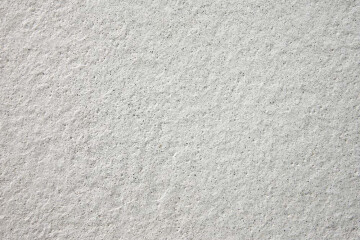

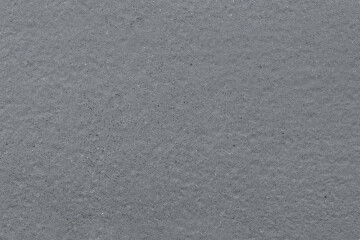

Colours

Properties

  • Gentle, smooth stone structure.
  • Chamfered edges
  • Non-slip and comfortably to walk on
  • Resistant to frost and de-icing salt

CLEANTOP®-TECHNOLOGY

CleanTop® protection system with Clean Factor CF 100 (integral part of the production process):

  • Signiticantly reduced dirt absorption.
  • Easier to clean compared to a product without CleanTop®.
  • Free from lime efflorescence.
  • Inhibits algae and moss.

CleanTop

Standard sizes

PAVING SYSTEMLENGTH
in cm
WIDTH
in cm
DEPTH
in cm
DINDEPTH


80 40 4,2 DIN EN 1339 PKDUI Eigenschaften
Steps 80 40 4,2 DIN EN 1339 PKDUI Eigenschaften

Object sizes

PlansizeNominal sizeDIN EN Classification
40 x 40 x 4,2 400 x 400 x 42 DIN EN 1339 4
60 x 30 x 4,2 600 x 300 x 42 DIN EN 1339 3
80 x 40 x 4,2 800 x 400 x 42 DIN EN 1339 3

50 x 16 x 5,0 500 x 160 x 50 DIN EN 1339 3

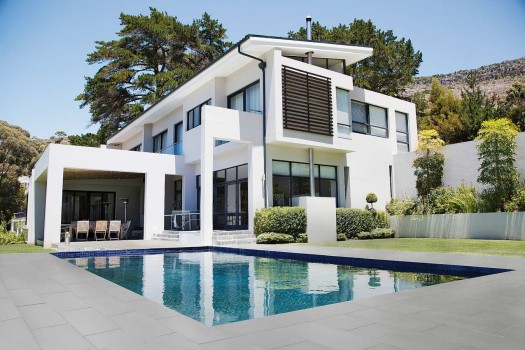

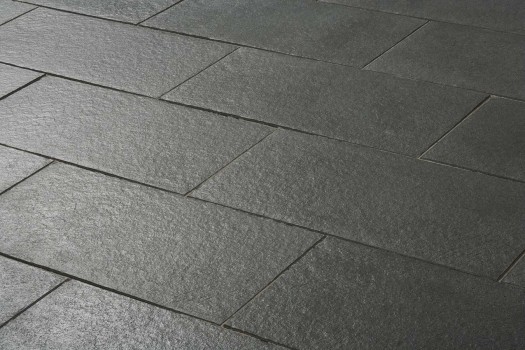

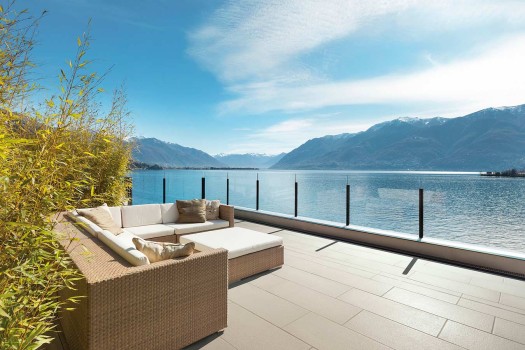

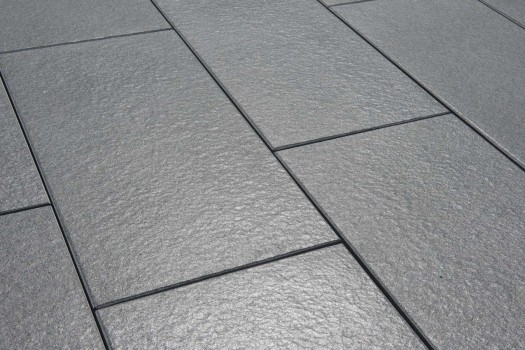

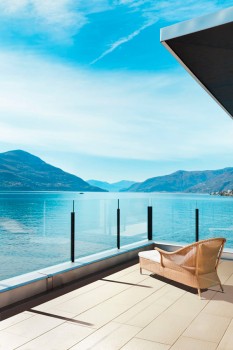

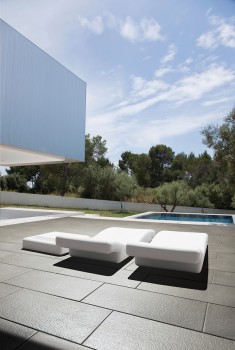

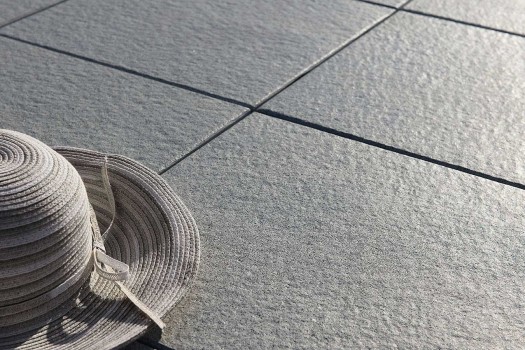

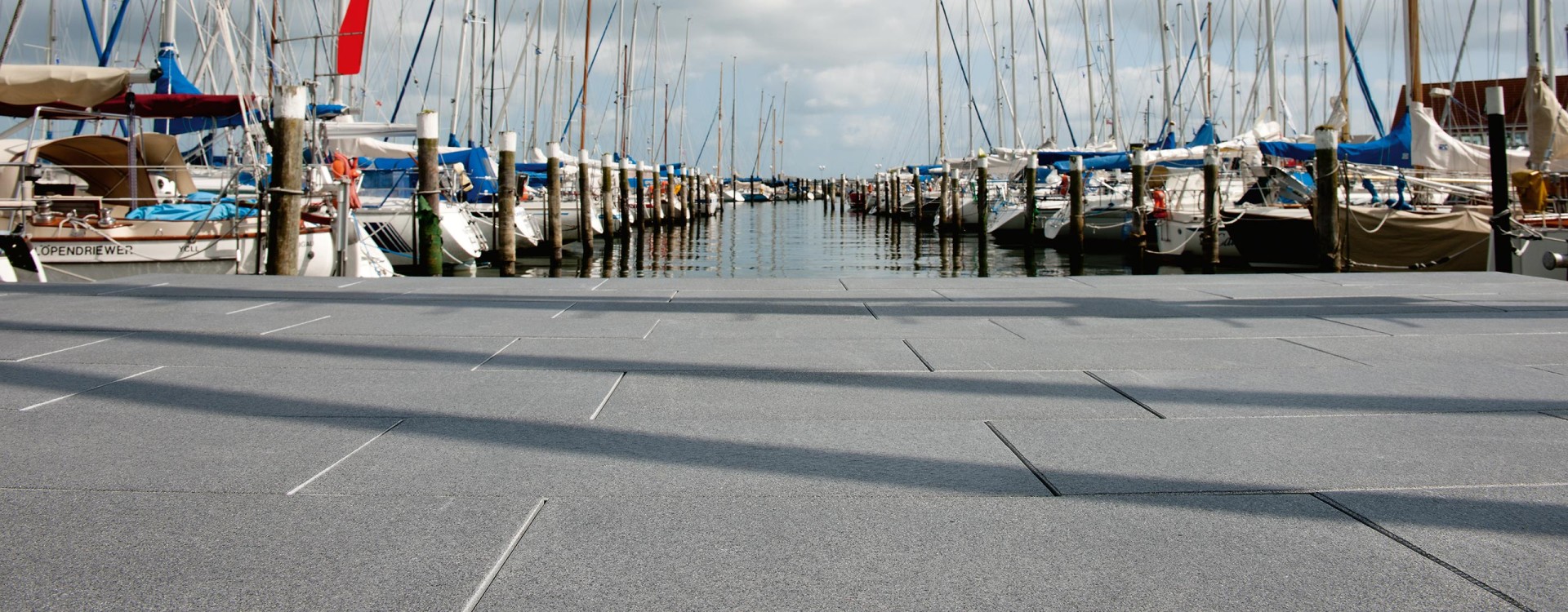

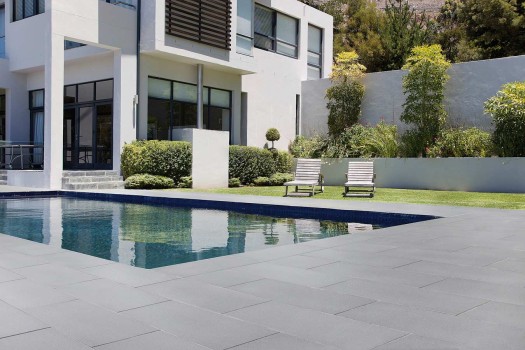

Gallery

Laying pattern calculator

Soreno Pattern 02
PATTERN 02
Soreno Pattern 02

Pattern 02

1/2 arrangement with slabs 40 x 40 cm.
Number of units per m²: approx. 6,3 units

Edge units must be cut to size on site.


units
Soreno Pattern 06
PATTERN 06
Soreno Pattern 06

Pattern 06

Number of units per m²:
40 x 40 cm approx. 6,3 units


units
Soreno Pattern 15
PATTERN 15
Soreno Pattern 15

Pattern 15

1/2 arrangement with 60 x 30 cm-pavers.
Number of units per m²: approx. 5.6 units.

Edge units must be cut to size on site.


units
Soreno Pattern 16
PATTERN 16
Soreno Pattern 16

Pattern 16

1/3 arrangement in rows with 60 x 30 cm-pavers.
Number of units per m²: approx. 5,6 units

Edge units must be cut to size on site.


units
Soreno Pattern 17
PATTERN 17
Soreno Pattern 17

Pattern 17

Arrangement in rows with slabs 60 x 30 cm.
Number of units per m²: approx. 5,6 units


units
Soreno Pattern 18
PATTERN 18
Soreno Pattern 18

Pattern 18

Arrangement in rows with 60 x 30 cm-slabs and 40 x 40 cm-pavers.

Edge units must be cut to size on site.

Soreno Pattern 19
PATTERN 19
Soreno Pattern 19

Pattern 19

1/2 arrangement in rows with 60 x 30 cm slabs.
Combined with 40 x 40 cm slabs.

Edge units must be cut to size on site.

Soreno Pattern 20
PATTERN 20
Soreno Pattern 20

Pattern 20

Number of units per m²:
60 x 30 approx. 5,6 units

Edge units must be cut to size on site where necessary.


units
Soreno Pattern 08
PATTERN 08
Soreno Pattern 08

Pattern 08

Edge units: decor-triangles
Units per running meter: approx. 1,75 units
Area: 40 x 40 cm slabs
Units per m²: ca. 6,25 units


units
rm
units

The quantity of vertical bond depends on the structural situation.
Laying patterns and hatching are available on request.
