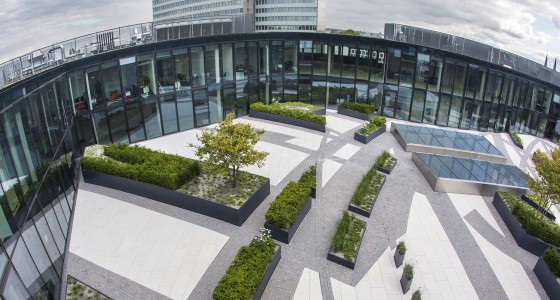

Kö-Bogen, Düsseldorf
Conceo

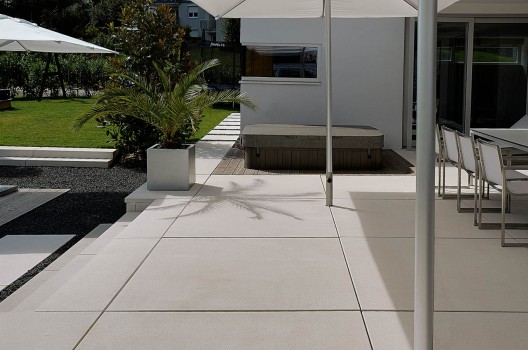

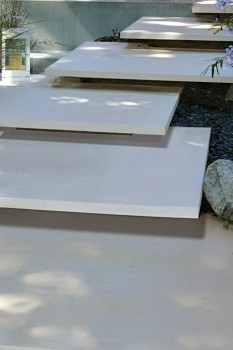

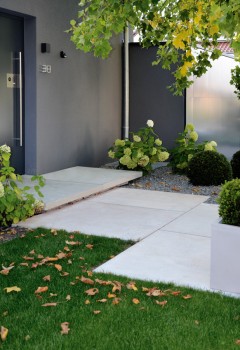

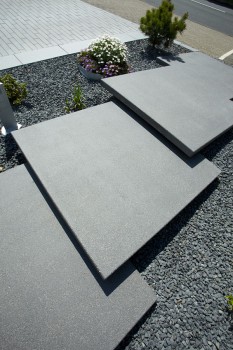

Conceo defines areas in a new dimension. This high performance concrete slab with sizes up to 150 x 150 cm allows completely new design possibilities for squares, terraces, stairs and paths. Areas seem to be more spacious and generous; the proportion of joints is significantly reduced. One single size allows designing paths of a piece. Laid in different levels, Conceo elements add up to stairs that seem to float. The very well accessible large-sized slabs are available in two different kind of surfaces, every in two color-shades: With a puristic, elegant, smooth surface in the colors Alpine white or Meteorite anthracite and alternatively with a finely blasted surface with natural stone chippings in the colors granite or anthracite. Conceo slabs are available in the three sizes:150 x 150 cm, 150 x 75 cm and 75 x 75 cm; for designers and architects, any customized size is available on request.
Colours

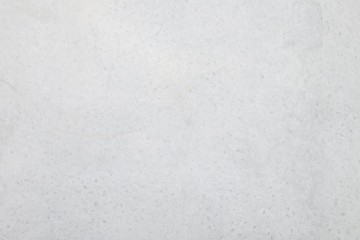

Exposed concrete, grey, smooth
Alpine white velvety®
CD 5001 Light Granite blasted
CD 7201 blasted
CD 2701 blasted
CD 2001 blasted
Exposed concrete grey
CD 2407 velvety®
CD 2007 velvety®
CD 2207 velvety®
CD 2107 velvety®
CD 1507 Diamantgrey
CD 0101 Anthracite Blasted
CD 1001 blasted
CD 3501 blasted
CD 0107 Meteor anthracite, velvety®
CD 0109 Saphitantracite
CD 7001 blasted
CD 7007 velvety®
CD 9001 blasted

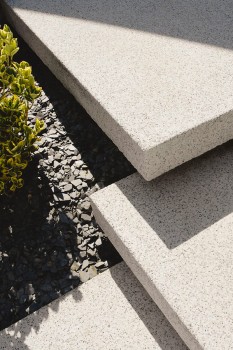

According to the special characteristis of the heavy-duty concrete surface the thickness of the stone is reduced up to 5 cm. (not available as step tread).
The dimensions are: 150 x 150 x 5, 150 x 75 x 5 und 75 x 75 x 5 cm.
Properties
- Large-sized slab system with high-class viewing surface through the use of natural stone chippings in combination with a specially developed blasting process in a vast range of colors (blasted and velvety)
- Very fine and dense high performance concrete surface, velvety or acidified. The special surface treatment creates velvety and elegant concrete surfaces

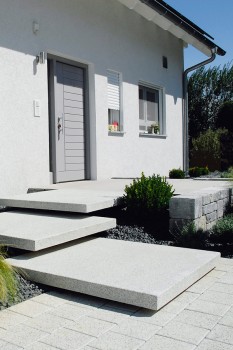

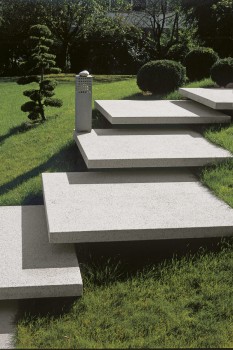

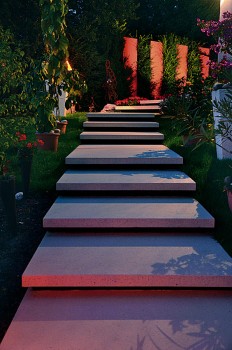

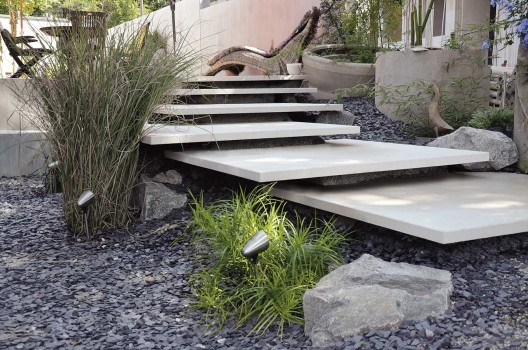

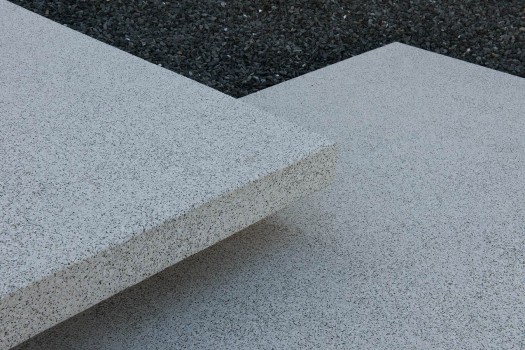

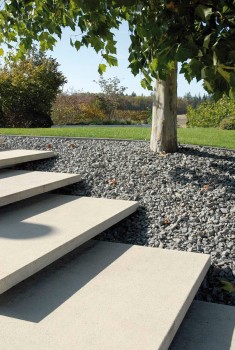

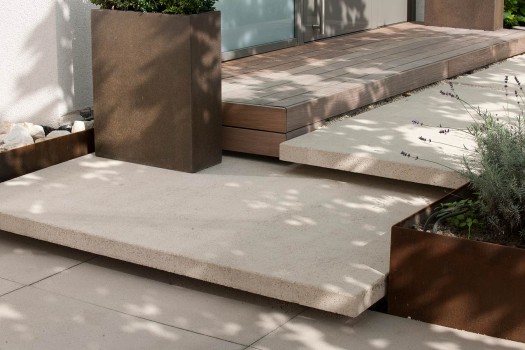

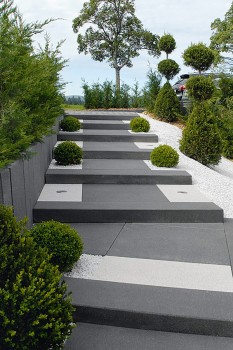

- The large-sized Conceo slabs in 8 cm thickness are also available as self-supporting slab tread with machine exposed edges. Perfect for designing innovative stair solutions

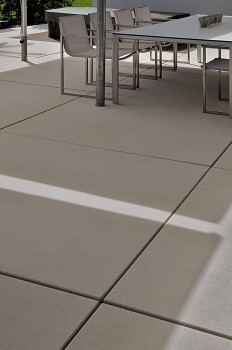

- Narrow joints in the surface due to the large sizes
- Blasted, acidified and velvety surfaces are non-slip
Gallery
Expand GalleryCollapse Gallery
Standard sizes
| SLABS | LENGHT in cm | WIDTH in cm | DEPTH in cm | DIN | UTILIZATION |
|---|---|---|---|---|---|
|
|
75 | 75 | 8 | DIN 1045/EN 206 |  |
|
|
120 | 120 | 8 | DIN 1045/EN 206 | |
|
|
150 | 75 | 8 | DIN 1045/EN 206 | |
|
|
150 | 150 | 8 | DIN 1045/EN 206 |
Object sizes
With bevel edge: | ||
|---|---|---|
| Plansize | Nominal size | DIN EN Classification |
| 75 x 75 x 8,0 | 745 x 745 x 80 | DIN 1045/EN 206 |
| 150 x 75 x 8,0 | 1495 x 745 x 80 | DIN 1045/EN 206 |
| 150 x 150 x 8,0 | 1495 x 1495 x 80 | DIN 1045/EN 206 |
Conceo is also available in contract manufacturing in any size up to max. 250 x 350 cm.
Laying pattern calculator
PATTERN 01
Pattern 01
Number of units per m²:
150 x 75 cm approx. 0,89 units
PATTERN 02
Pattern 02
Number of units per m²:
150 x 150 cm approx. 0,44 units
PATTERN 03
Pattern 03
Formats
150 x 150 cm
150 x 75 cm
75 x 75 cm
The quantity of vertical bond depends on the structural situation.
Laying patterns and hatching are available on request.

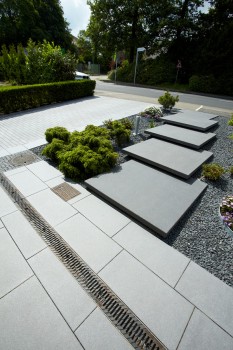

References

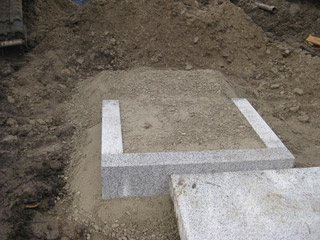

Building instructions for a self-supporting step system
Building instructions for a self-supporting step system with Conceo steps
The Conceo step tread for self-supporting are available in the standard dimensions 75 x 75 x 8 , 150 x 75 x 8 en 150 x 150 x 8 cm and in other special dimensions on request.
The Conceo step tread are suitable for completely covering in a mortar bed. The steps may have an overhang of maximum 30% of their length resp. width on one or two sides of the foundation. The standard slabs are not suitable for a self-supporting installation on laterally stair strings. The adjuster of the Conceo step tread are machined all-over. Because of aesthetic reasons, the controller of the foundation should be painted dark. Resulting to the shadow effect, they are no longer noticeable.

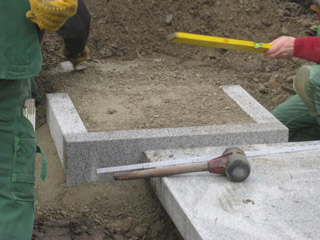

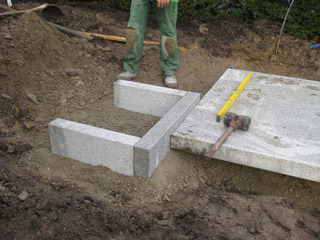

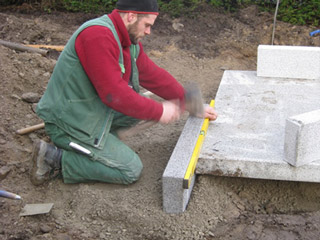

The foundation of the Conceo step tread is carried out in a similar manner as a standard step tread. But the covering of the step tread may occur to a completely mortaring.To avoid tensions as a result of different shrinking of foundation and step tread, the substructure should be dried as possible.
For glueing the surface of the foundation and the bottom of the Conceo step a "Primer"is to be needed. We recommend a frost-resistant flexible mortar. For a better adhension the backsides of the step treads are roughened. The layering on footfall sound isolation or other films is not allowed.
For a quicker drainage of the surface, a down grade of 1% is to be provided.
For laying of the Conceo step treads wee recommend use of vacuum laying equipment. The weight of the slabs is addicted to the size, it is from 281 kg up to 551 kg (180 kg / m²) per item. The stairway can be walked-on after curing of the mortar.
Please ask for special solutions, for example slabs with notches, slabs in special dimensions, step systems with large overhangs, slabs with components for an electrical system or slabs with floorboards.
