EcoTerra technology

The best way to achieve more sustainability is to use less cement.
A centuries-old recipe – reinvented in 7 years.

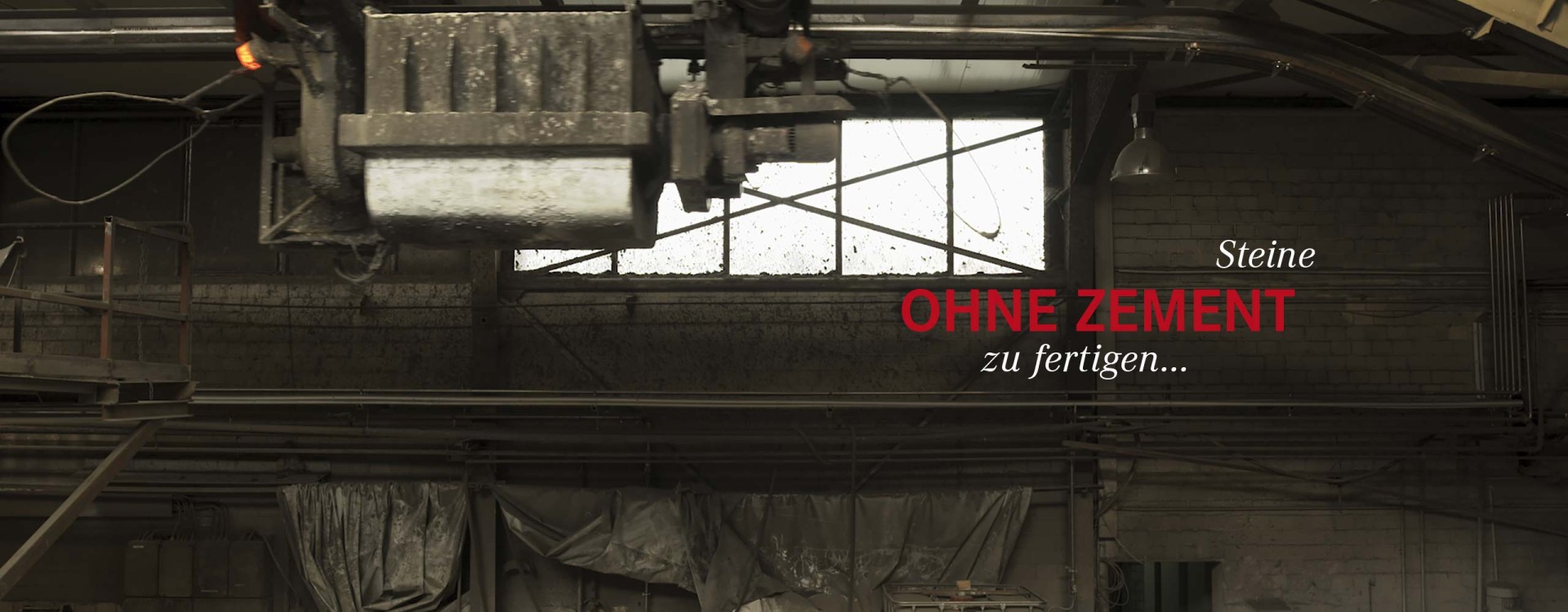

At the beginning, the surface without cement was just an idea. The basic recipe for concrete has always consisted of cement, water, sand and gravel. Through extensive development work over many years, METTEN has turned the idea into a unique technology and applied for a patent that will change the concrete block.

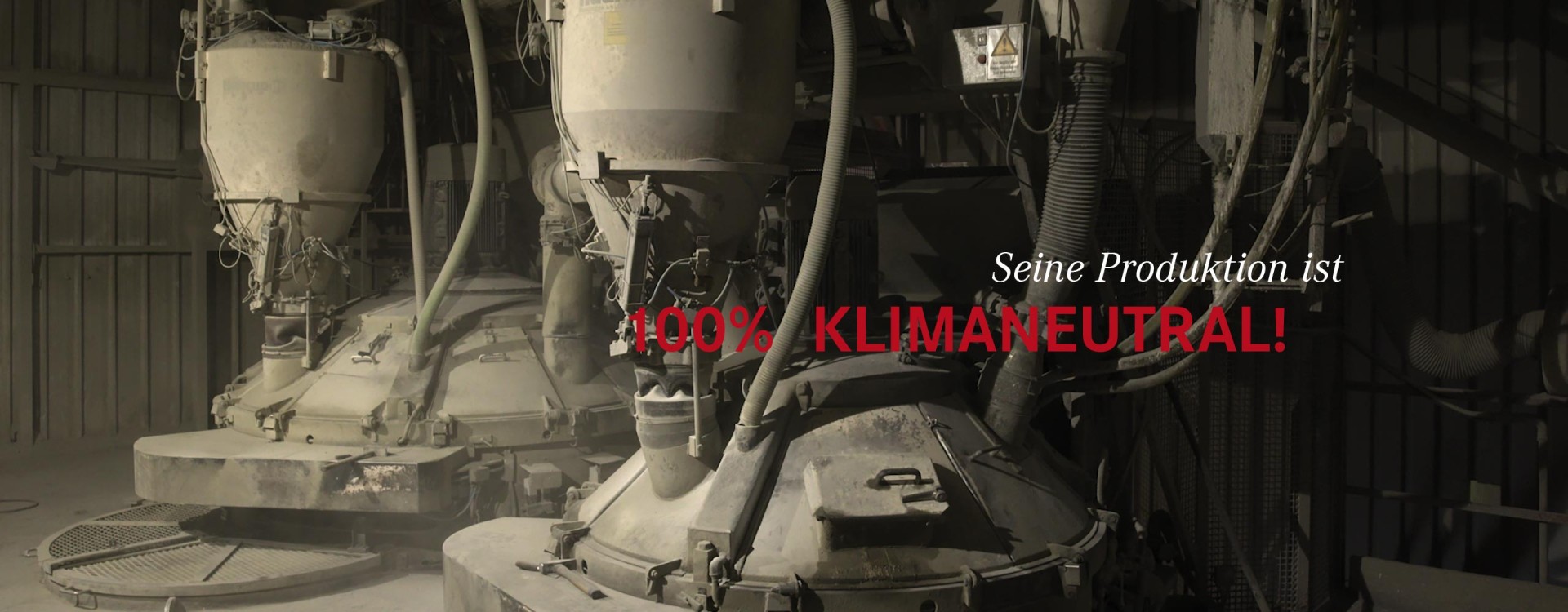

The production of cement is very energy-intensive. The less we need of it, the more climate-friendly become our stones. Without using cement in the facing layer, the carbon footprint of a paving stone with EcoTerra-technology improves by impressing 15 % per square meter. The use of recycled raw materials and climate-neutral production make the carbon footprint even better.

EcoTerra Logo

EcoTerra-technology
الألوان
الخصائص
الأحجام القياسية
أحجام المواد
المعرض
Editions
CDFarben
المراجع
Laying pattern calculator
Verlegehinweise
Downloads
Links
Dealers

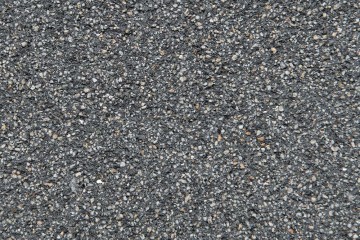

الألوان

الخصائص

  • • سطح مخملي®

Blue Air® Technology

(optional)

- تتفق عملية التحفيز الضوئي مع مثالية الطبيعة.
- تحويل أكاسيد النيتروجين إلى نترات تحت تأثير ضوء الشمس.
- تم اختبار تأثير التحفيز الضوئي بواسطة معاهد بحث ذائعة الصيت.

أحجام المواد

بدون حافة مشطوبة

حجم عاديحجم أساسيDIN EN Classification
80 x 40 x 5 796 x 396 x 50DIN EN 1339 PKDUI 3

37,5 x 25 x 8 371 x 246 x 80DIN EN 1339 PKDUI 14
50 x 25 x 8 496 x 246 x 80DIN EN 1339 PKDUI 11
80 x 40 x 8 796 x 396 x 80DIN EN 1339 PKDUI 11
80 x 80 x 8 796 x 796 x 80DIN EN 1339 PKDUI 14

30 x 15 x 12 294,5 x 144,5 x 120DIN EN 1338 KDI
40 x 20 x 12 394,5 x 194,5 x 120DIN EN 1338 KDI
50 x 25 x 12 494,5 x 244,5 x 120DIN EN 1339 PKDUI 30


Pavers

Corio Kombiform v1
Banenverband 8 cm*
permeable to water

Banenverband 8 cm wordt enkel per laag geleverd.
In een laag zijn aanwezig
2 stuks 40 x 16 x 8 cm, DIN EN 1339 PKDUI
2 stuks 35 x 16 x 8 cm, DIN EN 1339 PKDUI
6 stuks 30 x 16 x 8 cm, DIN EN 1338 KDI
6 stuks 25 x 16 x 8 cm, DIN EN 1338 KDI
6 stuks 35 x 12 x 8 cm, DIN EN 1339 PKDUI
6 stuks 25 x 12 x 8 cm, DIN EN 1338 KDI
1 laag = 1,20m2

Corio Kombiform v1
Banenverband 10 cm
permeable to water

Banenverband 10 cm wordt per laag geleverd.
In een laag zijn aanwezig
2 stuks 40 x 16 x 10 cm, DIN EN 1338 KDI
2 stuks 35 x 16 x 10 cm, DIN EN 1338 KDI
6 stuks 30 x 16 x 10 cm, DIN EN 1338 KDI
6 stuks 25 x 16 x 10 cm, DIN EN 1338 KDI
6 stuks 35 x 12 x 10 cm, DIN EN 1338 KDI
6 stuks 25 x 12 x 10 cm, DIN EN 1338 KDI
1 laag = 1,20m2
